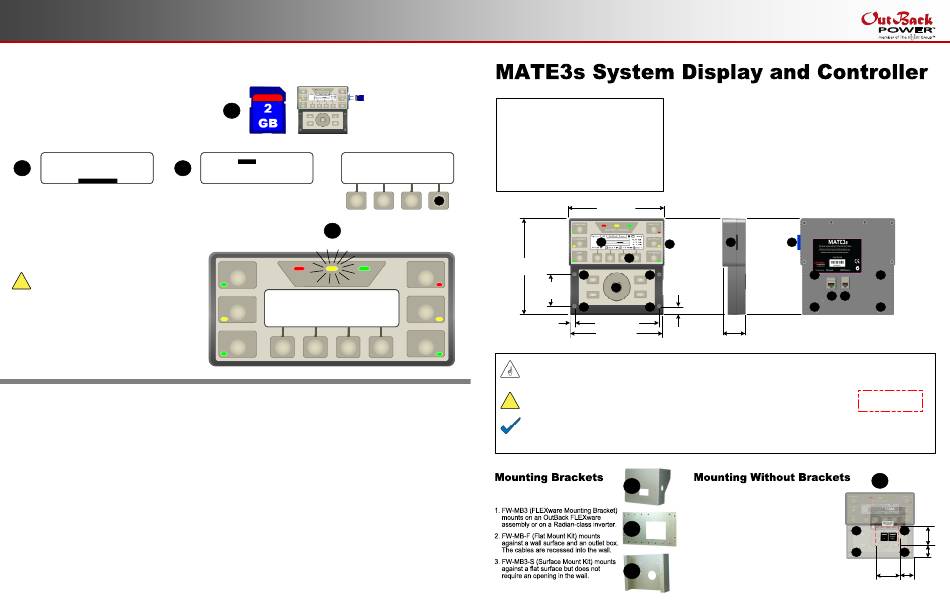

OutBack Power MATE3s Overview Manual

System display and controller

Advertisement

Firmware Updates
(continued from last page of this document)
NOTE: These instructions require knowledge of menu navigation in password-secured MATE3s menus. For information on
advanced navigation and locating the required menus, see the MATE3s Programming Guide.
To upload firmware to the MATE3s:
1. Insert the SD card into the MATE3s (A).
2. In Main Menu under Firmware Update (B),
select MATE3s (C). Press <Update> (D).
Main Menu
Settings
>>
B
C
Configuration Wizard
>>
Device Data Logs
>>
Event Logs
>>
Firmware Update
Firmware Update
>>
3. The screen will show updates for several minutes
with the BATTERY STATUS yellow LED indicator
flashing rapidly (E). Revision is complete when the
home screen reappears.
CAUTION: EQUIPMENT DAMAGE
!
Do not disconnect the MATE3s or otherwise stop the
upload before completion. Any interruption could
permanently corrupt the MATE3s.
Contact Information
Mailing Address:
Corporate Headquarters
th
17825 - 59
Avenue NE
Suite B
Arlington, WA 98223 USA
Web Site:
www.outbackpower.com
Warranty Summary
OutBack Power Technologies warrants that the products it manufactures will be free from defects in materials and workmanship for a period of
five (5) years subject to the conditions set forth in the warranty detail, found in the product manual.
OutBack Power Technologies cannot be responsible for system failure, damages, or injury resulting from improper installation of their products.
Notice of Copyright
MATE3s System Display and Controller Overview Guide © 2017 by OutBack Power Technologies. All Rights Reserved.
Date and Revision
March 2017, Revision A
A
Firmware Update
MATE3s Firmware Update
MATE3
>>
FX Inverter NA
>>
New Version 001.001.xxx
GS Inverter
>>
FLEXmax Charge Controller >>
Back
E
INVERTER
BATTERY STATUS
Updating Ethernet Processor
CHARGER
Important
Don't unplug or reset until screen
has refreshed!
GEN
European Office
Hansastrasse 8
D-91126
Schwabach, Germany
Overview Guide
Contents:
Installation...................................... 1-2
LED Indicators................................. 3-5
Home Screens................................. 5-7
Soft Keys........................................ 7-14
Hot Keys....................................... 15-18
Firmware Updates........................... 19-20
Update
D
7 1/8"
EVENTS
(17.9 cm)
F
2 3/8"
(6.0 cm)
AC INPUT
F
5/16" (0.79 cm)
FAVORITE
IMPORTANT
Signal degradation can result if cable is run in conduit with AC wiring or in other electrically "noisy" environments; these can affect
the maximum length the cable can run without incurring transmission errors.
CAUTION: EQUIPMENT DAMAGE
!
The MATE3s is intended for indoor installations only.
NOTES
The MATE3s voltage is less than 30 Vdc and is thus considered a "limited energy" circuit normally requiring no conduit.

CAT5 cable is not as strong as house wiring and must be handled carefully. Avoid kinking the cable or tearing its outer sheathing.

Use plastic standoff cable staples, J-hooks, or cable trays to support long runs of CAT5 cable. Do not splice cables.

Items 1, 2, and 3 are the MATE3s
mounting options from OutBack.
Features
A: LCD display screen
B: Soft keys
C: Hot keys
D: SD card slot
NOTE: This document assumes knowledge of features, functions, and operation
of other OutBack products. Consult appropriate literature as necessary.
7 1/2" (19 cm)
A
D
C
B
F
9/16"
E
(1.4 cm)
F
6 5/8" (16.8 cm)
7 ¼" (18.4 cm)
1 5/8" (4.2 cm)
1
Item 4 is a semi-transparent front view which
also shows the ports and other back features.
To mount the MATE3s on the wall
without the accessory brackets:
2
1. Cut a hole in the surface at the location and
size shown in 4. This allows room for the
CAT5 cables to protrude through the wall.
2. Place the MATE3s on the wall with the cables
inside the hole. Mark the mounting holes (F)
3
by pushing a long nail into the mounting holes
and putting a leader hole in the wall surface.
NOTE: Do not use a nail that is larger than
the mounting screws.
E: Navigation keys
F: Mounting Holes
G: Ethernet port
H: HUB Communications Manager port
D
F
F
G
H
F
F
IMPORTANT:
Not intended for use with
life support equipment.
4
1 ½"
(3.8 cm)
F
F
F
F
1 3/8"
(3.5 cm)
2"
(5.1 cm)
1 5/8"
(4.1 cm)
