Removing Chassis Screws

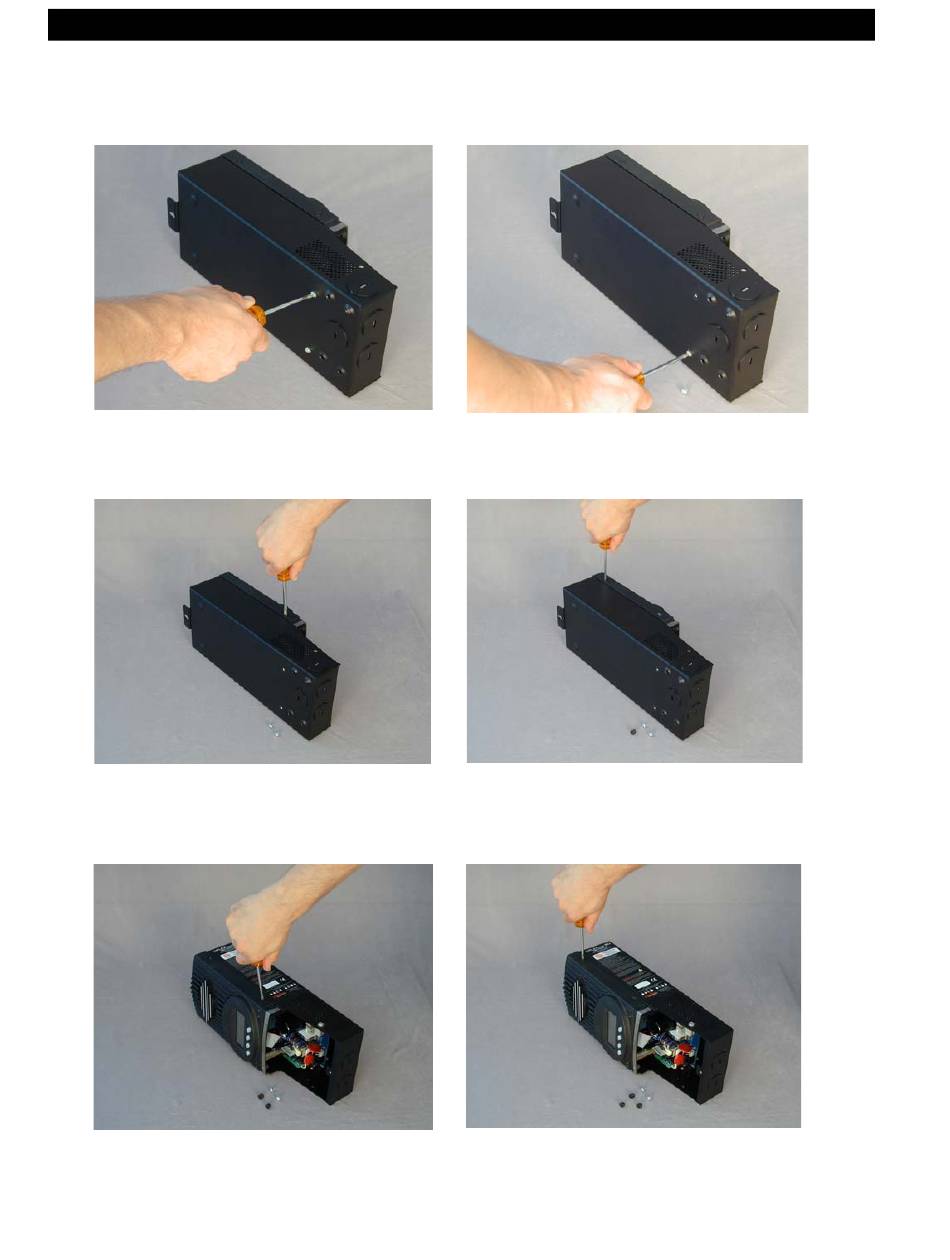

1. Set the unit on its side to remove the two back screws. Keep the screws and star washers together.
Figure 5 Back Screw Removal
2. With the unit still on its side, remove two side screws.
Figure 6 Side Screw Removal (part 1)
3. Set the unit on its other side and remove the two remaining screws.
Figure 7 Side Screw Removal (part 2)
The heat sink can now be removed from the chassis.
