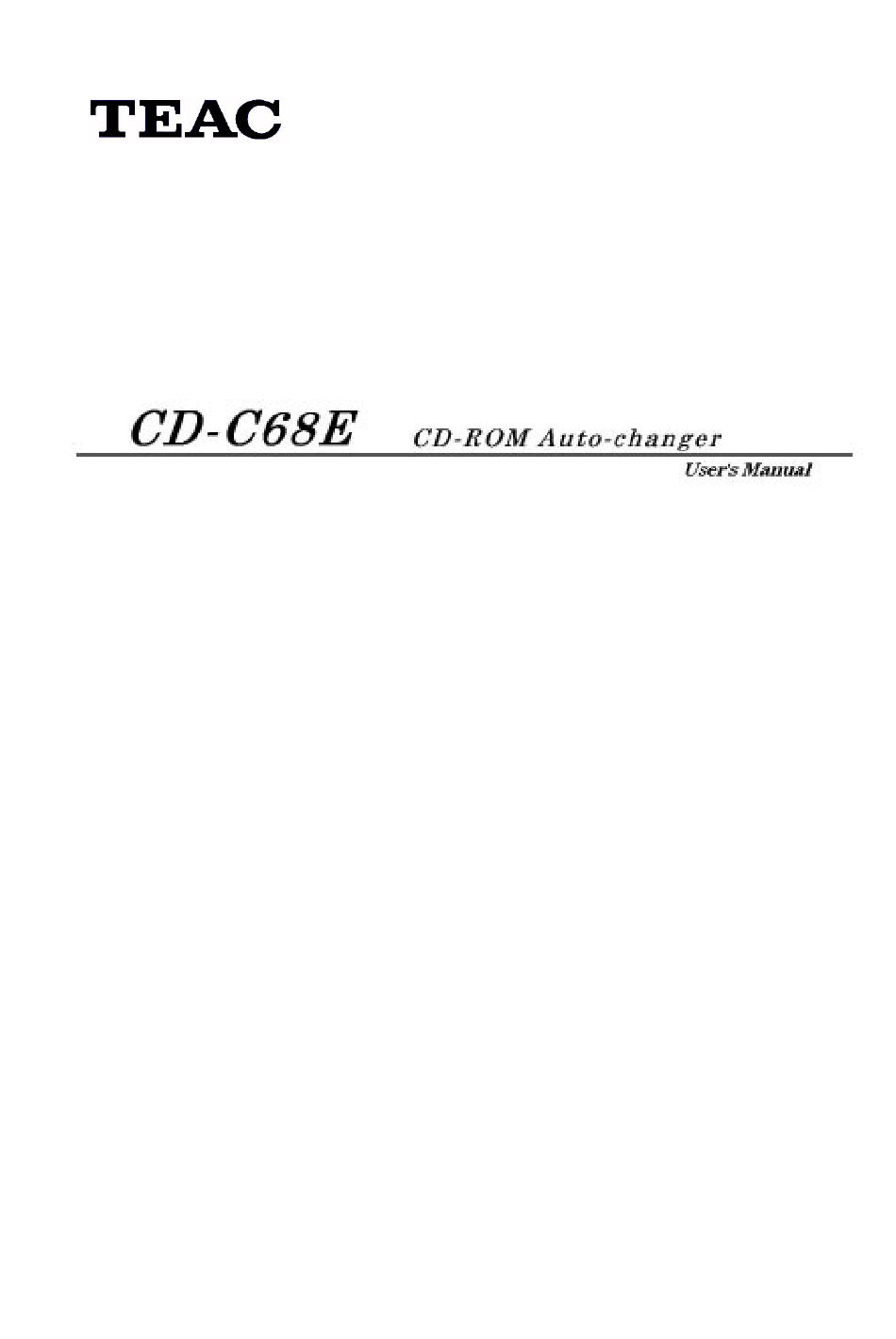

Teac CD-C68E User Manual

Cd-rom auto changer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Teac CD-C68E

Summary of Contents for Teac CD-C68E

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TO THE USER ..........................3 INTRODUCTION ......................... 4 1. CONTROLS AND FUNCTIONS ................... 5 1.1 Front Panel ........................5 1.2 Rear Panel ......................... 7 2. CONNECTION TO A PERSONAL COMPUTER ..............9 2.1 Drive Installation Directions ................... 9 2.2 Installation and Connection to Your Personal Computer ..........

  • Page 3: To The User

    (c) Plug the equipment into a different outlet so that it is not on the same circuit as the receiver. If necessary, consult the dealer or an experienced radio/TV technician for additional suggestions. CAUTION Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance could void the user…Hs authority to operate this equipment.

  • Page 4: Introduction

    INTRODUCTION (1) System requirements (a)IBM computer with Pentium 75MHz or better processor or IBM compatible computer. (b)16MB or more memory space. (c)Hard disk drive with an access time of 12msec or less. (d)Microsoft Windows95 or Windows version 3.1. (e)IDE interface...

  • Page 5: Controls And Functions

    1. CONTROLS AND FUNCTIONS 1.1 Front Panel 1.Shutter The shutter opens and closes in interlocked movement of the disc during loading and unloading. Do not open or close the dust door directly with your fingers. Doing so may cause damage or operational failure.
  • Page 6 5.Eject Buttons Six buttons, one for each slot, offer the following functions: (a) When pressing a button and releasing it within less than 1 second, the disc in the corresponding slot is ejected. (b) When holding a button for 1 second or more, audio playback starts, provided that a disc is previously loaded in the corresponding slot.

  • Page 7: Rear Panel

    1.2 Rear Panel 1.Audio output connector For stereo audio signal output. When driving external speakers, connect this connector to the audio input connector on the Sound Card or interface Card. Note : Mating connectors : Molex 70066 “C” or “G” or equivalent. 2.Device configuration jumper Selects the IDE CD-ROM’s Master, Slave or CSEL settings.
  • Page 8 3. Interface connector Connect to the interface or IDE interface card using the 40-pin flat cable. Cable-side mating connectors : 5320-40AGS1 Molex, or equivalent. 4. Power connector Connect to the +5 V and +12 VDC power source. Cable-side mating housing : 8981-4P Molex Cable-side mating terminal : 8980-3L Molex 5.

  • Page 9: Connection To A Personal Computer

    2. CONNECTION TO A PERSONAL COMPUTER 2.1 Drive Installation Directions Install the CD-C68E into the personal computer horizontally so that the eject button is at right. 2.2 Installation and Connection to Your Personal Computer (1) Switch OFF the personal computer and remove the blank panel fitted to the front of the 5.25-inch slot, then secure the CD-C68E using the provided screws.
  • Page 10 (2) Connect the power cable, the IDE interface cable and the audio cable to the CD-C68E, respectively. Note: The interface connector and audio connector are polarized. Be sure Pin 1 on all cable connectors match with drive connectors.

  • Page 11: Connection To Audio Equipment

    3. CONNECTION TO AUDIO EQUIPMENT Line-level audio signals are available at the headphone jack on the CD-C68E or at the audio output on the rear by using a Sound Card. Note: When using the IDE interface card or a sound card, read their manual before connection and follow...

  • Page 12: Software Installation

    4. SOFTWARE INSTALLATION 4.1 Device Driver For the CD-C68E to operate, you have to install the device driver in your personal computer. Follow the following instructions depending on OSs in use. (1) DOS/Windows 3.1 Run the INSTALL.EXE file contained in the TEAC CD-ROM Changer Installation Disk for DOS- Windows 3.1 in DOS.

  • Page 13: Cd-Player

    3.1. Windows will automatically start and the setup screen will appear ; then, follow the instructions on the screen. (b) Functions The TEAC CDP is operated by clicking the desired button on the screen by mouse control. The buttons offer the following functions: POWER : Ends the application TEAC CDP.
  • Page 14 For the details, see the sound card’s manual. (2) Windows 95 (CDP95) (a) Installation Run the SETUP.EXE file contained in the TEAC CD-ROM Changer Installation Disk for Windows 95/NT. The setup screen will appear; then, follow the instructions on the screen. (b) Functions The TEAC CDP95 is operated by clicking buttons on the screen by mouse control.

  • Page 15: Disc Change Utility

    CS is a utility that is executed when you respond to the DOS command prompt, the DOS that comes with the CD-C68E, and it offers the following functions in regard to the discs corresponding to slot numbers 1 to 6 (the numbers marked on the front bezel): 1.
  • Page 16 Your “Memo” reappears when starting the utility the next time. Note: When connecting multiple CD-ROM drives and CD-ROM Changer drives, you can use up to 24 drive letters. If you are not using the TEAC drives and device drivers, we cannot guarantee the correct functions.
  • Page 17 < In Single Drive Letter mode > The disc corresponding to the selected slot number is assigned to the current drive letter. CD Player or Auto run is automatically executed just after selecting a music CD or a disc containing Auto run, respectively. A “v”...

  • Page 18: Changer Assistance Utility

    Click the “Apply” button to execute changes.Click “Cancel” if you don’t want to apply the changes. Changes take effect when the system is restarted. Note: If the device driver Teacidec.mpd does not exist in C:\TEAC\SINGLE or C:\TEAC\MULTI directory, the dialog box for specifying the file will open. Specify the directory path for the directory in...
  • Page 19 (6) Buttons functions “OK” button Applies each setting and quits the utility. When restart is required, the restart dialog box opens after you click this button. Each setting (except Auto Run) takes effect after the system has been restarted. To restart the system, select “Yes”. To continue, select “No”. “Apply”...

  • Page 20: Multiple Drive Letter Mode And Single Drive Letter Mode

    In this mode a drive letter is assigned to a drive, not to a slot as in the Multiple Drive Letter mode. In other words all the slots have one and the same drive letter; so, with the CD-C68E, accessing a specific slot is achieved by changing the current slot by pressing the desired slot button more than 1 seconds, or by using the Disc Change Utility.

  • Page 21: Notes When Using

    However, with some CDs - especially music CDs - are used, the disc may be switched unnecessarily. To prevent this, the auto settings are automatically disabled when the TEAC device driver is installed in the multi-drive mode. To enable these functions, use the Changer Assistance Utility.

  • Page 22: Strap Switch

    (7) Drive Space (compression drive) When the hard disk is compressed with of Windows95’s Drive Space, a host drive is made. Because of this host drive, there may no be enough drive letters to assign to the changer drive. The drive letter assigned to the host drive is normally H:. For example, when Slot 1 in the changer drive is D: and the drive letter of the host drive is H:, each drive letter of the slots becomes D:, E:, F: , G: and I: respectively.

  • Page 23: Specification

    6. SPECIFICATION...
  • Page 24 TEAC CORPORATION CD-C68E Document Ver. 1.0a 97/02/20...
