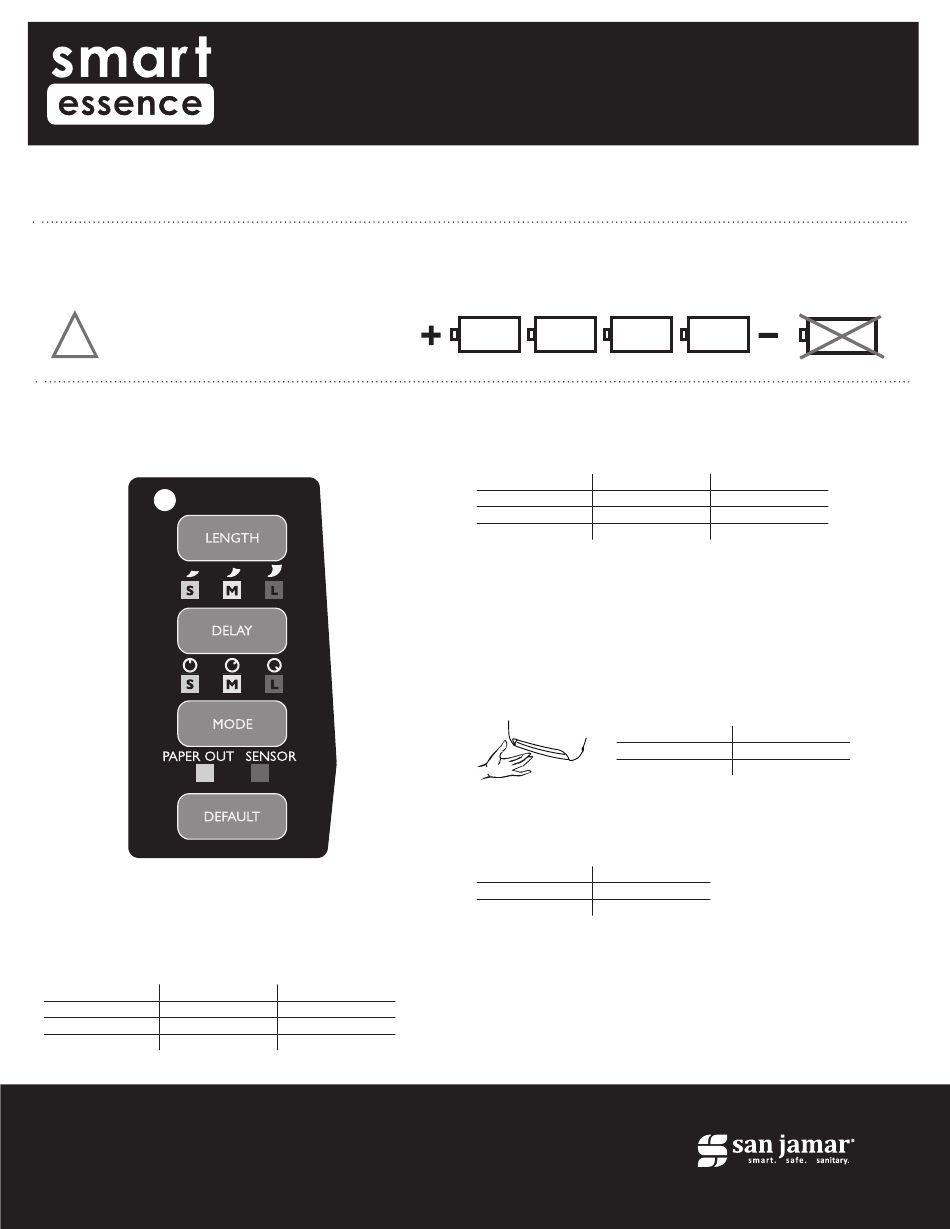

San Jamar Smart Essence T8400TBK Mounting Instructions

Battery Loading
Load 4 D-cell Alkaline batteries as shown below. Batteries must be loaded in correct orientation, with positive end towards the left. If batteries are not loaded correctly, unit will
not function.
WARNING: BATTERIES MUST BE INSERTED CORRECTLY
WARNING: BATTERIES MUST BE INSERTED CORRECTLY
Do not use re-chargeable or NiCad batteries
! !
DO NOT USE RECHARGEABLE OR NICAD BATTERIES AS THESE DO NOT USE RECHARGEABLE OR NICAD BATTERIES AS THESE
MAY CAUSE DAMAGE TO YOUR DISPENSER OR PERSONAL INJURY.
MAY CAUSE DAMAGE TO YOUR DISPENSER OR PERSONAL INJURY. in this dispenser as it will cause damage.
You must replace all batteries with 4 NEW D-Cell Alkaline batteries.
You must replace all batteries with 4 NEW D-Cell Alkaline batteries.

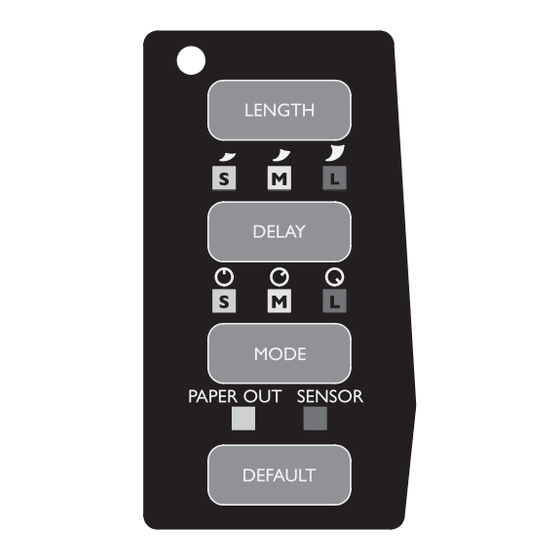

Adjusting Settings
Length
Towel length can be adjusted by pressing top button.
Press button to corresponding color to change paper length.
INDICATOR LENGTH
Short (S) 8" (20cm)
Medium (M) 12" (30cm)
Long (L) 16" (40cm)
San Jamar
555 Koopman Lane
Elkhorn, Wisconsin 53121
USA USA
T:+1.262.723.6133
F:+1.262.723.4204
info@sanjamar.com
www.sanjamar.com
ELECTRONIC ROLL TOWEL DISPENSER
Mounting Instructions
LED COLOR
Green
Yellow
Red
San Jamar Canada San Jamar Europe
3300 Bloor Street West Schoorstraat 26a, bus 1
Center Tower, 11th Floor 2220 Heist op-den Berg
Suite 3140 Toronto, ON BELGIUM
M8X 2X3 T: +32 1522 8140
CANADA F: +32 1522 8148
T:+1.416.760.7367 emea@sanjamar.com
F: +1.416.207.2071
canada@sanjamar.com
Refer to separate mounting instruction sheet.
D-CELL D-CELL D-CELL D-CELL D-CELL
ALKALINE ALKALINE ALKALINE
ALKALINE ALKALINE
Delay
The delay between dispensing can be adjusted by pressing the 2nd button.
Press button to corresponding color to change paper delay.
INDICATOR
Short (S)
Medium (M)
Long (L)
Mode
The Sensor Essence can be set in one of two operating modes.
1. SENSOR MODE- upon closing the cover after inserting batteries, one sheet of
paper will automatically dispense. After that initial sheet is torn, the dispenser will be
in sensor mode, waiting for a hand to be placed underneath before it dispenses paper.
2. TOWEL OUT MODE- when in this mode, paper is always available with no wait
time in between dispensing of next sheet of paper. Once the exposed sheet of paper
is torn, the next sheet of paper automatically dispenses.
Default
Pressing this button will change settings to factory default setting as indicated by red light.
LENGTH
Delay
Mode
Problems
Typical problems can be solved by opening and closing cover. If that fails to
resolve problem, try removing and then reinserting the batteries. If that fails,
try replacing with new batteries.
