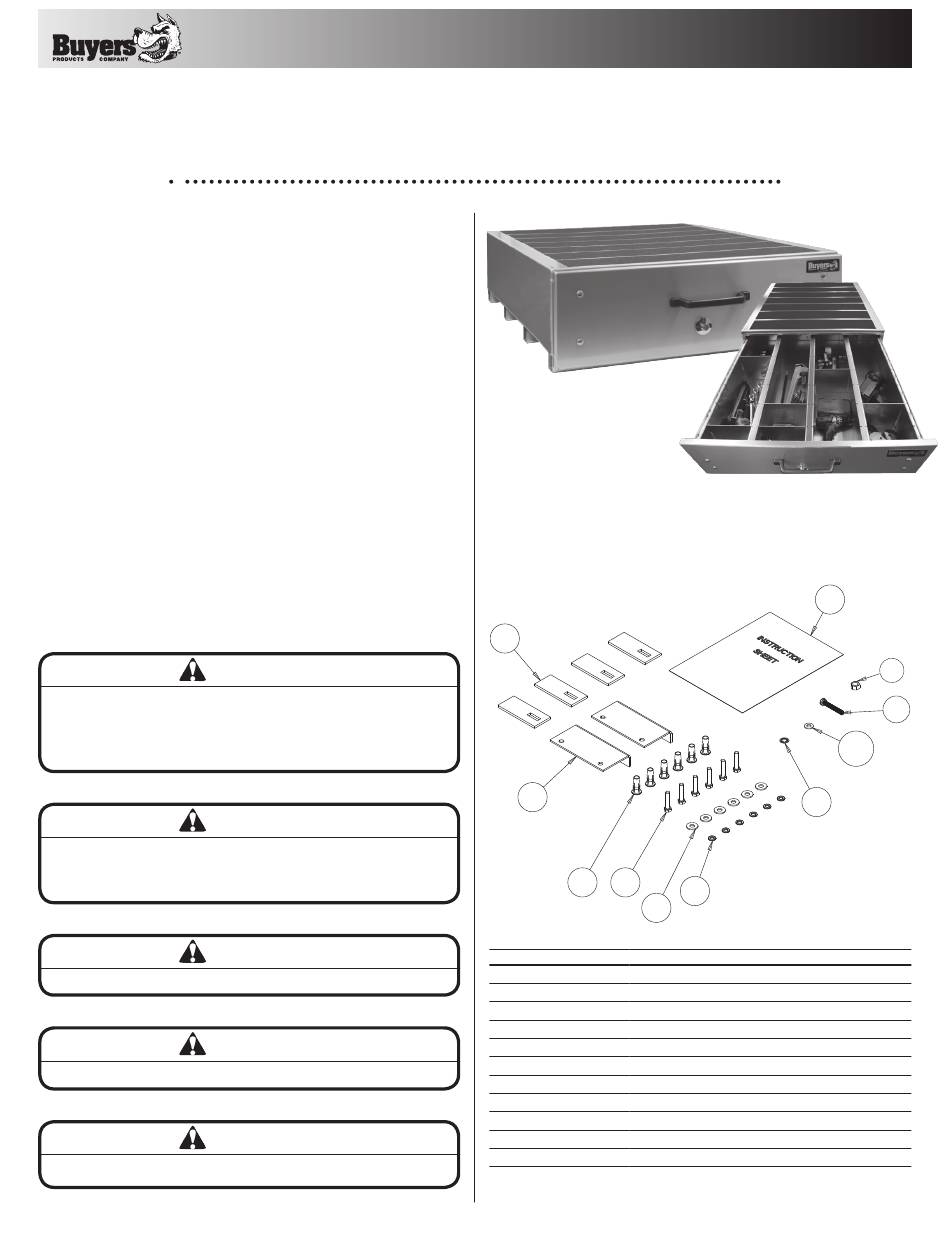

Buyers 1718010 Installation Instructions

Slide Out Truck Bed Boxes

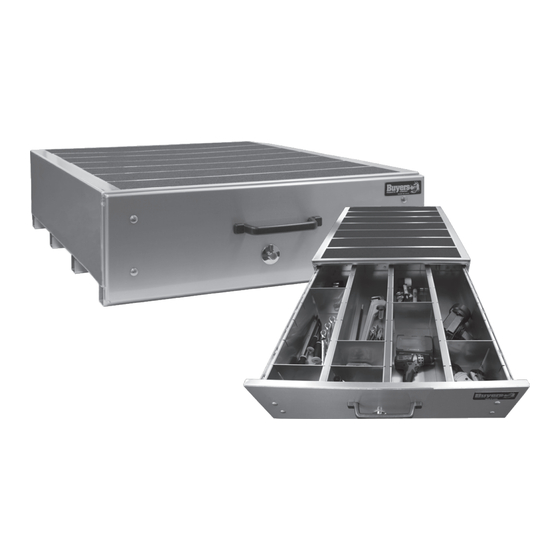

Installation instructions for the
following Buyers Products Bedboxes:
1718010, 1718015, 1718020, 1718025,
1718030, 1718310, 1718315, 1718320,
1718325, 1718330, 1718410, 1718415,
1718420, 1718425, 1718430
Please read and understand all instructions,
illustrations and warnings before installation.
Remove all contents from toolbox and verify the
box is free of damage. Review hardware list for all
supplied hardware. Standard tools will be required
for installation such as a drill, drill bits, tape measure,
wrenches, socket set, screw drivers etc.
WARNING
Before drilling any holes ensure there are no fuel lines, fuel
tanks, brake lines, electrical components, wire harnesses, etc.
failure to do so could result in injury to both the vehicle and
installer.
WARNING
Do not transport or store flammables material, flammable
liquids, explosives, hazardous materials, solvents, etc in this
bed box.
WARNING
Do not use the drawer as a step or work bench.
WARNING
Always ensure the drawer is properly closed before transporting.
WARNING
Always paint or seal any drilled holes with paint to prevent rusting.

Installation Instructions

Included Hardware List
1
2
3 4
ITEM PART NO. QTY.
3036247
1 4
2 3036248 2
3 3036249 6
FCS031018150
4 6
5 3000554 6
6 FWL031058008 6
3036251
7 1
8 3036603 1
9 3036604 1
10 FWF031075006 1
11 FNH038016028 1
1
www.buyersproducts.com
Phone (440) 974-8888
Fax 800-841-8003
7
8
6
5
DESCRIPTION
PLATE, MOUNT
MOUNTING PLATE, ANGLE
CROSS NUT, PRE BULBED, 5/16-18
SCREW, HHC 5/16-18 X 1.5 GR 5 ZN
WASHER, 5/16 USS FLAT, ZN
WASHER, SPRING LOCK, 5/16 ZN
INSTRUCTION SHEET, BEDBOX
WASHER, TOOTH, INTERNAL 3/8
BOLT, CAP SCREW, 5/16-18 FULL THREAD
WASHER, 5/16 SAE ZINC
NUT, 3/8-16 HEX ZP
—continued inside
