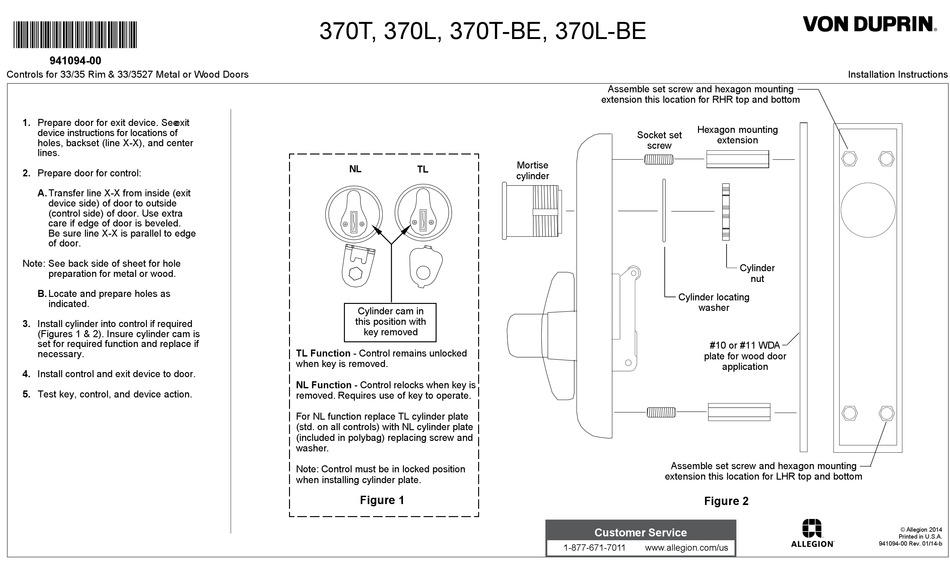

Controls for 33/35 Rim & 33/3527 Metal or Wood Doors
1. Prepare door for exit device. See exit
device instructions for locations of
holes, backset (line X-X), and center
lines.

2. Prepare door for control:

A. Transfer line X-X from inside (exit
device side) of door to outside
(control side) of door. Use extra
care if edge of door is beveled.
Be sure line X-X is parallel to edge
of door.
Note: See back side of sheet for hole
preparation for metal or wood.
B. Locate and prepare holes as
indicated.

3. Install cylinder into control if required

(Figures 1 & 2). Insure cylinder cam is
set for required function and replace if
necessary.

4. Install control and exit device to door.

5. Test key, control, and device action.

370T, 370L, 370T-BE, 370L-BE
NL
TL
Cylinder cam in
this position with
key removed
TL Function - Control remains unlocked
when key is removed.
NL Function - Control relocks when key is
removed. Requires use of key to operate.
For NL function replace TL cylinder plate
(std. on all controls) with NL cylinder plate
(included in polybag) replacing screw and
washer.
Note: Control must be in locked position
when installing cylinder plate.
Figure 1
Assemble set screw and hexagon mounting
extension this location for RHR top and bottom
Socket set
screw
Mortise
cylinder
Cylinder locating
Assemble set screw and hexagon mounting
extension this location for LHR top and bottom
Customer Service
1-877-671-7011
www.allegion.com/us
Installation Instructions
Hexagon mounting
extension
Cylinder
nut
washer
#10 or #11 WDA
plate for wood door
application
Figure 2
© Allegion 2014
Printed in U.S.A.
941094-00 Rev. 01/14-b
