Von Duprin 6211 Installation Instructions

*931227-00*
931227-00

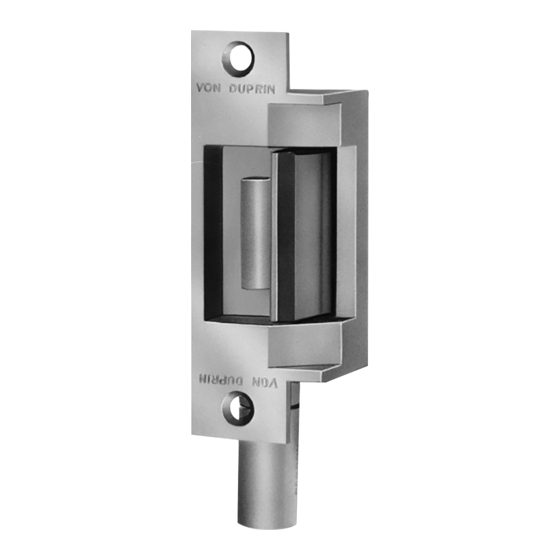

Electric Strike for Single Door Mortise or Cylindrical Application
Notes: Deadbolt will not function with this strike.
Check with factory for retrofit applications.
1. For lock or device preparation, see their directions.
2. Prepare frame for strike (see other side).
3. Wire strike (Figure 1). (Switches on 6211DS only.)
SOLENOID POWER REQUIREMENTS
Yellow solenoid wires: 12 VDC, 0.57 A
Black solenoid wires: 24 VDC, 0.29 A
(also shown on strike label)
{
NOTE
Wiring
for DC DC input is
supply nonpolarized
{
12 VAC
Wiring
or
for AC
24 VAC
supply
P1 J1A
Use crimp
connectors to
splice field wiring
to P1 leads
Fit hook on insert
into notch on
faceplate
Alternate insert
Figure 2
6211/6211DS
12 VDC
P1
or
24 VDC
J 1
SO-12 12 VDC
SO-24 24 VDC
P1A
Solenoid
SO-12 or SO-24
Latch bolt
Strike lip
1/32"
Top view;
faceplate not
position
shown for clarity
Figure 3
4. Install insert for auxiliary bolt operation (Figure 2).
5. Test strike: Apply solenoid power. Fail secure (FSE) lip unlocks.
Fail safe (FS) lip locks. Figure 1 shows status of switches.
6. Install strike with two #12-24 screws. Make sure clearance
between latch bolt and strike lip is 1/32" (Figure 3). If not,
uninstall strike, adjust (Figure 4), and reinstall.
7. If latch bolt does not extend far enough to actuate tripper,
install extension (Figure 5). (Tripper on 6211DS only.)
8. Test door: With strike unlocked, door opens with latch bolt
extended. When door closes, latch bolt rides over strike lip.
J 2 P2
1
S1
2
3
4
S2
5
6
J 2
Fail safe (FS)
Switches hown with tripper
depressed, strike lip closed and locked
(switches and tripper on 6211DS only)
Figure 1
To adjust strike, loosen screws
A, B, and C and move
backbox sideways as
necessary
A
For more
adjustment,
B
move
screw A
C
to hole D
Figure 4
Installation Instructions
Use crimp connectors to
splice field wiring to P2
leads; insulate unused leads
1
Red (C)
S1
2
Blue
3
Yellow
4
White (C)
S2
5
Gray
6
Violet
J 2 P2
Fail secure (FSE)
SWITCH RATINGS
Standard: 5 A, 30 VDC
Gold: 0.25 A, 30 VDC
NOTE:
Static Strength Rating 1500 lb.
D
Dynamic Strength Rating 70ft.-lb.
Endurance Rating 250,000 c.
Extension
Tripper
Figure 5
}
S1
(monitors
tripper)
}
S2
(monitors
strike lip)
89/336/EEC
