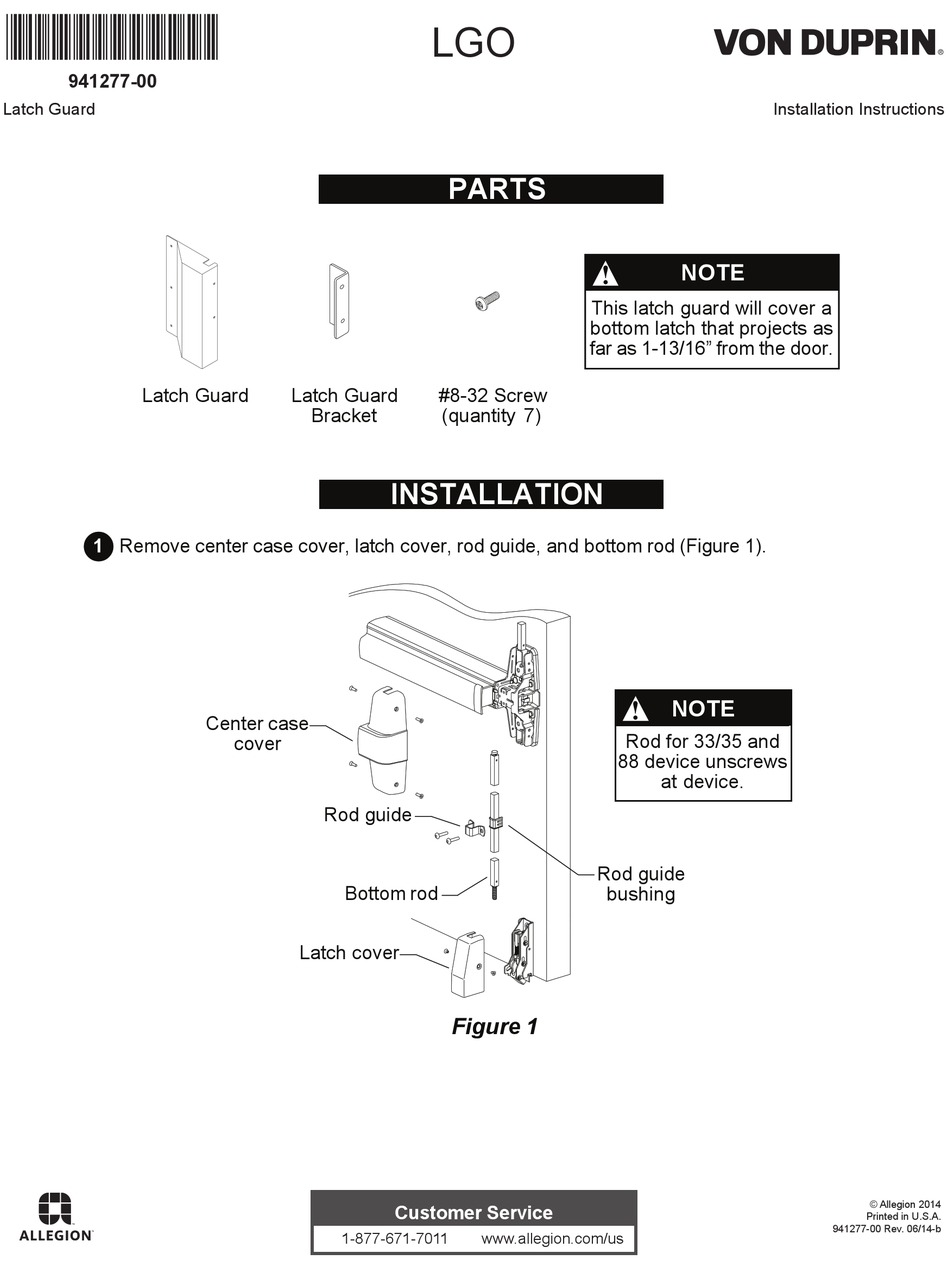

*941277-00*
LGO
941277-00
Latch Guard
Installation Instructions
PARTS
NOTE
This latch guard will cover a
bottom latch that projects as
far as 1-13/16" from the door.
Latch Guard
Latch Guard
#8-32 Screw
Bracket
(quantity 7)
INSTALLATION
1
Remove center case cover, latch cover, rod guide, and bottom rod (Figure 1).
NOTE
Center case
Rod for 33/35 and
cover
88 device unscrews
at device.
Rod guide
Rod guide
Bottom rod
bushing
Latch cover
Figure 1
© Allegion 2014
Customer Service
Printed in U.S.A.
941277-00 Rev. 06/14-b
1-877-671-7011
www.allegion.com/us
Advertisement
Related Manuals for Von Duprin LGO
Summary of Contents for Von Duprin LGO
- Page 1 *941277-00* 941277-00 Latch Guard Installation Instructions PARTS NOTE This latch guard will cover a bottom latch that projects as far as 1-13/16” from the door. Latch Guard Latch Guard #8-32 Screw Bracket (quantity 7) INSTALLATION Remove center case cover, latch cover, rod guide, and bottom rod (Figure 1). NOTE Center case Rod for 33/35 and...
- Page 2 Locate and install latch guard bracket with two #8-32 screws (Figure 2 and Figure 3). Measure from center line of latch 13/16” for Von Duprin 22, 33/35, Latch guard 33A/35A, and 98/99 devices bracket 15/16” for Von Duprin 88 devices...
