© Panduit Corp. 2012
FQCRCM / FQCRCM2
(1) - Strain Relief Bar
Mounting Screws
Use (2) of either:
#12-24 x .5", or
M6 x 15mm
Strain
relief bar
Mount the strain relief bar at the appropriate RU space. Use the
lowest screw hole in the RU space.
For Technical Support: www.panduit.com/resources/install_maintain.asp
Fiber QuickNet Cassette Rear Cable Manager
INSTALLATION INSTRUCTIONS
(3) - FMS1 Slack spools

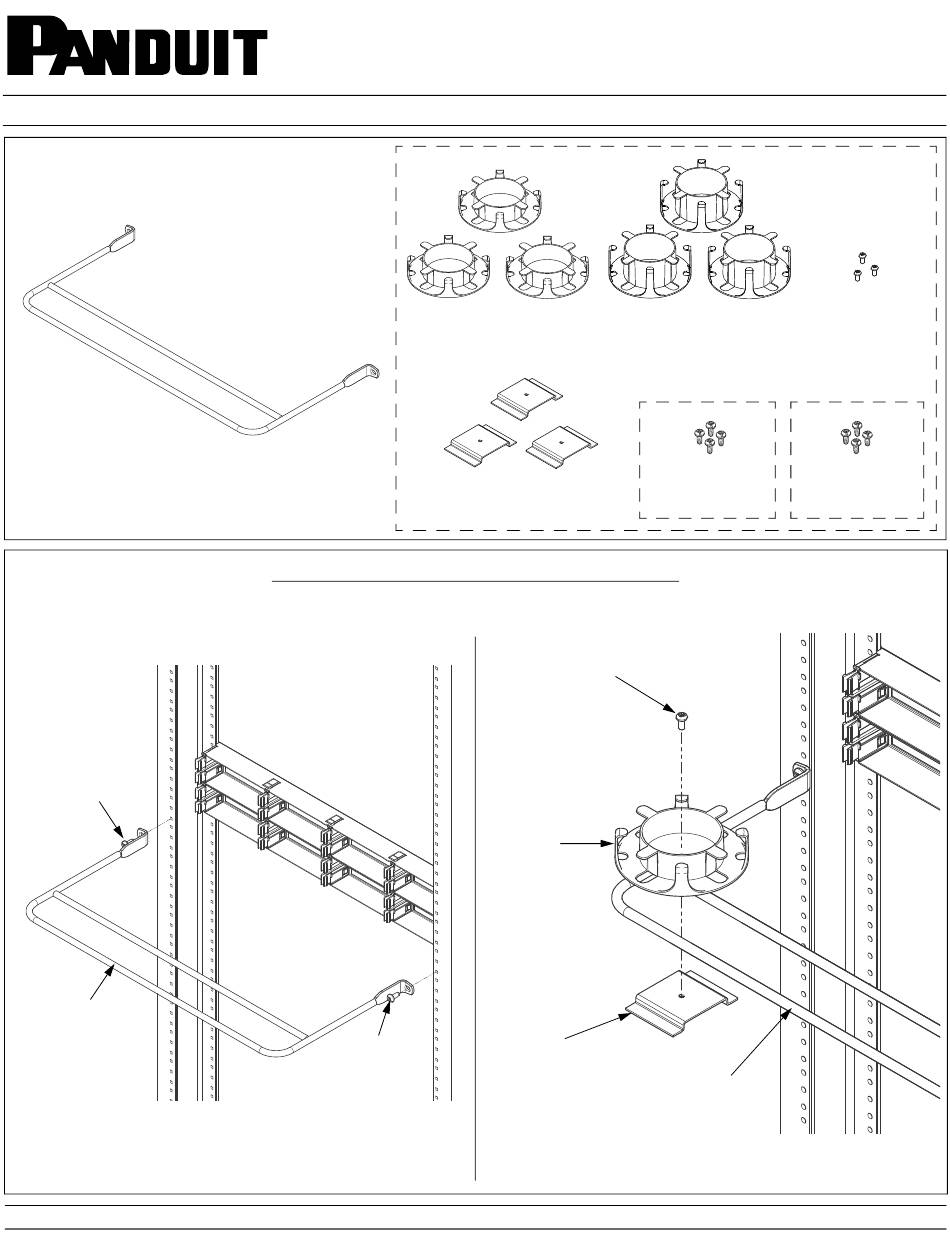

Attaching the Strain Relief Bar and Spools
FQCRCM & FQCRCM2 intended for Panduit 2-Post Racks ONLY.
Not intended for 4-post racks, server cabinets or network cabinets.
Mounting
screws
Part Number: FQCRCM, FQCRCM2
(3) - FMS2 Slack spools
[FQCRCM]
[OR]
(3) - Spool clamp
brackets
#10-32 x 3/8"
pan head
screw
Slack
spool
Spool
clamp
bracket
Attach spools, if needed, as shown.
Page 1 of 3
(3) - #10-32 x 3/8"
[FQCRCM2]
Pan head screws
(4) - #12-24 x .5"
(4) - M6 x 15mm
mounting screws
mounting screws
Strain
relief bar
FS008B
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Panduit FQCRCM2
Summary of Contents for Panduit FQCRCM2
- Page 1 (3) - Spool clamp mounting screws mounting screws brackets Attaching the Strain Relief Bar and Spools FQCRCM & FQCRCM2 intended for Panduit 2-Post Racks ONLY. Not intended for 4-post racks, server cabinets or network cabinets. #10-32 x 3/8" pan head screw...
- Page 2 INSTALLATION INSTRUCTIONS FS008B © Panduit Corp. 2012 Recommended Cable Routing and Spool Orientation QuickNet SFQ Cassette Installation using a Standard QuickNet Patch Panel Tak-Tys (not included) When used with QuickNet SFQ Cassettes, as shown above, the FQCRCM (shown) can support up to twenty-four MTP* interconnect cables.
- Page 3 When used with HDQ series cassettes, as shown above, the FQCRCM (shown) can support up to twenty-four MTP* interconnect cables. The FQCRCM2 can support up to thirty-six**. Only one RU is shown for clarity. Recommended spool positions are shown. For use with Copper Cables...
