© Panduit Corp. 2010
R4PFP
Contents
(4) Vertical Filler Panels
(8) 1/4-20 Hex Nuts
(8) #12 Lockwashers
(2) Packs of (4) #12-24 Screws
(12) 1/4-20 Screws
(4) 1/4-20 Weld Nuts
FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp

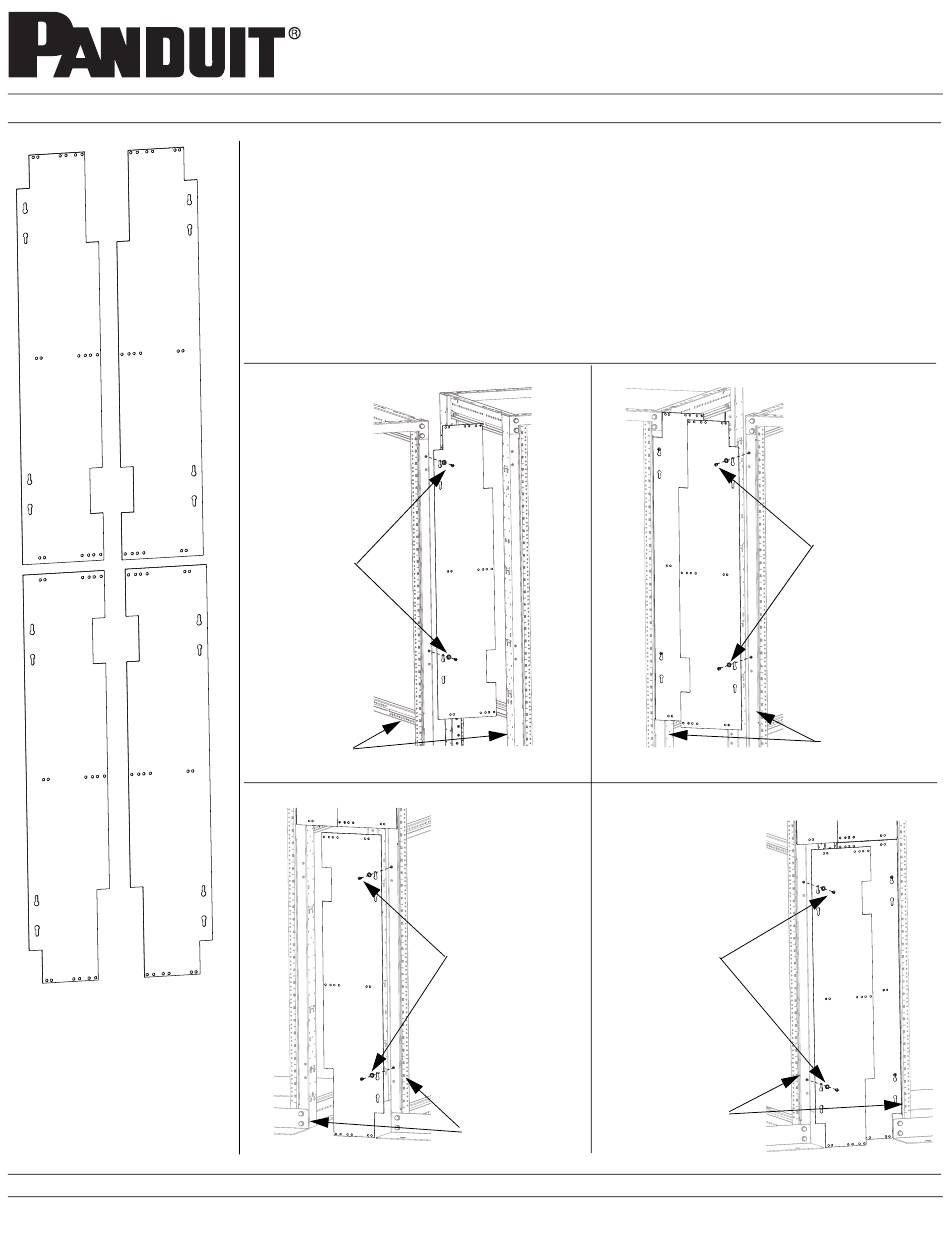

4-Post Vertical Filler Panels
Part Number: R4PFP
INSTRUCTIONS CM439B
Installation Instructions-Mounting Vertical Filler Panels to
Assembly Method:
-Install panels #1, #2, #3, and #4, in order, as oriented, onto frames of 4-post racks.
-Fasten panels together with hardware (as shown on pages 2-4).
Alternate Assembly Method:
Refer to pages 2-4 for rack spacing hardware orientation.
-Assemble top two panels (#1 and #2) together with hardware.
-Assemble bottom two panels (#3 and #4) together with hardware.
-Assemble top and bottom panels together with hardware.
-Install onto frames of 4-post racks.
Panel #1
#12-24 Screws
and #12 Lock-
washers
4-Post Racks
(not included)
Page 1 of 4
4-Post Rack
Panel #4
Panel #3
#12-24 Screws
#12-24 Screws
and #12 Lock-
and #12 Lock-
washers
washers
4-Post Racks
4-Post Racks
(not included)
(not included)
Panel #2
#12-24 Screws
and #12 Lock-
washers
4-Post Racks
(not included)
