Summary of Contents for Unitron dSCR
-

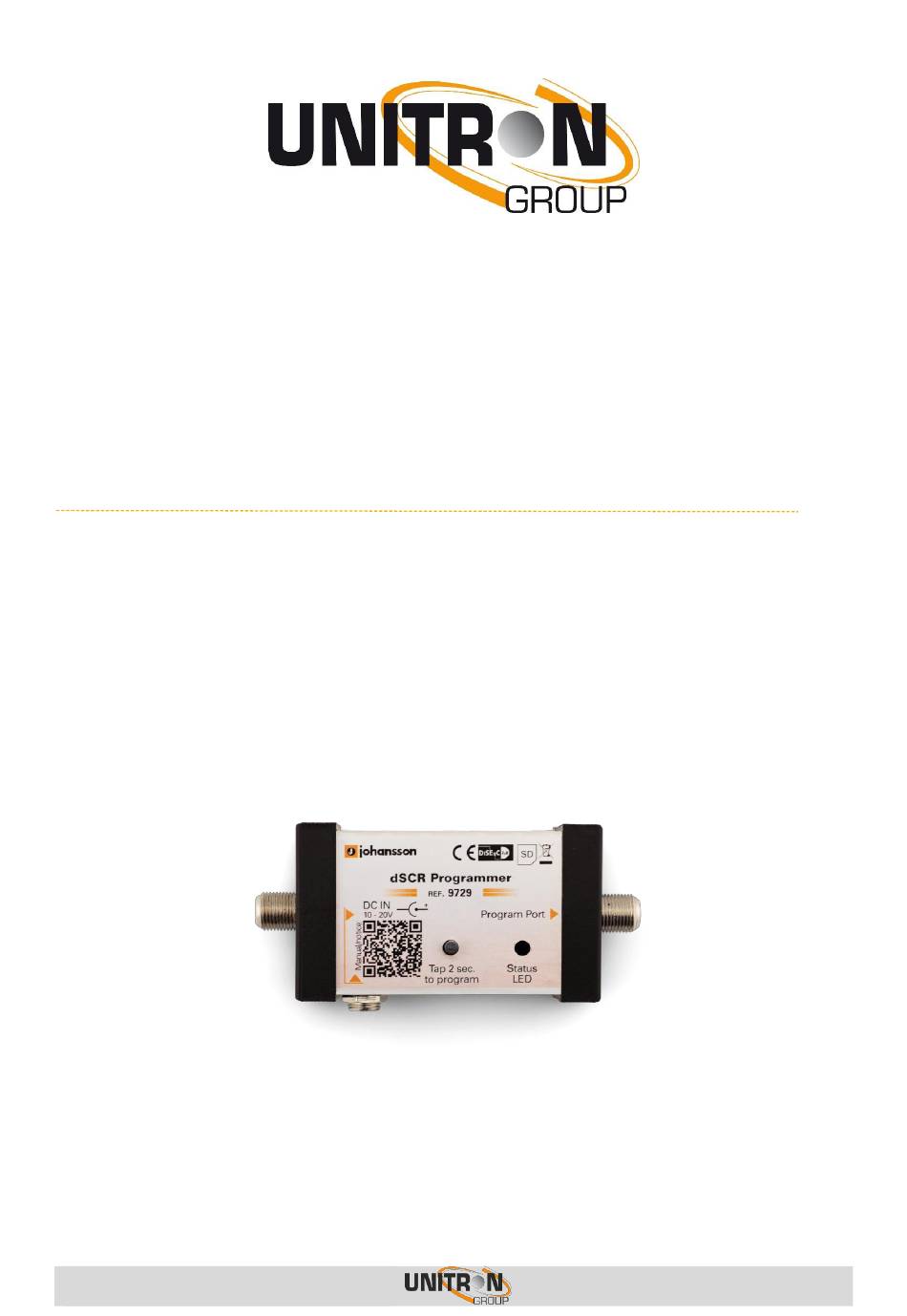

Page 1: User Manual

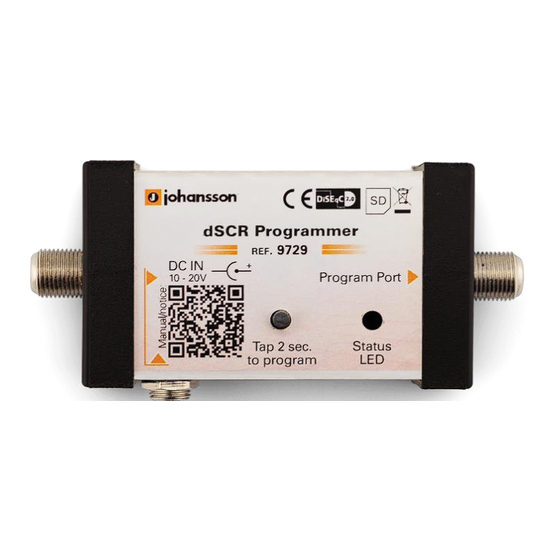

User Manual dSCR Programmer Ref. 9729... -
Page 2: Table Of Contents
No part of this manual may be copied, reproduced, transmitted, transcribed or translated into any language without permission. Unitron reserves the right to change the specifications of the hardware and software described in these manuals at any time. Unitron cannot be held liable for any damages resulting from the use of this product. Specifications are subject to change without notice. -
Page 3: How To Use The Dscr Programmer
3. Connect the dSCR device (LNB, Multiswitch,…) to the dSCR Programmer using the program port. Wait a few seconds to let the dSCR device fully boot (5 sec. approx.). 4. Tap the button on the dSCR Programmer for 2 seconds to start the configuration. The... -
Page 4: Configuration File For Dynamic Digital Lnb
CONFIGURATION FILE FOR DYNAMIC DIGITAL LNB An example of a configuration file for a dynamic digital LNB can be found on the online platform. Go to Predefined configurations and load dSCR-UNI. Click Download and save the file to the SD card. -
Page 5: Configuration File For Static Digital Lnb
Wideband Splitter and Wideband Tap (Ref. 9655 - 9656) v1.0 CONFIGURATION FILE FOR STATIC DIGITAL LNB An example of a configuration file for a static digital LNB can be found on the online platform. Go to Predefined configurations and load UNI-STATIC. Click Download and save the file to the SD card. - Page 6 Programmer Ref. 9729 4. S AFETY NSTRUCTIONS Read these instructions carefully before connecting the unit To prevent fire, short circuit or shock hazard: • Do not expose the unit to rain or moisture. • Install the unit in a dry location without infiltration or condensation of water.
-
Page 7: C Onditions Of Warranty
If during this period of warranty the product proves defective, under normal use, due to defective materials or workmanship, Unitron N.V, at its sole option, will repair or replace the product. Return the product to your local dealer for reparation... - Page 8 Programmer Ref. 9729 UNITRON NV Frankrijklaan 27 B-8970 Poperinge Belgium T +32 57 33 33 63 F +32 57 33 45 24 sales@unitrongroup.com www.unitrongroup.com...
