Summary of Contents for LaserLiner Quadrum

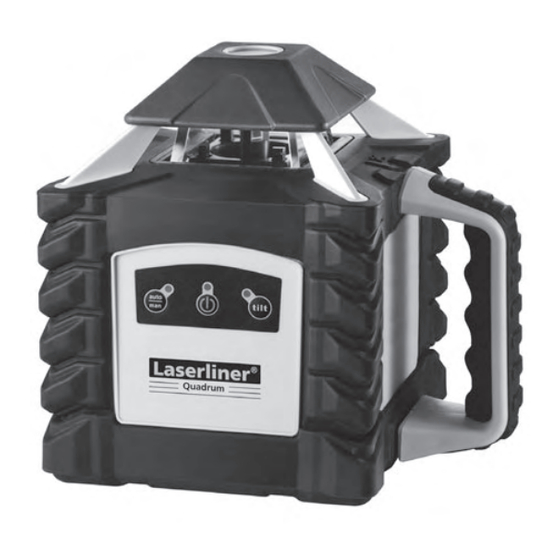

- Page 1 Quadrum / Quadrum Green auto auto Laser 530-670 nm IP 66...
-
Page 2: General Safety Instructions
– All functions can be controlled remotely. – optional SensoLite 310: Laser receiver range up to 300 m radius – optional SensoMaster 400 (Quadrum red only): Laser receiver range in excess of 300 m radius. With longer laser receiver unit and millimetre exact distance reading for laser level. - Page 3 Quadrum / Quadrum Green Special product features and functions The rotary laser aligns itself automatically. It is set to the required initial position (to within an operating angle of ± 5°) and the automatic system then performs the necessary fine adjustment, with three electronic measurement sensors detecting the X, Y and Z axes.
- Page 4 – The optimal operating temperature is 20°C. Outside its operating tempera- ture range of 0 – 40°C Quadrum Green is darker. IMPORTANT: Allow the unit enough time to adapt to the ambient temperature before switching the unit on.
-
Page 5: Battery Charging
Quadrum / Quadrum Green Battery charging – Charge the device's battery completely prior to use. – Connect the charger to mains power supply and the charging socket (I) of the battery compartment (K). Please only use the charger supplied; using a different charger will invalidate the warranty. - Page 6 Vertical operation Reference / plumb laser outlet Battery compartment / battery fastening nut Prism head / laser beam outlet Charging socket Receiver diodes for remote con- trol (4 x) Battery compartment Control panel Rechargeable battery compartment 5/8" thread / Reference, plumb laser outlet Mains unit / charger Slot for rechargeable battery / Operation indicator...
-
Page 7: Remote Control
Quadrum / Quadrum Green Control panel Quadrum Remote control auto/man function Positioning button (rotate to the left) auto/man function LED auto/man. function: Y axis pro- LED off: automatic alignment ceed as above LED on: manual alignment auto/man. function: Y axis pro-... - Page 8 Horizontal levelling and vertical levelling auto auto – Horizontal: Position the device on a level surface or on a tripod. – Vertical: Set the unit on its side feet. The operator panel should be at the top. With the optional wall bracket (product ref.
- Page 9 Quadrum / Quadrum Green Slope function up to 5° – horizontal This function deactivates the automatic sensor. To use the function, press the auto/man button. The plus/minus buttons are used to re-adjust the slope by means of a motor. In the process the X-and Y-axis can be adjust separately.
- Page 10 Laser modes Rotary mode The following speeds can be set using the rotary button: 0, 60, 120, 300, 600 rpm Spot mode You access spot mode by pressing the rotary button repeatedly until the laser stops rotating. The laser can then be positioned exactly at the measuring point by means of the direction but- tons.
- Page 11 Quadrum / Quadrum Green Technical data (Subject to technical alterations) Self-levelling range ± 5° Accurancy ± 1 mm / 10 m Horizontal / vertical levelling Automatic with electronic sensors and servo motors Self-levelling alignment time Approx. 30 seconds over the entire opera-...
- Page 12 5. To check the Y and Z axis, repeat steps 3 and 4. If points A2 and A3 are more than 1 mm / 10 m apart on either the X or Y axis, the device is in need of adjustment. Contact your authorised dealer or else the UMAREX-LASERLINER Service Department.
-
Page 13: Adjustment Mode
Always adjust all the axes. X axis adjustment Activate adjustment mode: Switch on the Quadrum. Press the Y axis plus/minus buttons simultaneously until the auto/man. LED flashes. Adjustment: Use the X axis plus/minus buttons to move the laser from its current position to the height of reference point A2. - Page 15 Accessoires (en option) Lisämahdollisuuksia valinnaisvarusteilla Art.-Nr: 035.00A Quadrum Red (Quadrum Green) Art.-Nr: 035.01 Quadrum Red Art.-Nr: 080.50 (Quadrum Green) Quadrum Red Art.-Nr: 080.51 Quadrum Green Art.-Nr: 080.33 Art.-Nr: 028.71 Art.-Nr: 028.80 Quadrum Red Quadrum Red + Quadrum Green (Quadrum Green)
- Page 16 Quadrum / Quadrum Green SERVICE Umarex GmbH & Co KG – Laserliner – Möhnestraße 149, 59755 Arnsberg, Germany Tel.: +49 2932 638-300, Fax: +49 2932 638-333 laserliner@umarex.com Umarex GmbH & Co KG Donnerfeld 2 59757 Arnsberg, Germany Tel.: +49 2932 638-300, Fax: -333...
