Technical Parameters
Tactical Mode
ANSI/ PLATO
FL1
Turbo
2800
lumens
Output
3 hours *
Runtime
540
meters
Distance
74000
candela
Intensity
Impact
Resistance
Submersible
Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results
produced by Fenix through its laboratory testing using the Fenix ARB-L21-5000U rechargeable
battery pack, under the temperature of 21±3°C and humidity of 50% - 80%. The true
performance of this product may vary according to different working environments and the
actual battery used.
* The Turbo, High output are measured in total of runtime including output at reduced levels due
to temperature or protection mechanism in the design.

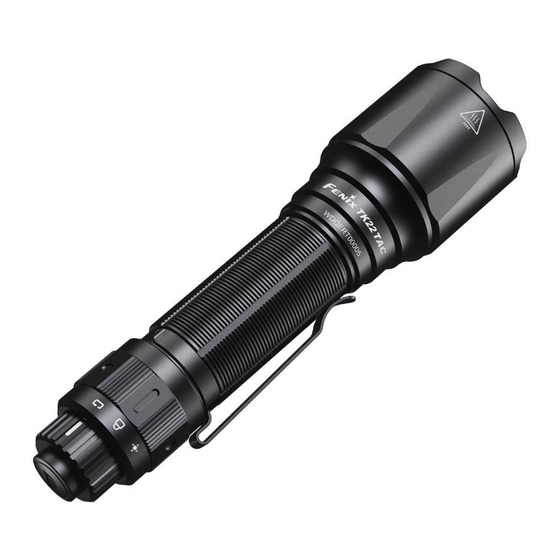

Fenix TK22 TAC Flashlight
Strobe
High
2500
1000
lumens
lumens
/
4 hours *
315
/
meters
24800
/
candela
Duty Mode
Med
Low
350
150
lumens
lumens
8 hours
18 hours
10 minutes
30 minutes
188
120
meters
meters
8850
3560
candela
candela
1 meter
IP68
Eco
Strobe
30
2500
lumens
lumens
49 hours
/
30 minutes
55
/
meters
760
/
candela
Advertisement
Related Manuals for Fenix TK22 TAC
Summary of Contents for Fenix TK22 TAC
- Page 1 Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using the Fenix ARB-L21-5000U rechargeable battery pack, under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery used.
-
Page 2: Product Features
Warning Do place this light out of the reach of children! Do NOT shine the light directly into the eyes of anyone! Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature! Do NOT use the light in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the light or internal battery fails! This light will accumulate a lot of heat while working, resulting in a high temperature of the... - Page 3 On/off With the light unlocked and switched off, tap the tactical tail switch to momentarily turn on the light, release it the light will go out, fully press the tactical tail switch to constantly turn on the light (less than 0.8 seconds), fully press again to turn off the light. Mode Switching In any state, rotate the toggle switch to select the needed mode, rotate the toggle switch clockwise to the end to enter tactical mode, rotate the toggle switch anticlockwise to the end to...
-
Page 4: Battery Specifications
Rotate the toggle switch to Tactical mode OR Duty mode to unlock the light. Battery Specifications Nominal Type Dimension Usability Voltage Fenix ARB- L21-5000U 21700 3.6V Recommended √√ Fenix ARB- L21-5000 V2.0 21700 3.6V Recommended √√ Fenix ARB- L21-4000P 21700 3.6V Recommended √√ Rechargeable battery (Li-ion) 21700 3.6V... -
Page 5: Low-Voltage Warning
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact your authorized distributor. Included Fenix TK22 TAC flashlight, Fenix ARB-L21-5000U Li-ion battery, USB Type-C charging cable, Holster, Spare O-ring, User manual, Warranty card...
