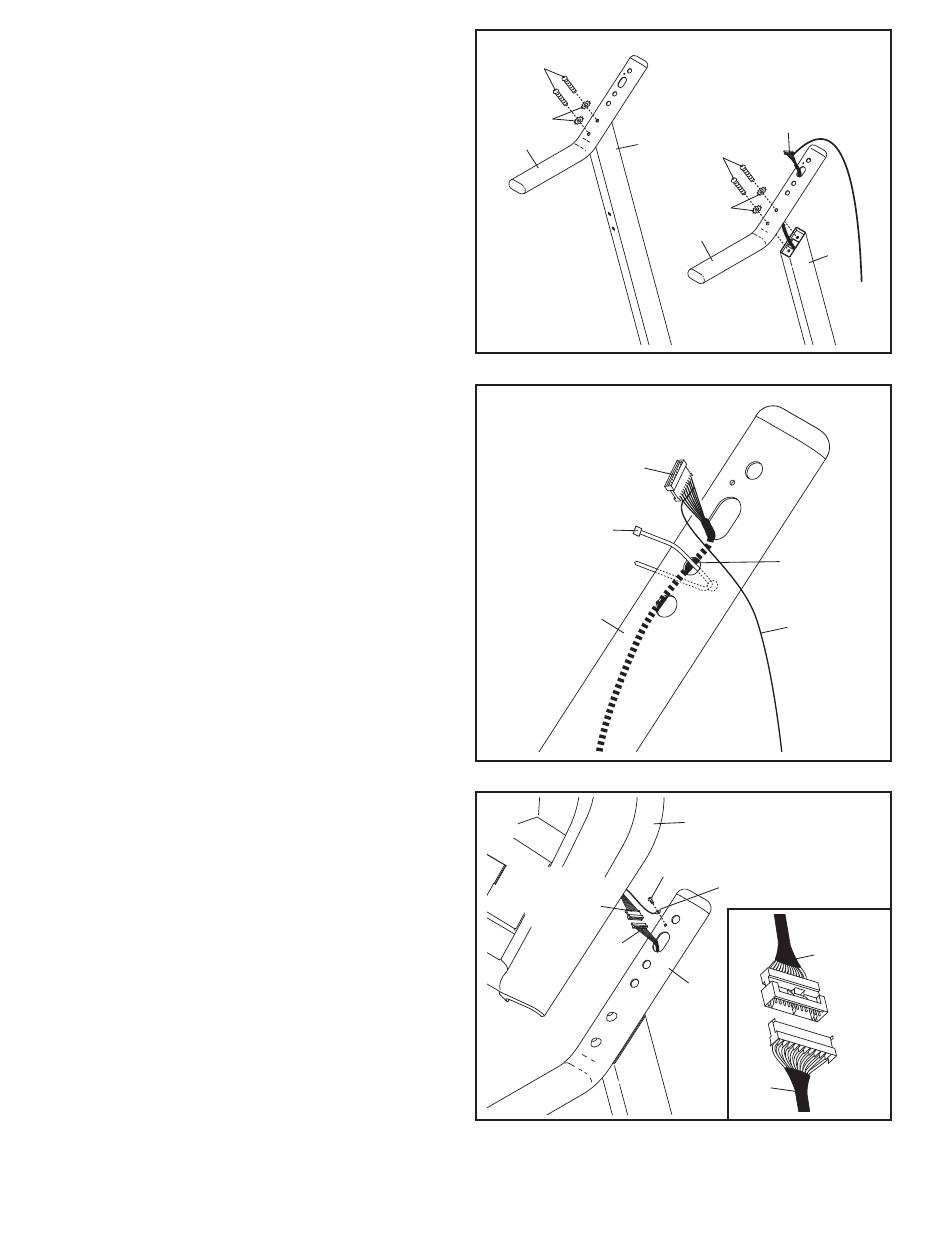

7. Route the Upright Wire (28) through one of the
Handrails (18) as shown.
Attach the Handrail (18) to the Right Upright (36)
with two 5/16" x 2 1/4" Bolts (20) and two 5/16"
Star Washers (19). Be careful not to pinch the
Upright Wire (28).
Attach the other Handrail (18) to the Left Upright
(31) with two 5/16" x 2 1/4" Bolts (20) and two
5/16" Star Washers (19). Firmly tighten the
four Bolts.
8. Insert the included plastic tie through the indi-
cated hole in the right Handrail (18). Make sure
that the Upright Wire (28) is secured to the
inside of the Handrail as shown. Then,
tighten the plastic tie.
Remove the wire tie from the Upright Wire (28).
9. While another person holds the Console Base
(26) near the right Handrail (18), attach the
ground wire on the Console Base to the right
Handrail with a #8 x 1/2" Ground Screw (27).
Connect the wire harness on the Console Base
(26) to the Upright Wire (28) as shown in the
inset drawing. If the connectors are oriented
correctly, they will slide together easily and
snap into place. If they do not, turn one con-
nector and try again. IF YOU DO NOT CON-
NECT THE CONNECTORS PROPERLY, THE
CONSOLE MAY BECOME DAMAGED WHEN
YOU TURN ON THE POWER.
7
20
19
18
31
8
28
Plastic Tie
18
9
Wire
Harness
28
9
28
20
19
18
36
Hole
Wire Tie
26
27
Ground
Wire
Wire
Harness
18
28
