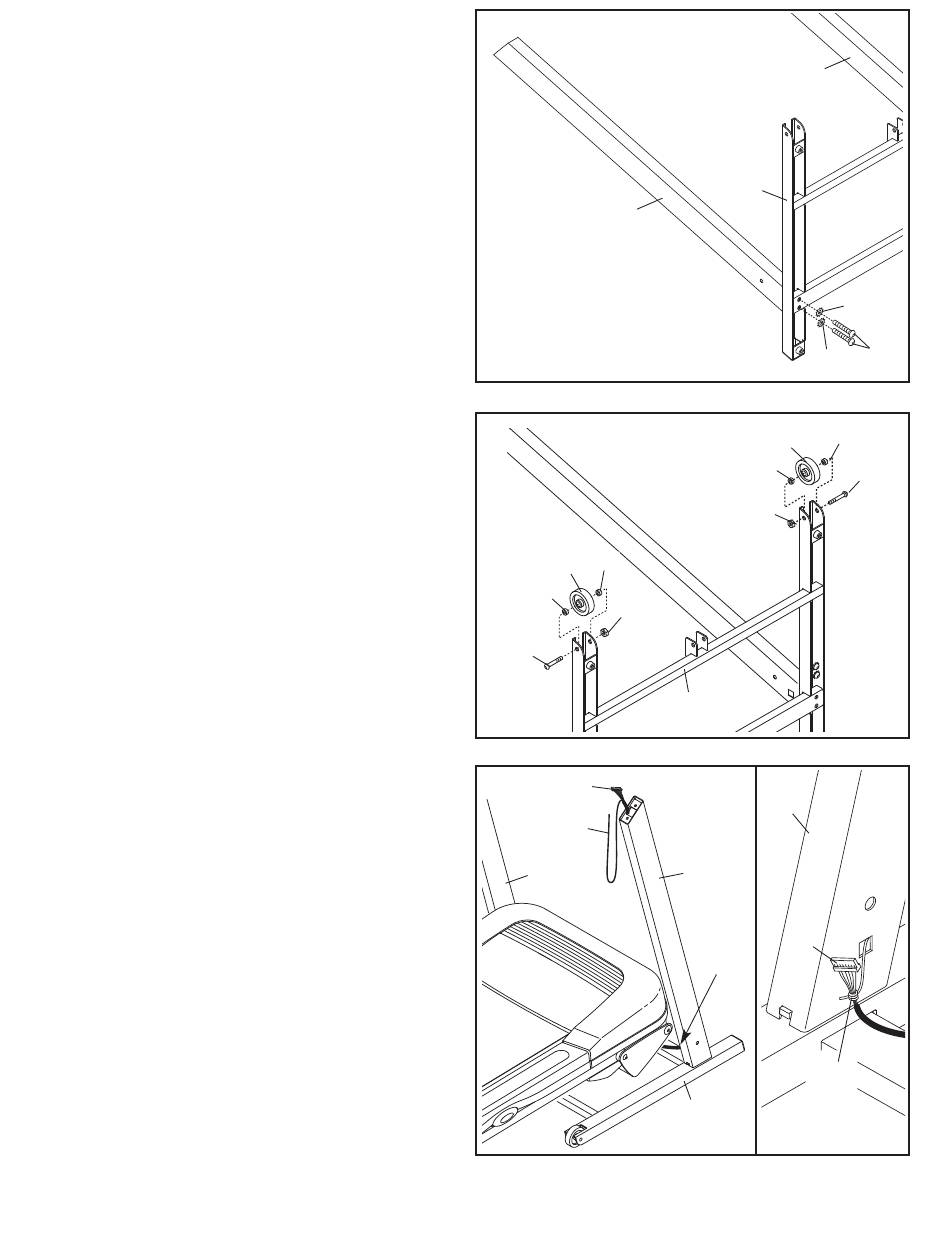

2. Orient the Left Upright (31) as shown, and at-
tach it to the Base (48) with two 3/8" x 2 1/4"
Bolts (5) and two 3/8" Star Washers (39); do
not tighten the Bolts yet. Make sure the top
of the Left Upright is angled in the same di-
rection as the top of the Right Upright (36).
3. Attach a Wheel (45) to each side of the Base
(48) with a 3/8" x 2 1/4" Bolt (5), two Wheel
Spacers (44), and a 3/8" Nut (47) as shown. Do
not overtighten the Bolts; the Wheels should
turn freely.
4. Raise the Uprights (31, 36) so that the Base (48)
is flat on the floor and positioned as shown.
Cut the tie holding the Upright Wire (28) in a
bundle.
See the far right drawing. Tie the wire tie in the
Right Upright (36) around the end of the Upright
Wire (28). Then, pull the other end of the wire tie
until the Upright Wire is extending from the
upper end of the Right Upright.
Make sure that the end of the Upright Wire
(28) does not fall into the Right Upright (36).
