Summary of Contents for Jorc SmartGuard

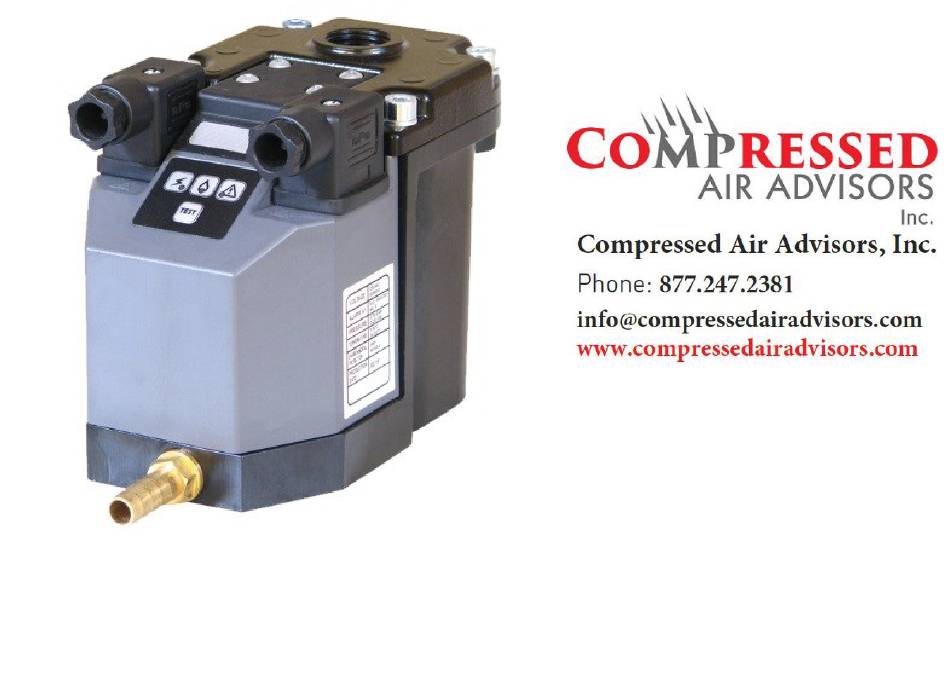

- Page 1 Installation & Maintenance Instructions 7/2018...
-
Page 2: Safety & Warning Instructions
SAFETY AND PROPER USAGE To ensure safe and enduring performance of this product, you must comply strictly with the instructions enclosed herein. Non-compliance with instructions or improper handling of the product will void your warranty! Usage of this product in conditions not specified in this manual or in contrary to the instructions hereby provided is considered IMPROPER. - Page 3 1.3b 1.3a 1.4a 1.4b...
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS IMPORTANT NOTICE! Before installing this product, make sure it complies with your request and that it suits your application! 1.1 Unpack the unit and visually inspect for any transport damage incurred after leaving our factory. 1.2 Depressurise the system before installation or maintenance is carried out! 1.3a Top inlet connection: If you choose to use the top inlet, locate a suitable condensate draining point in your compressed air system and connect your drain as illustrated. - Page 5 Sensor module screw (4x) Sensor module Connector screw (2x) Sensor module O-ring small Screw gasket (2x) Connector (2x) Sensor module O-ring large Connector gasket (2x) Sensor module O-ring middle Electronics compartment (with attached Earth cable) Housing bolt (4x) Housing bolt Washer (4x) Housing top part Valve shaft Housing gasket...
- Page 6 ALARM INSTALLATION INSTRUCTIONS The drain is equipped with an alarm feature. Alarm occurs when the valve has to open too many (>100) consecutive times without a pause. The reason for this may be debris (rust) particles blocking the valve, outlet, or a sensor failure indicating a service necessity.
-
Page 7: Additional Installation Instructions
ADDITIONAL INSTALLATION INSTRUCTIONS Avoid water pockets when installing the The feed pipe must be horizontal or ideally at a downwards slope (>1°). feed pipe, this will create an air lock. >1° If the downwards slope of the feed pipe is not sufficient, or if any other flow problem occurs, a venting line must be installed to prevent an air lock. -
Page 8: Cleaning Instructions
CLEANING INSTRUCTIONS IMPORTANT NOTICE! These instructions are for cleaning the drain. If your drain requires maintenance, i.e. replacement of wearing components, please refer to our dedicated maintenance instructions (supplied with the service kit). Depressurise the system before installation or maintenance is carried out! 2.1 Stop the condensate supply, i.e. - Page 9 2.10 2.11 2.12...
-
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS Max. compressor capacity 100 m³/min. 3500 cfm. Min. / Max. system pressure 0 Bar / 16 Bar 0 Psi / 230 Psi Min. / Max. medium temperature 1° C / 50° C 34° F / 122° F Valve type 2/2 way, direct acting Valve orifice 4 mm... -
Page 11: Service Chart
SERVICE CHART Date Description Name... - Page 12 DIMENSIONS...
