Installation & Maintenance Instructions
TEC-44

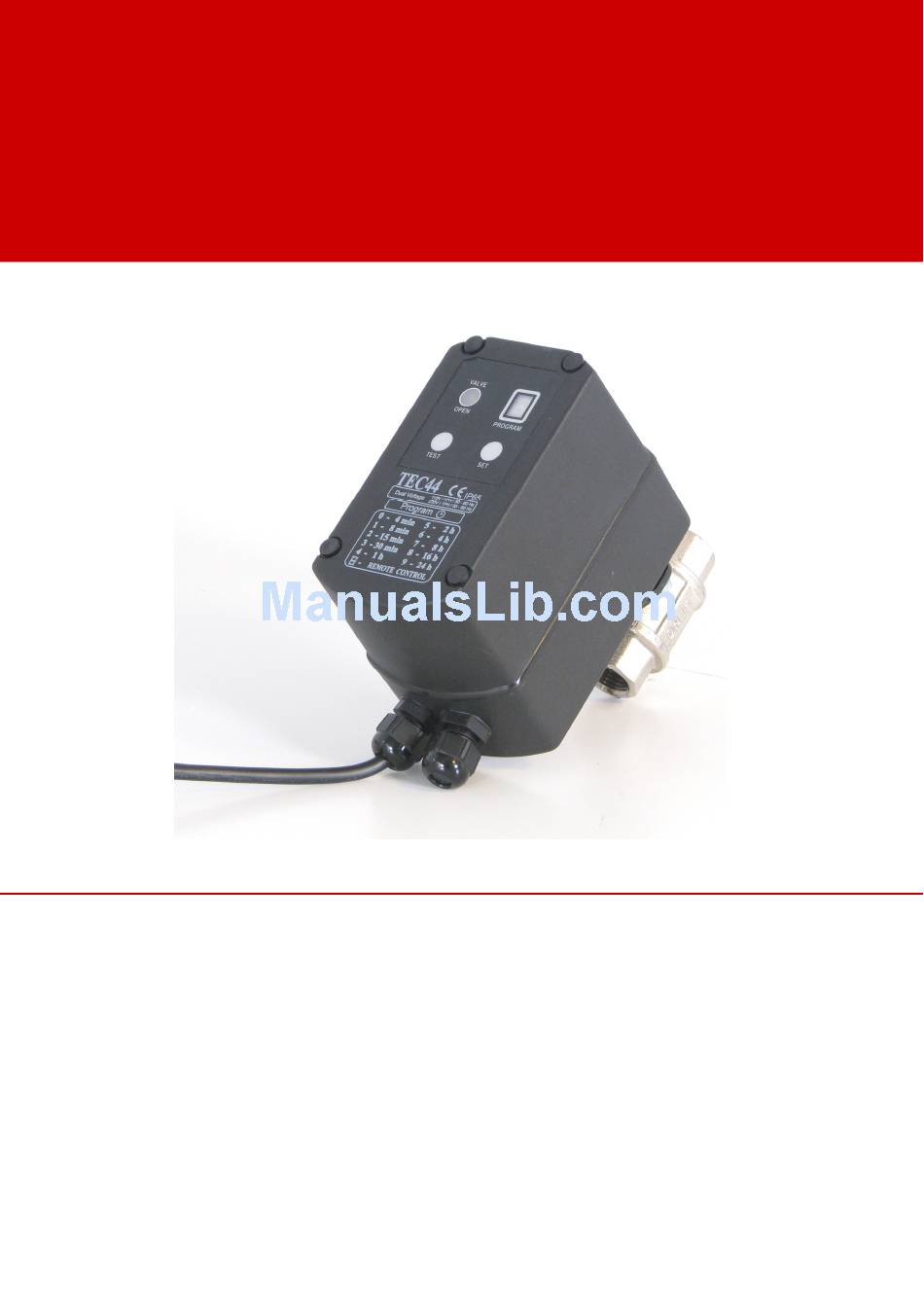

Motorised ball valve
10/11
GENERAL OPERATION
The TEC-44 is a microprocessor operated ball valve, designed to remove condensate from
deliquescent dryers, tanks, vessels and refrigerated dryers.
The TEC-44 is designed to remove high viscosity effluents at pressure ratings up to 40 BAR.
This condensate drain can not be blocked and is applied where all else fails.
Draining applications with a high level of contamination (rust, scale etc.) require the TEC-44.
The TEC-44 is impossible to block due to its powerful ball valve rotation and large orifice.
1
1

Advertisement

Table of Contents
loading

Related Manuals for Jorc TEC-44

Summary of Contents for Jorc TEC-44

  • Page 1 The TEC-44 is a microprocessor operated ball valve, designed to remove condensate from deliquescent dryers, tanks, vessels and refrigerated dryers. The TEC-44 is designed to remove high viscosity effluents at pressure ratings up to 40 BAR. This condensate drain can not be blocked and is applied where all else fails.

  • Page 2: Safety & Warning Instructions

    SAFETY INSTRUCTIONS SAFETY AND PROPER USAGE To ensure safe and enduring performance of this product, you must comply strictly with the instructions enclosed herein. Non-compliance with instructions or improper handling of the product will void your warranty! This product is designed to drain condensate from compressed air systems. Usage of this product in conditions not specified in this manual or in contrary to the instructions hereby provided is considered IMPROPER.
  • Page 3 EXPLODED VIEW - IDENTIFY ALL COMPONENTS DIAGRAM Housing screw plug (4x) Housing screw (4x) TEC-44 housing top part Gasket Motor TEC-44 housing bottom part Ball valve Ball valve ring (2x) Ball valve screw (2x)

  • Page 4: Installation Instructions

    2. Depressurise the system before installation or maintenance is carried out! 3. Locate a suitable condensate draining point 4. Connect the outlet to an oil/water separator. on your compressed air system and connect We recommend using a JORC condensate your TEC-44 as illustrated below. cleaner.
  • Page 5 INSTALLATION INSTRUCTIONS 5. After double checking that the power supply 6. The TEC-44 will start up in program 4 (see corresponds with the voltage specified on your chart 1). Any changes to the program selection TEC-44, you can switch it ON.
  • Page 6 (valve open). 11. Your TEC-44 is ready for operation. The TEC-44 is equipped with a Power Failure Protection Safeguard. The Power Failure Protection Safeguard consists of 4 AA size, 1,5V (penlight) batteries. To place or change the batteries open the...

  • Page 7: Remote Control Instructions

    The remote test button switch must be connected to position 5&6. Use chart 1 on page 5 to set the TEC-44 to your remote control program (external switching). VOLTAGE CONVERSION INSTRUCTIONS The TEC-44 can be converted to suit 115VAC or 230VAC electrical systems. Use the below mentioned diagrams to configure your TEC-44 to the corresponding electrical power supply.

  • Page 8: Service Chart

    SERVICE CHART Date Description Name...

  • Page 9: Technical Specifications

    TECHNICAL SPECIFICATIONS Interval (OFF) time 4 minutes to 24 hours Discharge (ON) time 7 seconds to 15 minutes Manual TEST switch Supply voltage 115 or 240VAC/DC 50/60Hz Operating temperature 0º Celsius to 60º Celsius Environmental protection IP65 Valve type Nickel plated brass, stainless steel ball Connection 1/2"...
