Wi-Fi Menu Map

Wi-Fi configuration and setup screens are
accessed through a series of menu options on
the generator control panel. To enter the Wi-Fi
menu, select "WIFI" at the lower left of the
control panel screen and press ENTER.
SYSTEM DATE/TIME
1
WIFI
SUB MENUS
2
WIFI SIGNAL xx%
CONNECTION:
3
OK
4
WIFI VERSIONS:
5
SETUP IP ADDR:
1 Generator
Main Menu Page
2 Wi-Fi Signal Strength Displays home network connection strength from zero to 100%
3 Connection Status
4 Wi-FI Versions
5 Setup IP Address
6
Setup SSID
7 Wi-FI IP ADDR
8 WI-FI SSID
9
PING
10 REDO Wi-FI Setup
Installation and User's Manual for Wi-Fi Module
REDO WIFI SETUP?
9
PING
ENTER TO SEND
8
WIFI SSID:
(network name)
7
WIFI IP ADDR:
6
SETUP SSID:
MLGxxxxx
Allows the operator to navigate to other pages or sub-menus by using the
arrow keys and the ENTER button.
"OK" indicates a successful connection to the home network. Display
alternately cycles between "OK" and the home network name.
Displays Wi-Fi firmware and hardware versions
This displays the IP address used to set up Wi-Fi. Refer to
Home Network When Internet is NOT Available on the Mobile Device
if no IP address is present.
The network name broadcast by the Wi-Fi module while the unit is in AP
mode. The name begins with MLG, indicating "Mobile Link Generator."
Displays the IP address that the generator is using to connect to the
homeowner's network
The network name to which the generator is connected
Pressing ENTER launches a multi-step check to verify a successful
connection to the home network.
Allows the user to restart the Wi-Fi connection process. Refer to
Reconnection
if selecting "Yes."

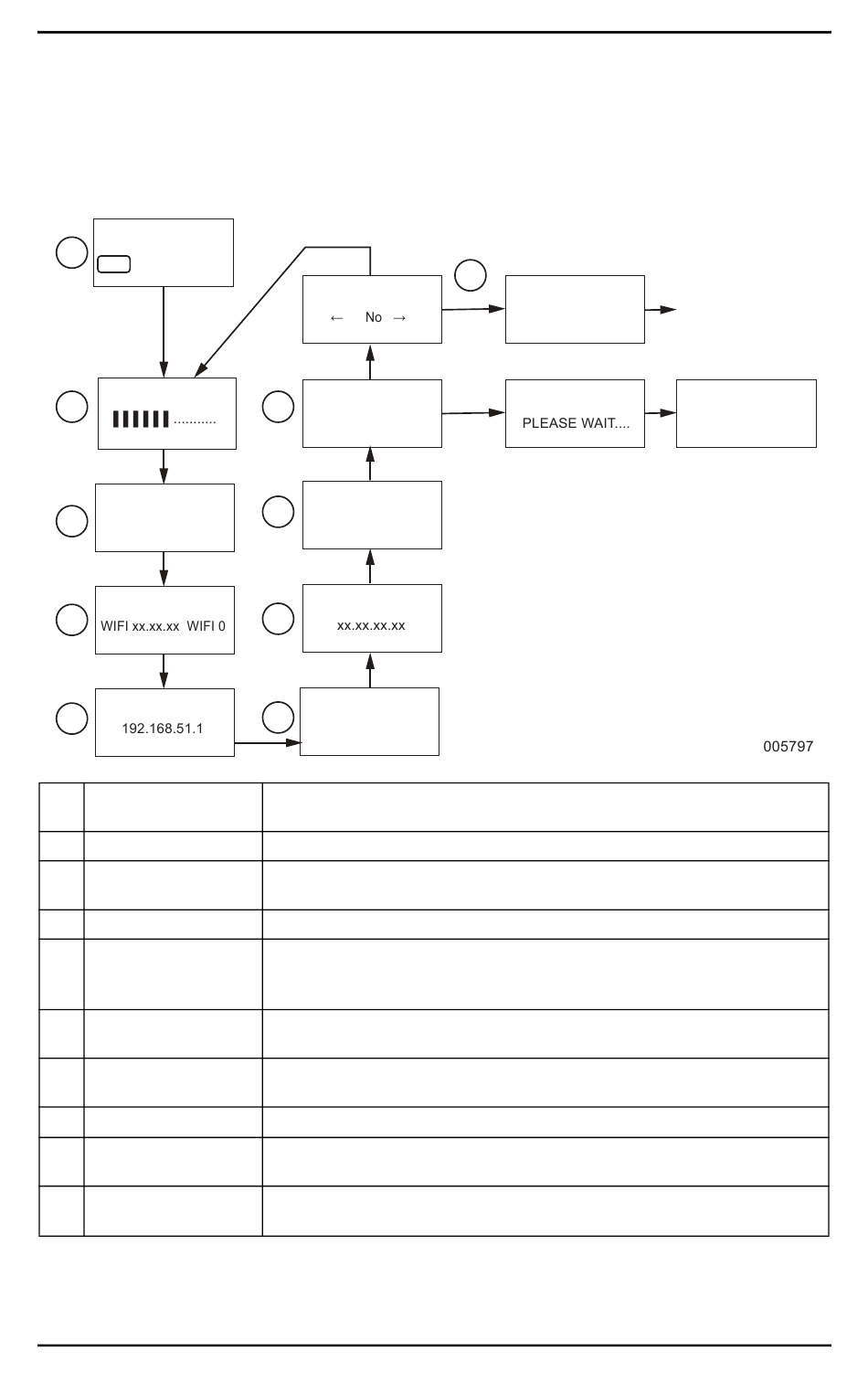

Figure 3-32. Wi-Fi Menu Map
Figure 3-32 is a sequential map of Wi-Fi menu
screens. Descriptions are provided in the
accompanying table.
10
REDO WIFI SETUP?
– Yes
SENDING PING
Setup and Operation
Follow
"Reconnection"
+
process
PING SUCCESS
ESC TO RETURN
Connect to
