Setup and Operation
Continue Connection Process

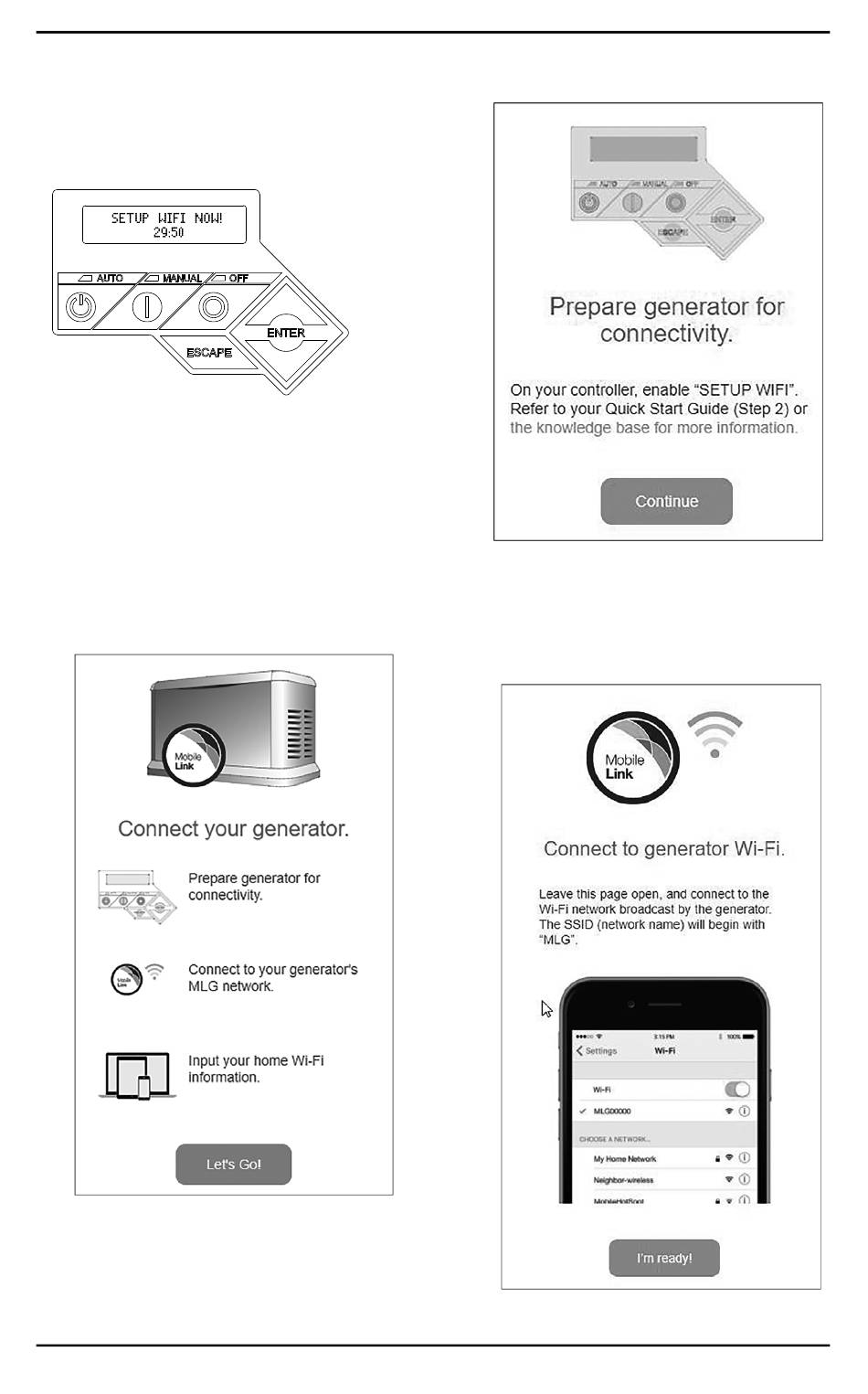

1. See Figure 3-7. The controller display will
change to SETUP WIFI NOW! along with a
timer. You have 30 minutes to connect the
Wi-Fi.
Figure 3-7. Wi-Fi Setup Screen
NOTE: After 30 minutes, the controller will
time out. SETUP WIFI? will reappear on
the controller display. If YES is selected,
the 30 minute countdown timer will restart.
If NO is selected, Wi-Fi setup will be
bypassed.
2. See Figure 3-8. Using a browser on a
mobile device with Internet connectivity,
go to installml.com.
proceed.
Figure 3-8. Installml Home Page
10
006627
Click "Let's Go" to
006628
3. See Figure 3-9. Click "Continue" when the
preparation screen appears.
Figure 3-9. Preparation Screen
4. See Figure 3-10. Connect to the generator
Wi-Fi network (MLGXXXX) using a Wi-Fi
enabled mobile device. Then, return to
the browser and click "I'm
Figure 3-10. Connection Screen
Installation and User's Manual for Wi-Fi Module
006629
eady."
