Setup and Operation
Continue Connection Process

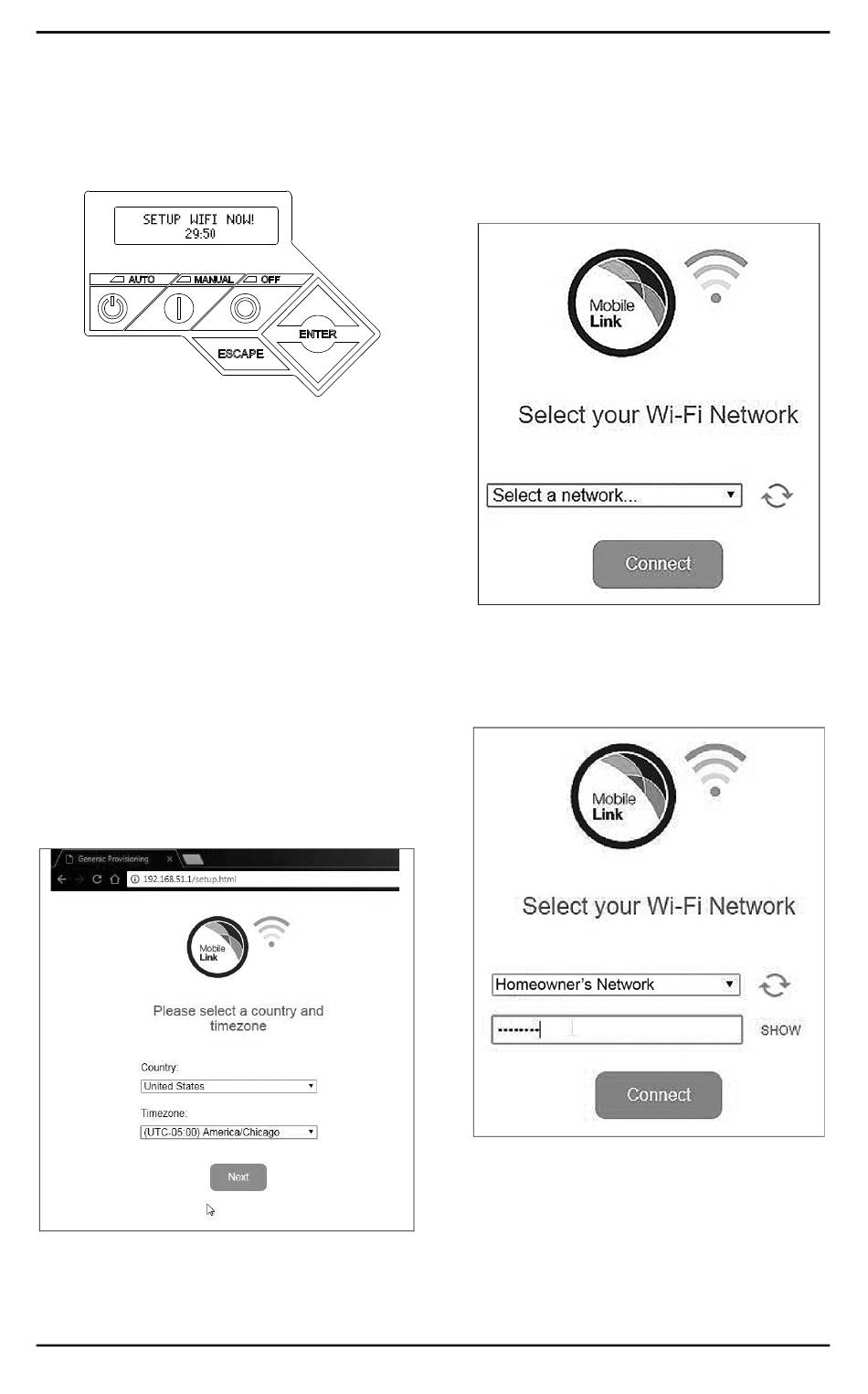

1. See Figure 3-21. The controller display will
change to SETUP WIFI NOW! along with a
timer. You have 30 minutes to connect the
Wi-Fi.
Figure 3-21. Wi-Fi Setup Screen
NOTE: After 30 minutes, the controller will
time out. SETUP WIFI? will reappear on
the controller display. If YES is selected,
the 30 minute countdown timer will restart.
If NO is selected, Wi-Fi setup will be
bypassed.
2. Connect to the generator Wi-Fi network
(MLGXXXX) using a Wi-Fi enabled mobile
device.
3. After the connection is established, open a
web browser and type 192.168.51.1 in the
address bar.
NOTE: The setup page can also be launched
by scanning the Quick Response (QR) Code
on the Wi-Fi data label with your mobile
device if so equipped.
4. See Figure 3-22. Select your country and
time zone.
Figure 3-22. Select Country and Time Zone
14
5. See
network name from the drop-down list.
NOTE: If the homeowner's network is
invisible, select "Manual Configuration" from
the drop-down list and enter the network
credentials.
006627
Figure 3-23. Select Homeowner's Network
6. See
network password and click CONNECT.
006631
Installation and User's Manual for Wi-Fi Module
Figure 3-23. Select the homeowner's
Figure 3-24. Enter the homeowner's
Figure 3-24. Enter Password
006632
006633
