NEUTRIK NC10FRX Assembly Instruction

R
ASSEMBLY INSTRUCTION

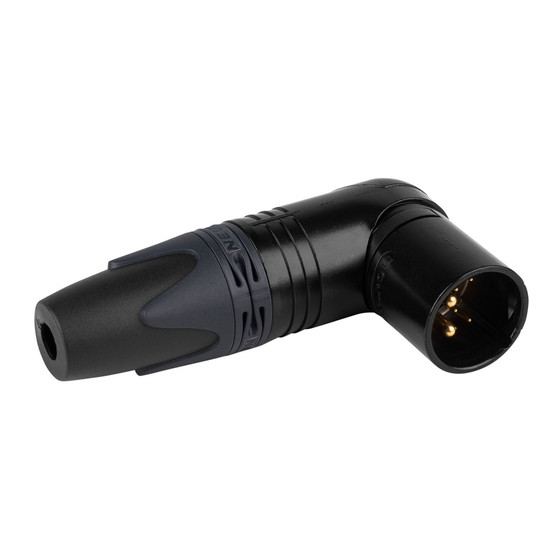

NC10FRX & NC10MRX
A
B
Cable O.D. 8.0 - 10.0 mm
[0.315" - 0.394"]
C
SOLDER
D
E
F
BDA 484
18 [0.71"]
4 [0.16"]
G
|
XLR Cable Connector

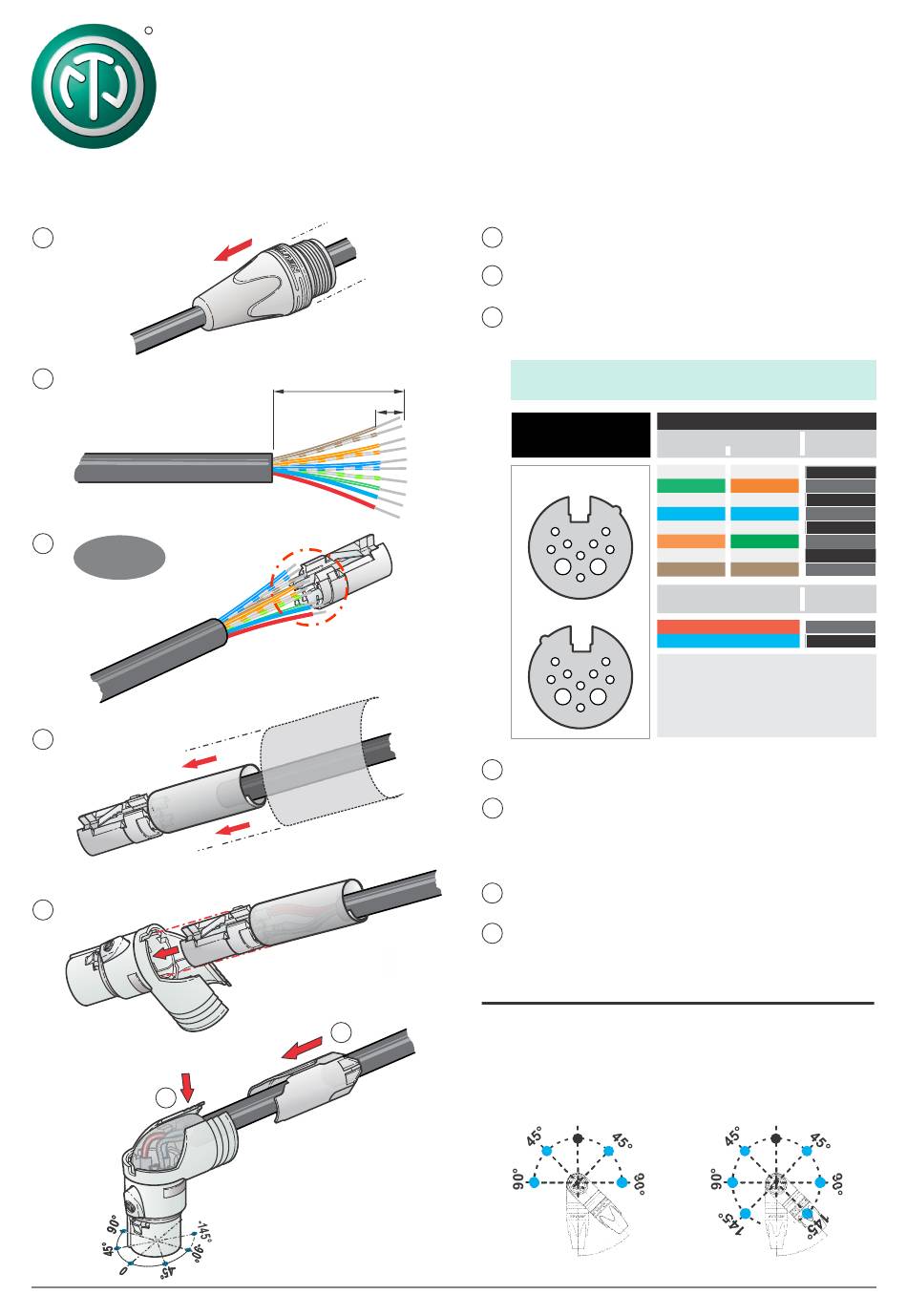

A
Slide the boot onto the cable.
B
Prepare the cable as shown.
C Insert the wires into the terminals and
solder them.
Wiring suggestion under consideration of
EIA / TIA 568 A/B.
Solder
side!
Female
1 8
3 6
7
2 4
5
9
10
Male
8 1
2
7
6 3
4
10
9
5
D
Position the sleeve over the wires.
E
Slide the insert into the housing until it
snaps in place.
Align the insert with the housing.
F
Position the cable.
G
Slide the chuck into the housing.
Pay attention to position the chuck as shown.
5 selectable cable outlet positions on female &
7 position on male connectors.
Female:
0°
Connection
Data
PIN No.
T568A T568B
1
W - G W - O
G O 2
3
W - O W - G
BL BL 4
5
W - BL W - BL
6
O G
7
W - BR W - BR
8
BR BR
Power
DC
9
+
- 10
Male:
0°
