Access Modular Controller 2
4
Installing
4.1
Mounting
The AMC2-4R4 can be attached on a standard 35 mm (1.377 in.) mounting rail using a snap-in
mechanism. Attach the AMC2-4R4 into the upper edge of the mounting rail [1], then push
down the device and snap it onto the rail by pushing it towards the back [2].

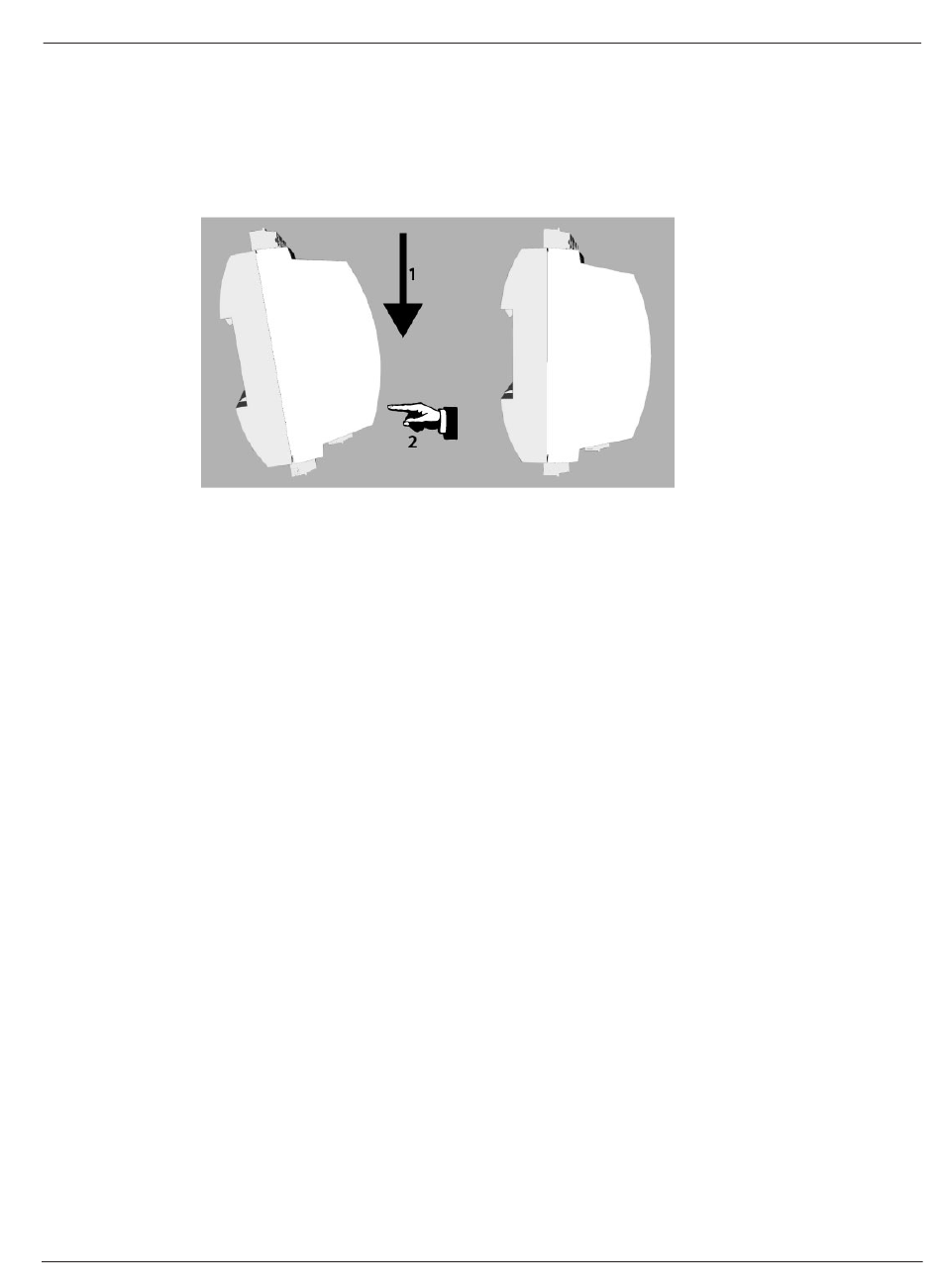

Figure 4.1: Mounting the AMC2 on a mounting rail
Bosch Access Systems B.V.
Installation manual
Installing | en
13
2020-01 | V02 |
