Edwards ClearSight System Setup Manual page 2

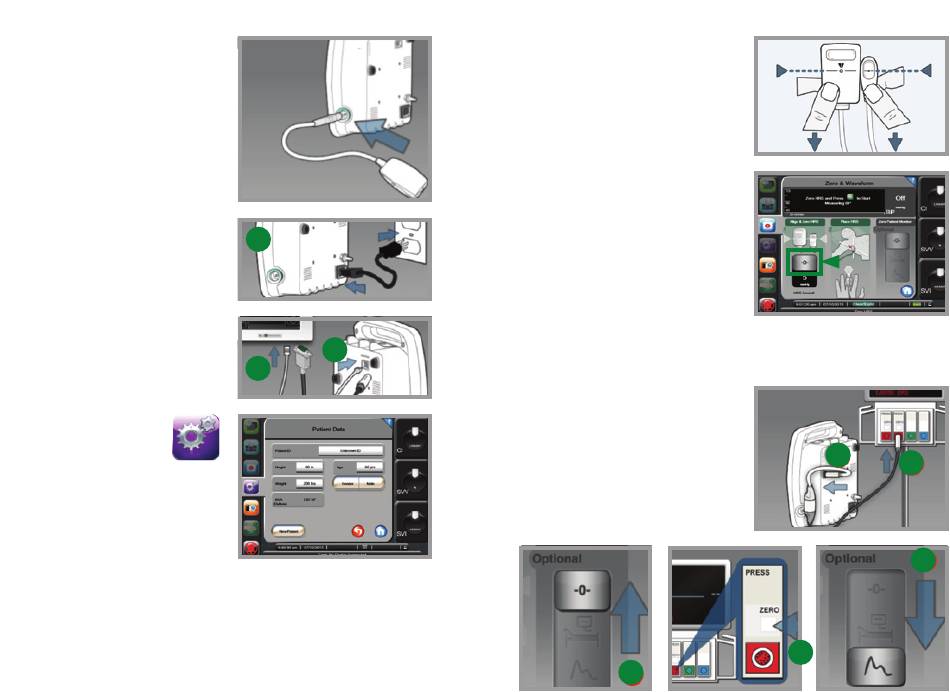

Connecting the Pressure
Controller to the Pump Unit
1. Connect the pressure controller
cord to the right side of the
pump unit.
Connecting the Pump Unit
to the EV1000 Monitor
1. Connect the pump unit to an
electrical outlet (1).
2. Connect the system power
cable and the communication
cable to the EV1000 monitor
panel (2) and pump unit (3).
Entering Patient Data
1. Tap the Settings icon
on the navigation bar.
2. Tap the Patient Data button.
3. Tap the New Patient Data
button or update existing
patient information by tapping
the grey rectangles next to
each field.
NOTE: Accurate measurements of
cardiac output can only be obtained
if the following patient data are properly
entered: gender, age, weight, and height.
4. Tap the Home button to confirm.
1
3
2
Zeroing the HRS
1. Place both ends of the HRS
at the same vertical level.
2. Tap the Clinical Actions icon
on the navigation bar.
3. Tap the Zero & Waveform
button.
4. Tap the Zero button under
Align & Zero HRS.
NOTE: The HRS can be zeroed
before being placed on a patient.
Connecting the Pump Unit
to the Patient Monitor
1. Connect patient monitor
adapter cable to the pump
unit and pressure cable (4).
2. Connect pressure cable to
the patient monitor (5).
3. Move pressure output
selection to zero position (6).
4. Press the Zero button on
connected patient monitor (7).
5. Move the pressure output
selection to signal position (8).
