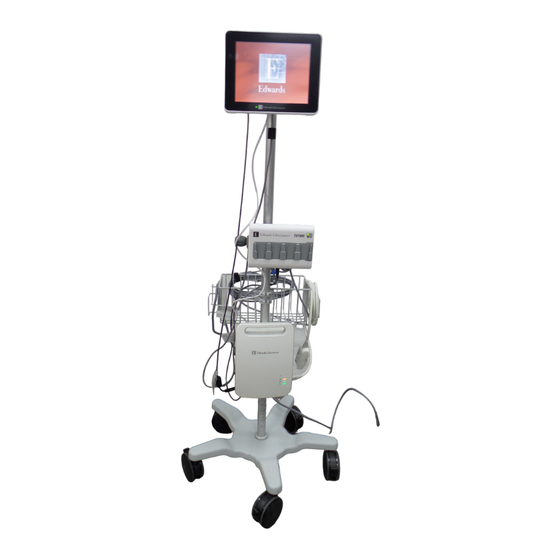

Edwards EV1000 Clinical Platform Setup Manual

ClearSight System / EV1000 Clinical Platform
Setup guide

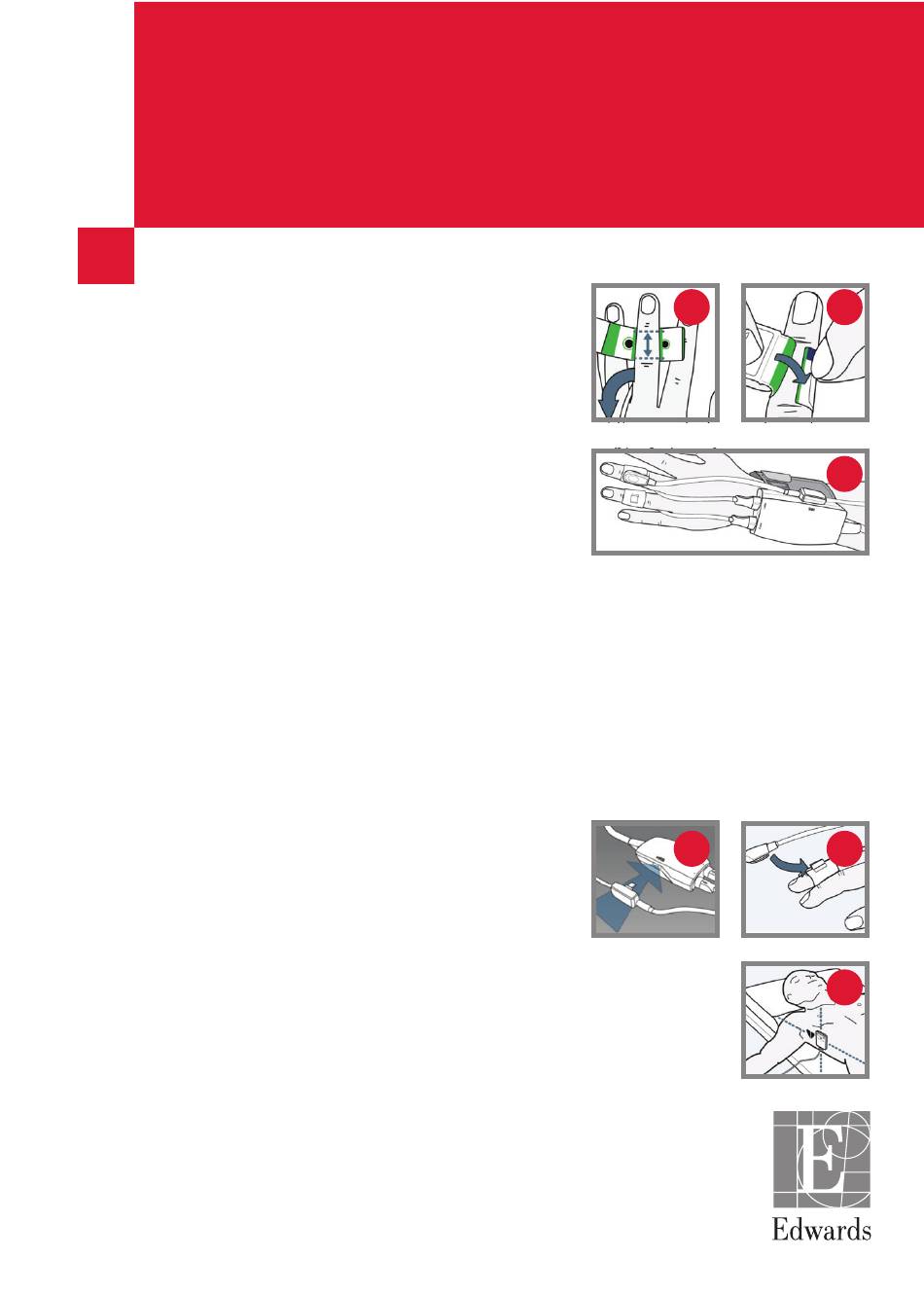

Applying the finger cuff

1. Select the proper size ClearSight finger
cuff by using the ClearSight finger cuff
sizing aid.
2. Place the middle phalanx of the patient's
pointer, middle, or ring finger onto
the cuff and gently lead the cuff cable in
between two finger to the back side of the
hand. The cuff must be lined up between
the first and second knuckles (1).
3. Line the middle phalanx of the finger between the two green lines
on the inside of the cuff.
4. Wrap the ClearSight finger cuff tightly around the finger. Do not rotate
the ClearSight finger cuff after application (2).
5. Gently lead the cuff cable and air hose between two fingers toward the
back of the hand (3).
6. Connect the ClearSight finger cuff to the pressure controller (3).
7. If using a second finger cuff, repeat steps 1-4 on adjacent
finger with cuff #2.

Applying the heart reference sensor (HRS)

1. Connect the HRS to the pressure
controller (4).
2. Attach the finger end of the HRS to
a single ClearSight finger cuff (5).
3. Attach the heart end of the HRS to
the patient at the phlebostatic axis (6).
NOTE: Changing body position during the measurement
may require reapplication of the heart end of the HRS.
1 2
3
4 5
6
