Edwards Acumen IQ Cuff Setup Manual

Acumen IQ Cuff
Setup Guide

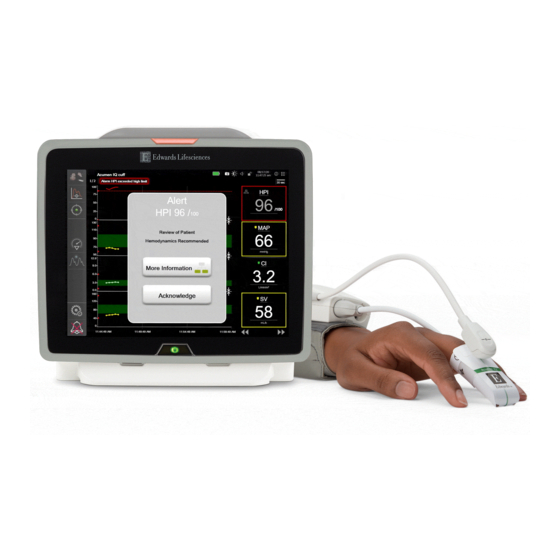

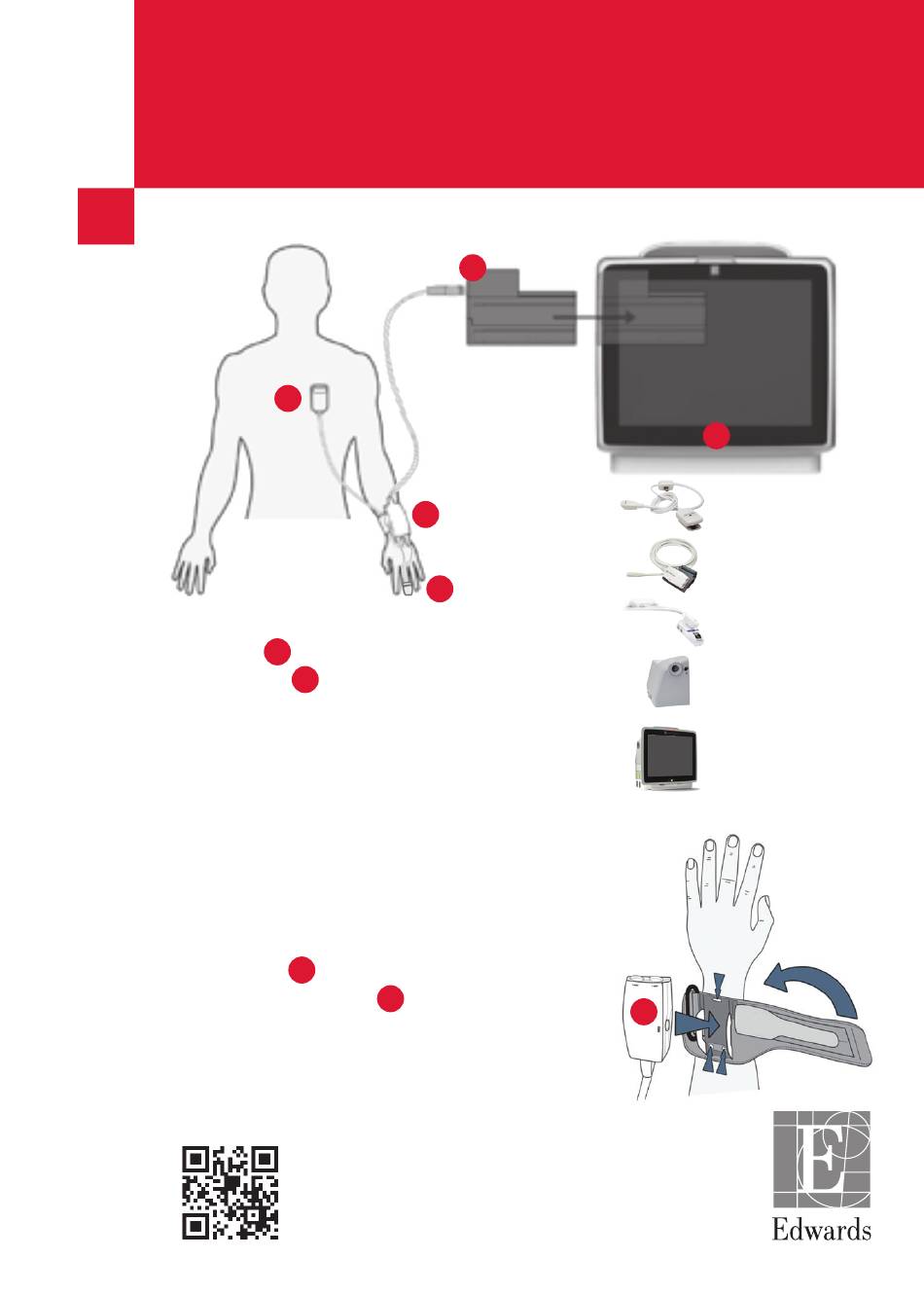

Figure 1
A
• Step 1: Insert the HemoSphere ClearSight
module D into the large technology slot
of monitor E . The module will click when
properly engaged. Press the power button to
turn on the HemoSphere advanced monitor.
• Step 2: Select the "new patient"
button and enter patient data,
and then select the "non-invasive"
button on the "monitoring mode
selection" window
• Step 3: Connect the pressure
B
controller to the HemoSphere
ClearSight module
wrapping the pressure controller band
around the patient's wrist (either wrist
can be used), attaching the pressure
controller to the band (Figure 2)
Scan QR code for a video of
these setup instructions
D
B
C
D followed by
E
A. Heart reference
sensor
B. Pressure controller
kit
C. Acumen IQ cuff
D. HemoSphere
ClearSight module
E. HemoSphere
advanced monitor
Figure 2
B
