I N S T A L L A T I O N I N S T R U C T I O N S
Above Cart/Ceiling
Above Wall
(FCA813 shown)
Below Cart/Ceiling
Below Wall
Fusion™ Small Above/Below Accessory Shelf
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
FCA803/813
Advertisement
Related Manuals for CHIEF Fusion FCA803
Summary of Contents for CHIEF Fusion FCA803

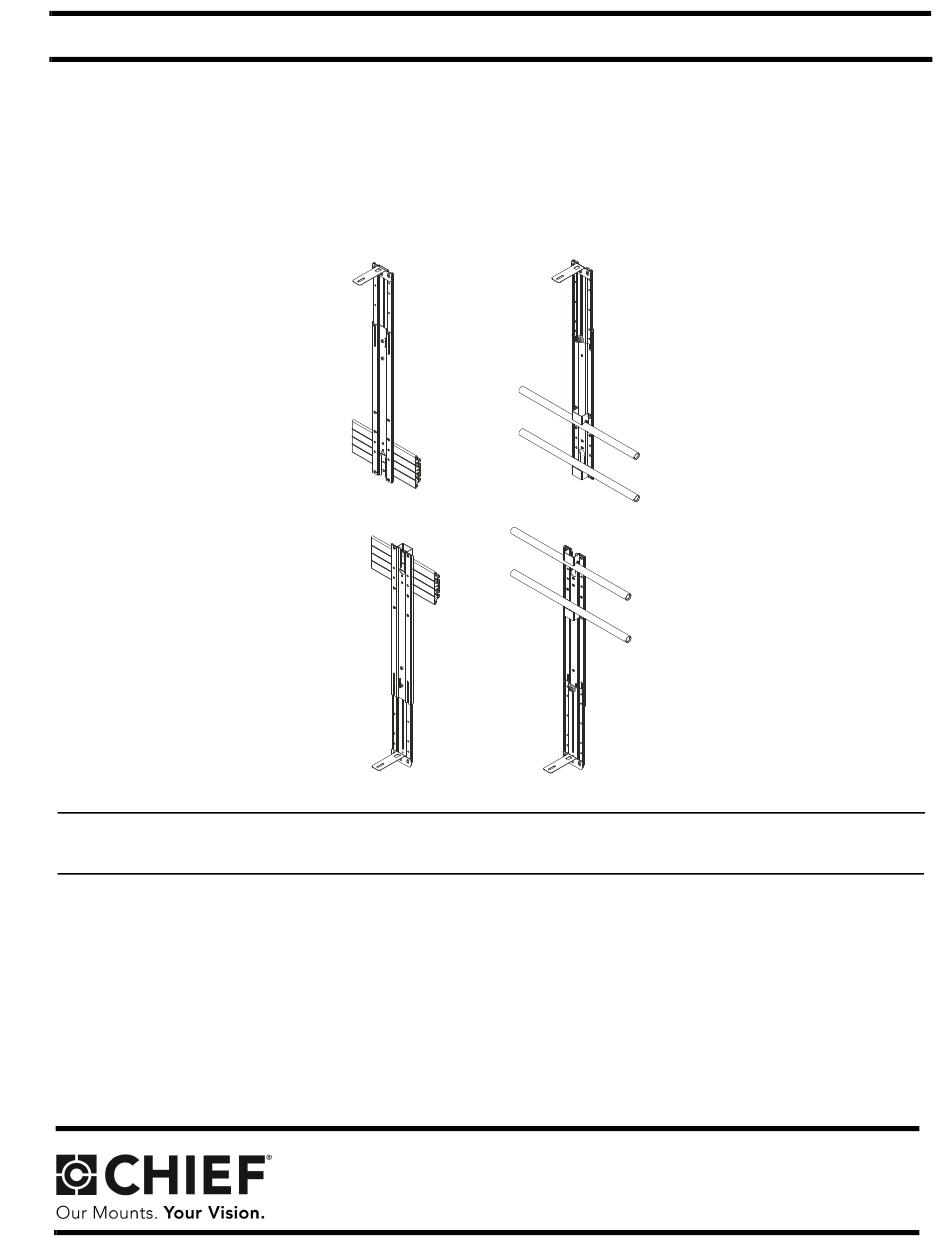

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Above Cart/Ceiling Above Wall (FCA813 shown) Below Cart/Ceiling Below Wall Fusion™ Small Above/Below Accessory Shelf Spanish Product Description German Product Description Portuguese Product Description Italian Product Description...
-
Page 2: Important Safety Instructions
Chief product to which an accessory and/or component is attached. ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may 2 lbs (0.9 kg) have a component attached or setting on it. COMPONENT:... - Page 3 Installation Instructions FCA803/813 DIMENSIONS - FCA803 12.0-14.3 540.74 21.29 [304.8-363.2] 16.8-18.3 MIN RANGE [426.7-464.8] MAX RANGE FUSION WALL ABOVE MOUNT SETUP 17.5-19.0 104.76 [444.5-482.6] 4.12 13.0-15.0 578.84 MAX RANGE 22.79 [330.2-381.0] 424.67 OVERALL MAX MIN RANGE 16.72 OVERALL MIN CENTER OF MOUNT CENTER OF MOUNT 415.42 11.2-13.7...
- Page 4 FCA803/813 Installation Instructions DIMENSIONS - FCA813 670.70 19.0 - 21.7 26.41 892.56 35.14 27.9 - 29.4 878.85 20.6 - 22-3 [708.7 - 746.8] 34.60 [523.2 - 566.4] MAX RANGE MIN RANGE 593.71 18.3 - 20.0 23.37 892.56 35.14 28.0 - 31.0 [711.2 - 787.4] MAX RANGE 878.85...
-
Page 5: Tools Required For Installation
Installation Instructions FCA803/813 LEGEND Tighten Fastener Phillips Screwdriver Apretar elemento de fijación Destornillador Phillips Befestigungsteil festziehen Kreuzschlitzschraubendreher Apertar fixador Chave de fendas Phillips Serrare il fissaggio Cacciavite a stella Bevestiging vastdraaien Kruiskopschroevendraaier Serrez les fixations Tournevis à pointe cruciforme Loosen Fastener Open-Ended Wrench Aflojar elemento de fijación Llave de boca... -
Page 6: Assembly And Installation
FCA803/813 Installation Instructions ASSEMBLY AND INSTALLATION Attaching Shelf to Wall Mount Below Installation NOTE: If attaching to cart or ceiling mount, proceed to Attach Shelf to Cart/Ceiling Section. NOTE: FCA803 and FCA813 shelves may be installed above Use two 1/4-20 x 1/4” button head cap screws (H) and two or below displays. - Page 7 Installation Instructions FCA803/813 NOTE: Attaching Shelf to Cart/Ceiling Mount Refer to Table 1 and dimension drawings on pages 3- 4 to determine the extension level based on extension IMPORTANT ! : If installing to a 2x1 display cart using distance from mount center. the FCA623 accessory, proceed to “Installing to FCA623 Below Wall Mount Accessory”...
- Page 8 FCA803/813 Installation Instructions Installing to FCA623 Accessory NOTE: Refer to Table 2 and dimension drawings on pages 3- 4 to determine the extension level based on extension IMPORTANT ! : Steps 6-10 only apply if installing to distance from mount center. FCA623 accessory.
- Page 9 Installation Instructions FCA803/813 Above Installation Attaching Shelf to Wall Mount Use two 1/4-20 x 1/4” button head cap screws (H) and two Assembling Shelf to Upright Bracket large washers (F) to secure shelf bracket (C) to main bracket (B). (See Figure 13) Install two 1/4-20 x 1/2”...
- Page 10 FCA803/813 Installation Instructions Attaching Shelf to Cart/Ceiling Mount NOTE: Refer to Table 3 and dimension drawings on pages 3- 4 to determine the extension level based on extension IMPORTANT ! : If installing to a 2x1 display cart using distance from mount center. the FCA623 accessory, proceed to “Installing to FCA623 Table 3: Above Wall Mount Accessory”...
- Page 11 Installation Instructions FCA803/813 Installing to FCA623 Accessory Table 4: Above Cart/Ceiling NOTE: Steps 6-10 only apply if installing to FCA623 Extension distance from center of accessory. mount (in.) Use two 1/4-20 x 7/16” button head cap screws (N), two 12.2-14.2 Minimum (FCA803) large washers (F) and two 1/2”...
- Page 12 FCA803/813 Installation Instructions Height Adjustment Camera (FCA813 shown) Loosen hardware used to attach main bracket (B) to upright (example - bracket (A). (See Figure 22) not included) Adjust shelf height as desired. (See Figure 22) NOTE: For all above display installations, it is recommended that the shelf be positioned so that it rests on top of display to help ensure an even mount.
- Page 13 Installation Instructions FCA803/813...
- Page 14 FCA803/813 Installation Instructions...
- Page 15 Installation Instructions FCA803/813...
