Summary of Contents for Nibe GV-HR 130

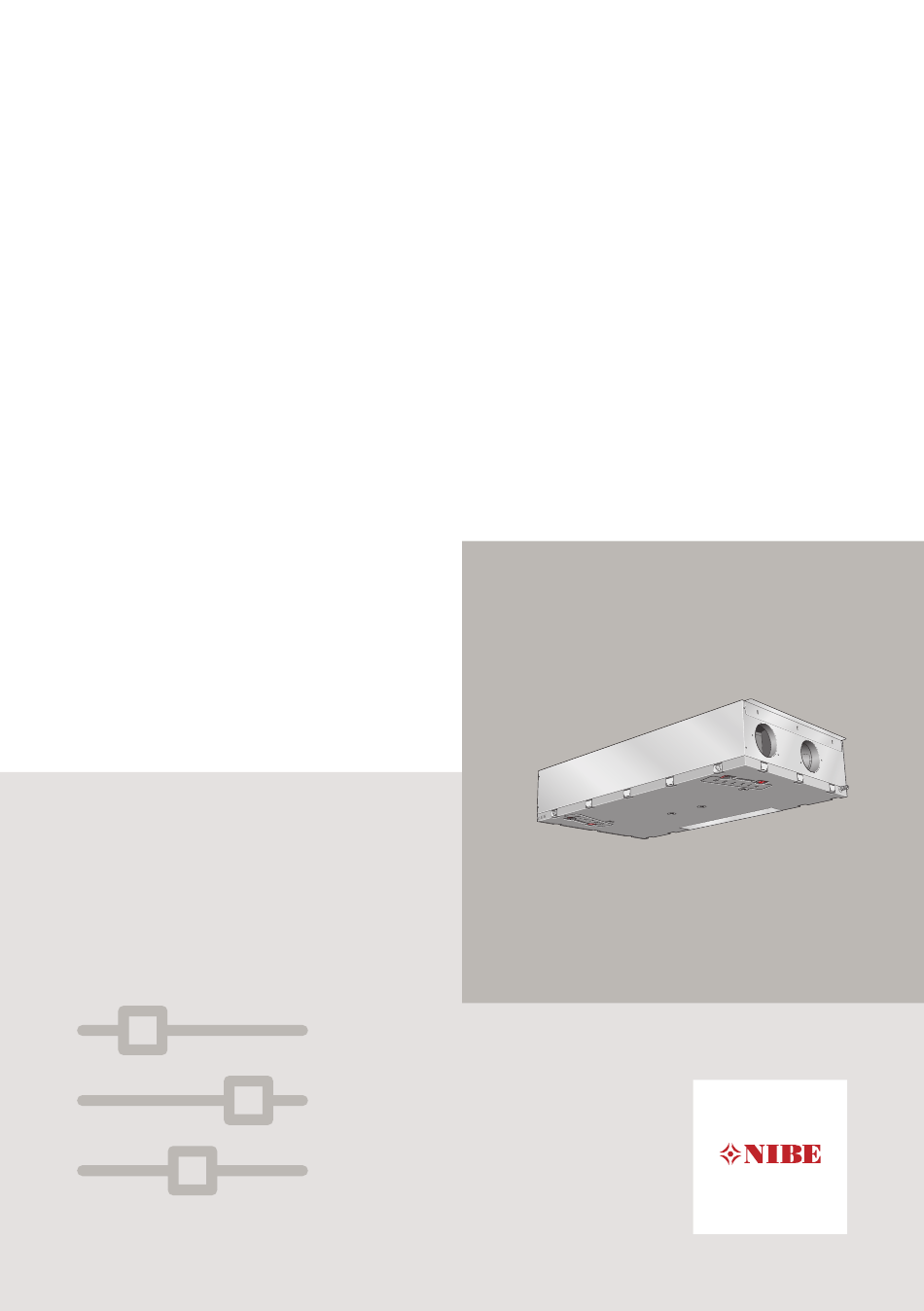

- Page 1 UHB EN 1840-2 USER MANUAL 431887 Ventilation heat exchanger NIBE GV-HR 130...
- Page 2 L E K Knob L E K...
-
Page 3: Table Of Contents
2 The heating installation – the heart of the house Ventilation heat exchanger function Contact with GV-HR 130 Maintenance of GV-HR 130 3 GV-HR 130 – at your service Set the date and time Setting the calendar Adjust the installation... -
Page 4: Important Information
Serial number must always be given It is hereby certified that the installation has been carried out in accord- ance with the instructions in the Installer manual and applicable regula- tions. Date __________________ Signed _________________________ Chapter 1 | Important information NIBE GV-HR 130... -
Page 5: Safety Information
This symbol indicates danger to person or machine . Caution This symbol indicates important information about what you should observe when maintaining your installation. This symbol indicates tips on how to facilitate using the product. NIBE GV-HR 130 Chapter 1 | Important information... -
Page 6: Serial Number
Serial number The serial number can be found at the top left. Serial number L E K L E K Caution Always give the product's serial number when reporting a fault. Chapter 1 | Important information NIBE GV-HR 130... -
Page 7: Gv-Hr 130 - An Excellent Choice
GV-HR 130 - An excellent choice GV-HR 130 is a ventilation heat exchanger with high temperature effi- ciency and low energy consumption. EXCELLENT PROPERTIES FOR GV-HR 130: • DC fans Two energy efficient DC fan (Class A) are integrated in the ventilation heat exchanger. -
Page 8: The Heating Installation - The Heart Of The House
20 °C 4 °C Room air Rumsluft Uteluft Outdoor air The temperatures are only examples and may vary between different installations and time of year. Chapter 2 | The heating installation – the heart of the house NIBE GV-HR 130... -
Page 9: Ventilation Heat Exchanger Function
A fan blows the heated air into those rooms that have supply air inlets. The temperatures are only examples and may vary between different installations and time of year. NIBE GV-HR 130 Chapter 2 | The heating installation – the heart of the house... -
Page 10: Contact With Gv-Hr 130
Contact with GV-HR 130 DISPLAY There is a display unit on GV-HR 130, which is used to communicate with the installation. Here you: • switch on or switch off the installation • set the ventilation and adjust the installation to your needs. - Page 11 This mode is ideal when there are a lot of people in the home. Speed 4 Forced fan speed. The mode is ideal when you want to lower the in- door temperature slightly, e.g. in the summer. NIBE GV-HR 130 Chapter 2 | The heating installation – the heart of the house...
- Page 12 No changes can be made. Temperature Here you set the temperature for any re-heater (external component that is not supplied by NIBE). Chapter 2 | The heating installation – the heart of the house NIBE GV-HR 130...
- Page 13 • scroll in menus and between options. • increase the values. Exit Used to: • go back to the previous menu. • change a setting that has not been confirmed. NIBE GV-HR 130 Chapter 2 | The heating installation – the heart of the house...
- Page 14 Help Used to: • obtain a brief description of the current menu. Chapter 2 | The heating installation – the heart of the house NIBE GV-HR 130...
- Page 15 To move the cursor in the main menu and its submenus, press " " or " ". The relevant menu is marked with an arrow. Select the menu by pressing " ". NIBE GV-HR 130 Chapter 2 | The heating installation – the heart of the house...
- Page 16 ". The background of the value turns grey, which means that you have accessed the setting mode. User menu SET 20.9 °C Temperature Preheat Reheat Level 3-4 hrs Filter change 3mon Humid.contr. Chapter 2 | The heating installation – the heart of the house NIBE GV-HR 130...
- Page 17 In many menus there is a symbol that indicates that extra help is available. To access the help text, press the Help button. To exit help mode, press the Exit button or " ". NIBE GV-HR 130 Chapter 2 | The heating installation – the heart of the house...
-
Page 18: Maintenance Of Gv-Hr 130
Cleaning the air filter The supply air filter in GV-HR 130 is of a type that should not be cleaned, but has to be replaced instead. The exhaust air filter in GV-HR 130 should be cleaned regularly; how often depends on the amount of dust in the ventilation air, among other things. - Page 19 You will receive a reminder about filter cleaning in the display. The default setting for the reminder is every three months, however, if the power to GV-HR 130 is interrupted the countdown begins again. Switch off the ventilation heat exchanger.
- Page 20 No condensation water is generated in the ventilation heat exchanger during the warmer periods of the year and the water seal will dry out. During the colder parts of the year, GV-HR 130 can produce several litres of condensation water every day. If the condensation outlet is not working, this may cause water damage inside the home.
- Page 21 It is important that the metal rail is positioned on the same side, so that the heat exchanger is angled in the same direction as previously when reinstalling. Heat exchanger NIBE GV-HR 130 Chapter 2 | The heating installation – the heart of the house...
-
Page 22: Gv-Hr 130 - At Your Service
Setting range: 0 – 59 Factory setting: 0 Set the current minute here. WEEK DAY Menu Setting range: 1 – 7 Factory setting: 1 Set the current weekday here. Chapter 3 | GV-HR 130 – at your service NIBE GV-HR 130... - Page 23 Setting range: 1 – 12 Factory setting: 1 Set the current month here. YEAR Menu Setting range: 2015 – 2099 Factory setting: 2018 Set the current year here. NIBE GV-HR 130 Chapter 3 | GV-HR 130 – at your service...
-
Page 24: Setting The Calendar
Fan speed Here you can schedule changes to the ventilation. If the installation has a re- heater (external component that is not supplied by NIBE), you can also set a re- duction in the heating of the home. Chapter 3 | GV-HR 130 – at your service... - Page 25 Here you can copy settings from one day to another. Select the day you want to copy information from as well as the day you want to paste information to. Then select "copy now". NIBE GV-HR 130 Chapter 3 | GV-HR 130 – at your service...
-
Page 26: Adjust The Installation
If you select "off", the re-heater will not be in operation, even if there is a need. Consult the re-heater’s installation instructions for more information. Caution The temperature is adjusted in User menu, menu 1 - "Temperature". Chapter 3 | GV-HR 130 – at your service NIBE GV-HR 130... - Page 27 Here you set the number of months between alarms to act as a reminder to clean the filters in GV-HR 130. HUMIDITY CONTROL Menu Setting range: "On" and "off" Factory setting: "Off" You activate humidity control here. NIBE GV-HR 130 Chapter 3 | GV-HR 130 – at your service...
-
Page 28: Adjust The Display
The time and the room temperature are displayed and the brightness is re- duced slightly. Black screen. PAUSE TIME Menu Operating menu Setting range: 1 - 10 Default value: 10 Chapter 3 | GV-HR 130 – at your service NIBE GV-HR 130... - Page 29 LIGHT DAY Menu Setting range: 0 - 100% Factory setting: 100% Here you set the desired maximum brightness during use in a fully lit room. NIBE GV-HR 130 Chapter 3 | GV-HR 130 – at your service...
- Page 30 Here you can reset the settings to the factory values. Choose between 2 levels: heavy and light. All settings apart from "Speed (level)", "Filter timer", "Calendar" and defrosting temperatures. All settings. Chapter 3 | GV-HR 130 – at your service NIBE GV-HR 130...
- Page 31 Select "on" if you want a code to be necessary to enter the menu Calendar. USER MENU Menu Setting range: "On" and "off" Factory setting: "Off" Select "on" if you want a code to be necessary to enter User menu. NIBE GV-HR 130 Chapter 3 | GV-HR 130 – at your service...
- Page 32 Here you select a code for menu 12-17. Select the 4 digits that you want the code to comprise. Press " " after each digit to confirm your selection. Chapter 3 | GV-HR 130 – at your service NIBE GV-HR 130...
-
Page 33: Get Information
SD card . ALARM LOG To make troubleshooting easier, the installation’s alarms are stored here. If "on" is beside the alarm, it is activated. NIBE GV-HR 130 Chapter 3 | GV-HR 130 – at your service... -
Page 34: Disturbances In Comfort
If there is an alarm, some kind of malfunction has occurred, which is shown by text in the display. ALARM If there is an alarm, a malfunction has occurred that GV-HR 130 cannot rectify itself. The display shows what type of alarm it is. Chapter 4 | Disturbances in comfort... -
Page 35: Troubleshooting
Start by checking the following possible fault sources: • All feed cables to GV-HR 130 are connected. • That the display cable is connected to GV-HR 130. • Group and main fuses of the accommodation. • The property's earth circuit breaker. - Page 36 – Check User menu, menu 4 - "Level 3-4 hour" and select "off" to return automatically to level 2. • External switch for changing the fan speed activated. – Check any external switches. • Silencers not correctly installed. – Contact your installer! Chapter 4 | Disturbances in comfort NIBE GV-HR 130...
-
Page 37: Technical Data
5 Technical data Detailed technical specifications for this product can be found in the in- stallation manual (nibe.eu). NIBE GV-HR 130 Chapter 5 | Technical data... -
Page 38: Glossary
Air that is drawn into the GV-HR 130 and heated. SUPPLY AIR The heated air that is blown from GV-HR 130 and out into the room. SUPPLY AIR DEVICE Valves, usually in the ceiling, where the heated supply air is blown out and aids in heating up the accommodation. -
Page 39: Contact Information
NIBE Energy Systems OY, Juurakkotie 3, 01510 Vantaa Tel: +358 (0)9-274 6970 E-mail: info@nibe.fi www.nibe.fi NIBE Energy Systems France Sarl,Zone industrielle RD 28, Rue du Pou du Ciel, 01600 Reyrieux Tel : 04 74 00 92 92 E-mail: info@nibe.fr www.nibe.fr... - Page 40 WS version: a593 (working edition) Publish date: 2018-10-01 08:08 This manual is a publication from NIBE Energy Systems. All product illustrations, facts and data are based on the available information at the time of the publica- tion’s approval. NIBE Energy Systems makes reservations for any factual or printing errors in this manual.
