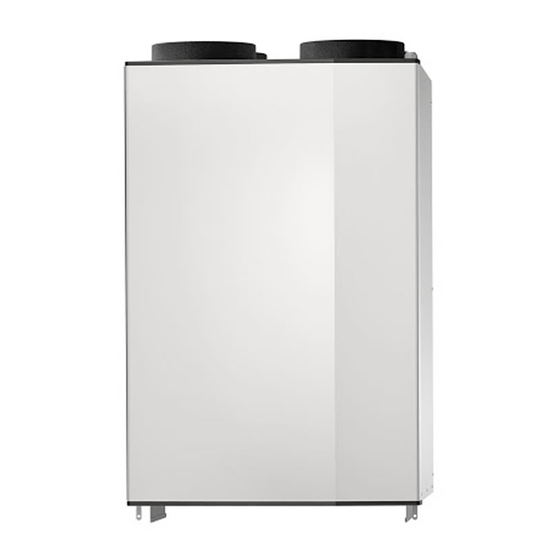

NIBE ERS 10-400
INSTALLER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERS 10-400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nibe ERS 10-400

  • Page 1 IHB EN 1948-1 INSTALLER MANUAL 531749 Ventilation heat exchanger NIBE ERS 10-400...
  • Page 3: Table Of Contents

    General ventilation connections Ventilation flow Adjusting ventilation Dimension and ventilation connections Preheating the outdoor air 5 Electrical connection Connecting to main product Outside air sensor 6 Commissioning and adjusting Preparations Filling and venting Start-up and inspection NIBE ERS 10-400 Table of Contents...
  • Page 4: Important Information

    This symbol indicates danger to person or ma- chine . Caution This symbol indicates important information about what you should consider when installing or servicing the installation. This symbol indicates tips on how to facilitate using the product. Chapter 1 | Important information NIBE ERS 10-400...
  • Page 5: Recovery

    In addition, fill in the page for the installation data in the User Manual. Description Notes Signa- Date ✔ ture Electricity (page 14) Connections Main voltage Fuses property Earth circuit-breaker NIBE ERS 10-400 Chapter 1 | Important information...
  • Page 6: Delivery And Handling

    10 °C and max. 35 °C. NOTE Ensure that there is necessary space (300 mm) above the exhaust ventilation heat exchanger for installing ventilation hoses. Chapter 2 | Delivery and handling NIBE ERS 10-400...
  • Page 7: Supplied Components

    Remove the air filter. Slacken off the screws that hold the insulation in place. FRONT COVER Lift the front cover upwards slightly. Pull the hatch towards yourself. Pull the insulation straight out. NIBE ERS 10-400 Chapter 2 | Delivery and handling...
  • Page 8: The Ventilation Heat Exchanger Design

    3 The ventilation heat exchanger design XL32 XL34 XL33 XL31 HQ11 HQ10 QN37 EP26 XL40 Chapter 3 | The ventilation heat exchanger design NIBE ERS 10-400...
  • Page 9: Pipe Connections

    Temperature sensor, supply air HQ10 Exhaust air filter BT23 Temperature sensor, outdoor air HQ11 Supply air filter QN37 Bypass damper Miscellaneous Type plate Condensation water trough Designations according to standard EN 81346-2. NIBE ERS 10-400 Chapter 3 | The ventilation heat exchanger design...
  • Page 10: Pipe And Ventilation Connections

    When hanging on a wooden wall, a vibration damper is recommended to prevent vibration being transferred. Install the enclosed bracket to the wall. Install ERS 10 on the brackets. 4 x Ø160 Chapter 4 | Pipe and ventilation connections NIBE ERS 10-400...
  • Page 11: Condensation Water Drain

    NOTE During operation, negative pressure arises in the ventilation heat exchanger, which means that a water column of at least 100 mm must be guaranteed in the water seal. NIBE ERS 10-400 Chapter 4 | Pipe and ventilation connections...
  • Page 12: General Ventilation Connections

    EXHAUST AIR DUCT /KITCHEN FAN Exhaust air Exhaust air duct (kitchen fan) must not be connected to Supply air ERS 10. Chapter 4 | Pipe and ventilation connections NIBE ERS 10-400...
  • Page 13: Preheating The Outdoor Air

    EAH heats the incoming outdoor air so that the extract air temperature does not fall to the stated level. See the Installer Manual for EAH for more information. BT23 EB17 ERS 10 NIBE ERS 10-400 Chapter 4 | Pipe and ventilation connections...
  • Page 14: Electrical Connection

    The communication cable (W2) in ERS 10 must be con- If the supply cable is damaged, only nected to the main product. NIBE, its service representative or Main product similar authorised person may replace it to prevent any danger and damage.
  • Page 15: Outside Air Sensor

    (BT23) in ERS 10. The enclosed outdoor air sensor EAH is placed in the outdoor air duct and connected to the accessory board (AA5) according to the Installer Manual for EAH. NIBE ERS 10-400 Chapter 5 | Electrical connection...
  • Page 16: Commissioning And Adjusting Preparations

    An incorrectly set ventilation flow can damage the house and may also increase energy con- Temperature efficiency Temperatur sumption. (°C) NOTE Order a ventilation adjustment to complete the setting. (l/s) 100 150 350 400 Airflow Luftflöde (m³/h) Chapter 6 | Commissioning and adjusting NIBE ERS 10-400...
  • Page 17: Program Settings

    (QN37) must open here. "Months btwn filter alarms": Set how often the filter alarm must be displayed. When ERS 10 is activated, the other ventilation menus will also light up. NIBE ERS 10-400 Chapter 7 | Program settings...
  • Page 18: Disturbances In Comfort

    • Closed, too much choke or blocked ventilation device. section (page 18). – Check and clean the exhaust air devices. • Fan speed in reduced mode. Chapter 8 | Disturbances in comfort NIBE ERS 10-400...
  • Page 19 – Enter the main product's menu 1.2 and select "nor- mal". • External switch for changing the fan speed activated. – Check any external switches. • Silencers not correctly installed. – Check the silencers. NIBE ERS 10-400 Chapter 8 | Disturbances in comfort...
  • Page 20: Accessories

    Height 245 mm Height 345 mm Part no. 089 756 Part no. 089 757 Height 445 mm Height 385-635 mm Part no. 067 522 Part no. 089 758 Chapter 9 | Accessories NIBE ERS 10-400...
  • Page 21: Technical Data

    10 Technical data Dimensions 4 x Ø160 NIBE ERS 10-400 Chapter 10 | Technical data...
  • Page 22: Technical Specifications

    General ventilation connections on page 12. Information about pre-/disassembly See section Recovery on page 5. This installer manual can also be accessed at nibe.eu. The annual electricity consumption kWh/year Annual heating saved, kWh primary energy per year Average: 4,483 prim/year...
  • Page 23 NIBE ERS 10-400 Chapter 10 | Technical data...
  • Page 24: Electrical Circuit Diagram

    Symbols on ERS 10, 4 Start-up and inspection Setting the ventilation, 16 Symbols, 4 Symbols on ERS 10, 4 Technical data Electrical circuit diagram, 23 The design of the exhaust air module, 8 List of components, 9 Troubleshooting, 18 Item register NIBE ERS 10-400...
  • Page 27: Contact Information

    Tel: +46 (0)433-27 3000 kuzmin@evan.ru info@nibe.se nibe-evan.ru nibe.se SWITZERLAND NIBE Wärmetechnik c/o ait Schweiz Industriepark, CH-6246 Altishofen Tel. +41 (0)58 252 21 00 info@nibe.ch nibe.ch For countries not mentioned in this list, contact NIBE Sweden or check nibe.eu for more information.
  • Page 28 WS version: a1 (working edition) Publish date: 2019-12-09 10:02 This manual is a publication from NIBE Energy Systems. All product illustrations, facts and data are based on the available information at the time of the publication’s approval. NIBE Energy Systems makes reservations for any factual or printing errors in this manual.
