Summary of Contents for Nibe ERS S10

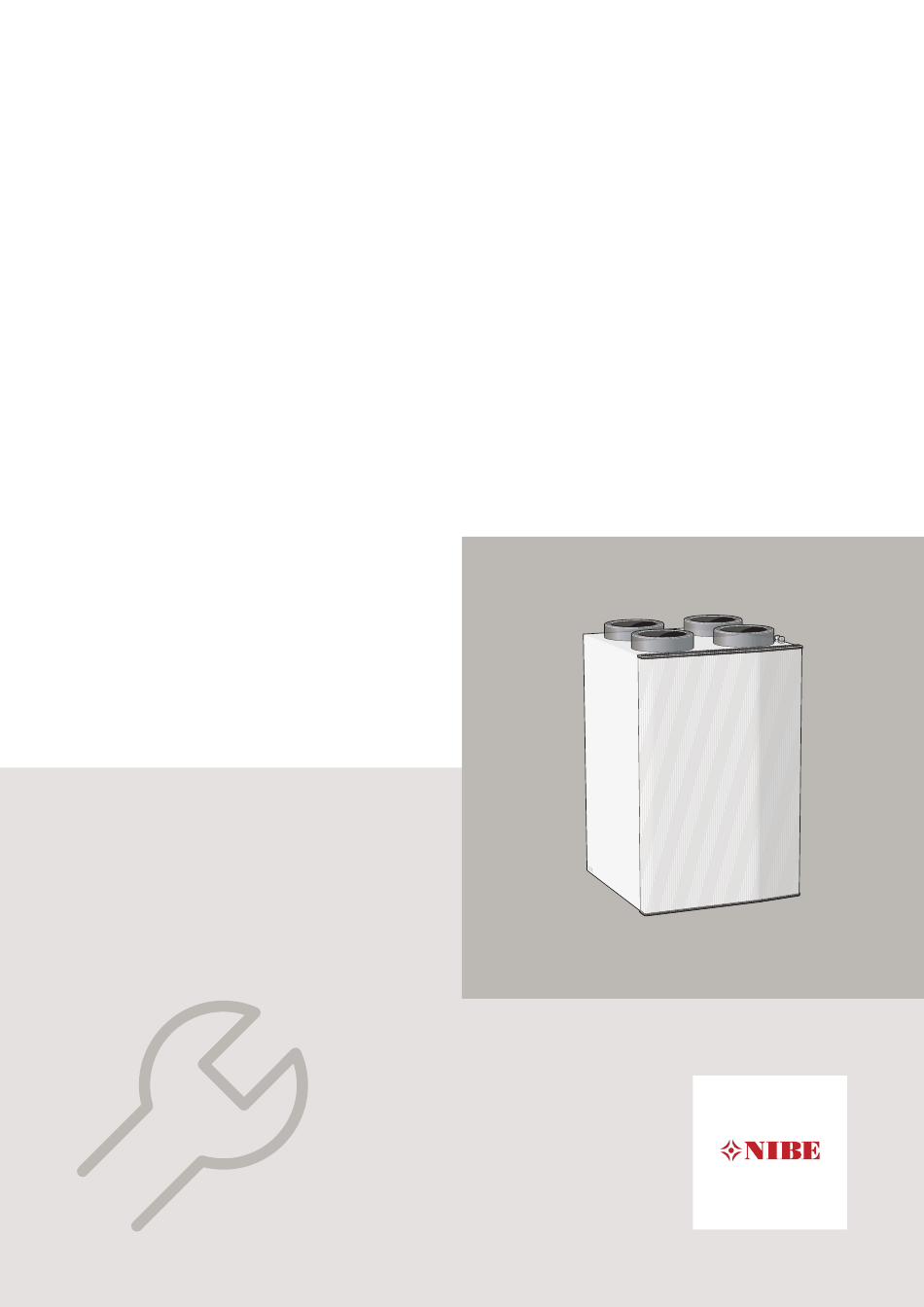

- Page 1 IHB EN 2014-2 INSTALLER MANUAL 531299 Ventilation heat exchanger NIBE ERS S10-400...
-
Page 3: Table Of Contents
Troubleshooting 2 Delivery and handling 9 Accessories Transport and storage Assembly 10 Technical data Supplied components Dimensions ERS S10 Removing the covers Technical specifications Removing parts of the insulation Energy labelling Electrical circuit diagram 3 The ventilation heat exchanger design... -
Page 4: Important Information
This symbol indicates danger to person or ma- chine . Caution This symbol indicates important information about what you should consider when installing or servicing the installation. This symbol indicates tips on how to facilitate using the product. Chapter 1 | Important information NIBE ERS S10-400... -
Page 5: Recovery
No special tools are required for access. Improper disposal of the product by the user results in administrative penalties in accordance with current le- gislation. NIBE ERS S10-400 Chapter 1 | Important information... -
Page 6: Inspection Of The Installation
In addition, fill in the page for the installation data in the User Manual. Description Notes Signa- Date ✔ ture Electricity (page 14) Connections Main voltage Fuses property Earth circuit-breaker Chapter 1 | Important information NIBE ERS S10-400... -
Page 7: Delivery And Handling
Assembly Supplied components ERS S10 is installed using the enclosed rail on a solid wall. Noise from the fans can be transferred to the rail. • Install with its back to an outside wall, ideally in a room where noise does not matter, in order to eliminate noise problems. -
Page 8: Removing The Covers
The insulation in the front must be removed to access the internal parts. Remove the air filter. Slacken off the screws that hold the insulation in place. Pull the insulation straight out. Chapter 2 | Delivery and handling NIBE ERS S10-400... -
Page 9: The Ventilation Heat Exchanger Design
3 The ventilation heat exchanger design XL34 XL32 XL31 XL33 HQ11 HQ10 QN37 EP26 XL40 W102 W101 NIBE ERS S10-400 Chapter 3 | The ventilation heat exchanger design... -
Page 10: Pipe Connections
Exhaust air fan Supply air fan HQ10 Exhaust air filter HQ11 Supply air filter QN37 Bypass damper Miscellaneous Type plate Condensation water trough Designations according to standard EN 81346-2. Chapter 3 | The ventilation heat exchanger design NIBE ERS S10-400... -
Page 11: Pipe And Ventilation Connections Mounting
When hanging on a wooden wall, a vibration damper is recommended to prevent vibration being transferred. Install the enclosed bracket to the wall. Install ERS S10 on the brackets. Screw ERS S10 firmly into place on the bracket. NIBE ERS S10-400 Chapter 4 | Pipe and ventilation connections... -
Page 12: Condensation Water Drain
• A duct in a masonry chimney stack must not be used for extract air or outdoor air. NOTE To ensure a sealed connection to ERS S10, the supplied hose clips must be used for connect- ing the air ducts. -
Page 13: Ventilation Flow
Ventilation flow Preheating outdoor air Connect ERS S10 so that all the exhaust air, except kit- If the extract air temperature is too low, the supply air chen duct air (kitchen fan), passes through the heat ex- fan slows down to prevent the condensation water in changer (EP26) in the product. -
Page 14: Electrical Connection
ERS S10 must not be powered during installa- Use cable type LiYY, EKKX or similar. tion. AA5-S2... -
Page 15: Outside Air Sensor
AA2-X30 ERS S10 AA5-X4 ERS S10 no. 1 ERS S10 no. 2 If more ERS S10 are to be installed, they must be con- nected in series as illustrated: Main product AA2-X30 ERS S10 no. 3 ERS S10 no. 4... -
Page 16: Commissioning And Adjusting
100 150 350 400 Airflow Luftflöde An incorrectly set ventilation flow can damage (m³/h) the house and may also increase energy con- sumption. NOTE Order a ventilation adjustment to complete the setting. Chapter 6 | Commissioning and adjusting NIBE ERS S10-400... -
Page 17: Program Settings
The fans stop Menu system until the input is open. ERS S10 does not have a built-in level monitor; for this S-SERIES reason, select Level monitor in the menu when an ex- ternal level monitor is connected. - Page 18 Menu 1.2.6 - Filter cleaning interval Cleaning interval Setting range: 1 – 24 months Clean the filter in ERS S10 regularly; how often depends on the amount of dust in the ventilation air. Set the interval for the reminder to clean the filter in this menu.
-
Page 19: Disturbances In Comfort
– Enter the main product's menu 1.2.1 and select "normal". • That the main product is running and that the supply cable to ERS S10 is connected. • External switch for changing the fan speed activated. • Group and main fuses of the accommodation. -
Page 20: Accessories
Installer Manual for the relevant accessory. ELECTRICAL AIR HEATER EAH 20 In cold weather, EAH 20-1800 heats the incoming out- door air slightly to prevent the condensation in ERS S10 from freezing. Used mainly in colder climates. Part no. 067 603... -
Page 21: Technical Data Dimensions Ers S10
10 Technical data Dimensions ERS S10 4 x Ø160 EAH 20-1800 NIBE ERS S10-400 Chapter 10 | Technical data... -
Page 22: Technical Specifications
General ventilation connections on page 12. Information about pre-/disassembly See section Recovery on page 5. This installer manual can also be accessed at nibe.eu. The annual electricity consumption kWh/year Annual heating saved, kWh primary energy per year Average: 4,483 prim/year... -
Page 23: Electrical Circuit Diagram
ELECTRICAL CIRCUIT DIAGRAM NIBE ERS S10-400 Chapter 10 | Technical data... -
Page 24: Item Register
Important information, 4 Recycling, 5 Inspection of the installation, 6 Installation area, 7 Marking, 4 Menu system, 17 Pipe and ventilation connections Exhaust air duct, 12 Program settings, 17 Recycling, 5 Removing the covers, 8 Item register NIBE ERS S10-400... -
Page 27: Contact Information
Tel: +46 (0)433-27 3000 kuzmin@evan.ru info@nibe.se nibe-evan.ru nibe.se SWITZERLAND NIBE Wärmetechnik c/o ait Schweiz Industriepark, CH-6246 Altishofen Tel. +41 (0)58 252 21 00 info@nibe.ch nibe.ch For countries not mentioned in this list, contact NIBE Sweden or check nibe.eu for more information. - Page 28 WS version: a1 (working edition) Publish date: 2020-04-01 12:03 This manual is a publication from NIBE Energy Systems. All product illustrations, facts and data are based on the available information at the time of the publication’s approval. NIBE Energy Systems makes reservations for any factual or printing errors in this manual.
