Federal Signal Corporation IPX-GRL5 Installation Instructions

Federal Signal Corporation IPX-GRL5 Installation Instructions

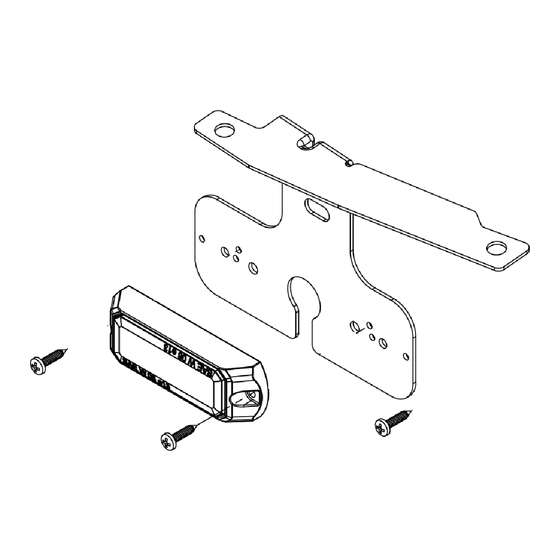

Mounting bracket kit

Advertisement

Quick Links

25500004A REV. A 312

Safety Message to Installers of Warning Light Equipment

People's lives depend on your proper installation and servicing of Federal Signal products. It is important to
read and follow all instructions shipped with this product and the original product. In addition, listed below
are some other important safety instructions and precautions you should follow:
To properly install the lighting system, you must have a good understanding of automotive systems,
along with proficiency in the installation and use of safety warning equipment.
Do not install equipment or route wiring in the deployment path of an airbag.
If a vehicle seat is temporarily removed, verify with the vehicle manufacturer if the seat needs to be
recalibrated for proper airbag deployment.
You should frequently inspect the light system to ensure that it is operating properly and that it is
securely attached to the vehicle.
When drilling into a vehicle structure, be sure that both sides of the surface are clear of anything that
could be damaged.
Refer to the instructions packed with related products for additional precautions and information.
File these instructions in a safe place and refer to them when maintaining and/or reinstalling the product.
This product contains high-intensity LEDs. Do not stare directly into the lights at a close range or
permanent damage to your eyesight may occur.
Failure to follow all safety precautions and instructions may result in property damage, serious injury, or death.

Overview

This publication has instructions for using the IPX-GRL5 Grill Mounting Kit to mount the Impaxx
Impaxx 600, Viper
EXT, MicroPulse
®
Sedan.
NOTE: For electrical installation instructions, refer to the Installation and Maintenance Instructions packed
with the lighthead.

Unpacking the Product

After unpacking the product, inspect it for damage that may have occurred in transit. If it has been damaged,
do not attempt to install or operate it. File a claim immediately with the carrier, stating the extent of damage.
Carefully check all envelopes, shipping labels, and tags before removing or destroying them. Ensure that the
parts in the Table 1 on page 2 are included in the package. If you are missing any parts, contact Customer
Support at 1-800-264-3578, 7 a.m. to 5 p.m., Monday through Friday (CT).
3 and MicroPulse 6 lightheads to the grille of the Ford
Installation Instructions for the
IPX-GRL5 Mounting Bracket Kit
300,
®
Interceptor
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPX-GRL5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Federal Signal Corporation IPX-GRL5

  • Page 1 Failure to follow all safety precautions and instructions may result in property damage, serious injury, or death. Overview This publication has instructions for using the IPX-GRL5 Grill Mounting Kit to mount the Impaxx 300, ®...
  • Page 2 Mounting Instructions for Impaxx , MicroPulse™, and Viper ® ® Table 1 Mounting kit contents Qty. Description Part Number Bracket, DS Grille Mount, Interceptor Sedan 861300015 Bracket, PS Grille Mount, Interceptor Sedan 861300016 Mounting the Lights IMPORTANT: Plan all cable routing before the installation. AIRBAG DEPLOYMENT—Do not install equipment or route wiring in the deployment path of an airbag.
  • Page 3 Mounting Instructions for Impaxx , MicroPulse™, and Viper ® ® 3. To access the top of the grille, disassemble the vehicle per the manufacturer’s service manual. 4. See Figure 4 on page 4. Remove the two clip nuts on the grille as shown, then reinstall them to hold the bracket to the underside of the grille.
  • Page 4 8. Test the lights for proper operation. Getting Technical Support and Service Federal Signal Corporation will service your equipment or provide technical assistance with any problems that cannot be handled locally. Any product returned to Federal Signal for service, inspection, or repair must be accompanied by a Return Material Authorization number.
