Stanley OMNILOCK 45HOM Installation Addendum

Connecting cables
Grounding
wire
Module bracket
Escutcheon mounting screws
Wire inlet

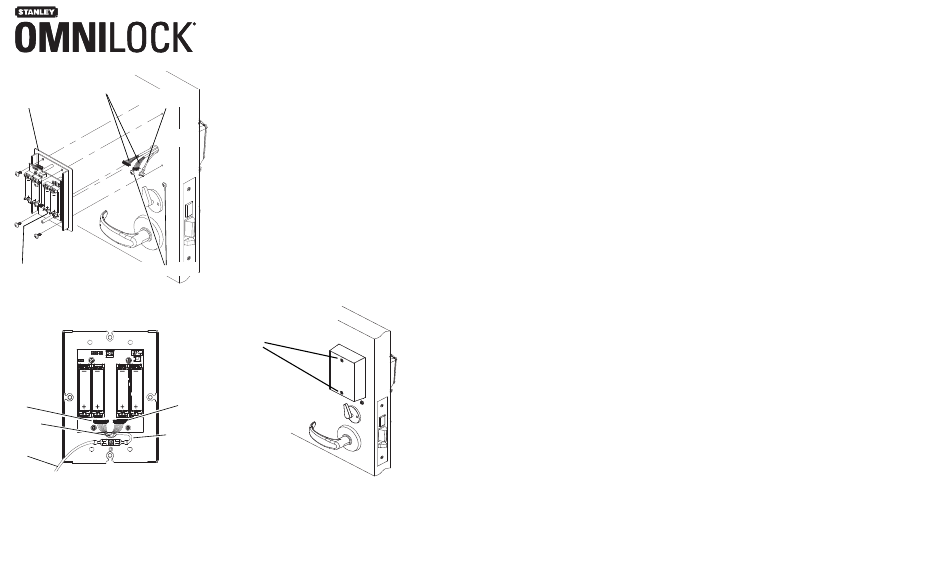

Figure 1 Inside circuit module
12 Pin 10 Pin
Connector
Connector
Wire inlet
Grounding
wire
Cover
grounding
wire
Figure 2 Wire connections to circuit module
T83317/Rev A 0000000 ER-7991-12 Jan 2010
Stanley Omnilock
a Product Group of Stanley Security Solutions, Inc.
Installation Addendum for
Stanley Omnilock 45HOM
Extreme Weatherized Locks
45HOM Extreme Weatherized Mortise Locks
This addendum begins at step 11 of Installation Instructions for Stanley
Omnilock 45HOM Mortise Locks T83312.
1 Insert the escutcheon standoffs into the predrilled holes.
2 Thread connecting cables, motor wire and grounding wire through the
door cable hole. Use screws and washers to attach the escutcheon from
the inside of the door. See Figure 1.
Note: Ensure that no wires are pinched when attaching the escutcheon to the
door.
3 Thread the connecting cables motor wire and grounding wire through the
module bracket wire inlet.
4 Attach the module bracket to the door with the proper mounting screws.
5 Connect the wires and batteries as shown in Figure 2.
6 Secure the module cover with the security screws provided. See Figure 3.
7 Continue with step 14 of the Installation Instructions for Stanley Omnilock
45HOM Mortise Locks T83312 to complete the installation.
Security
screws
Figure 3 Inside view of weatherized model
