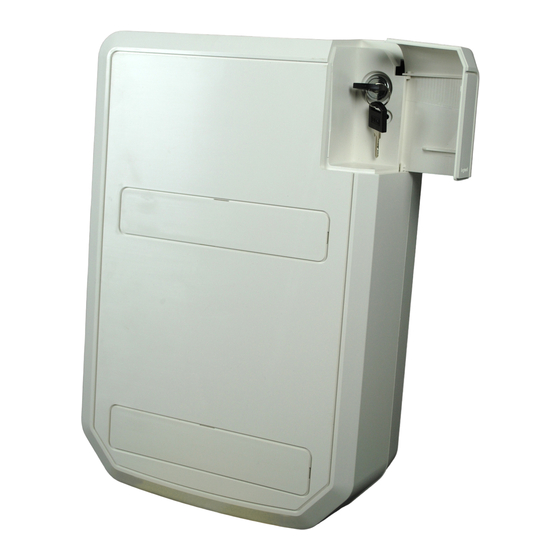

LEGRAND NME1250AP Installation Instructions

NME1250 P
Nonmetallic Wireless ccess Point
Mounting Enclosure
I N S T L L T I O N I N S T R U C T I O N S
Installation Instruction No.: E 1327R1 – Updated July 2010
C UTION: To reduce the risk of electrical shock, always disconnect the network lines before servicing or disassembling this equipment.

Step 1

Step 3 Trim around opening.
Knife (Not included)
Open
Legrand/Wiremold electrical systems conform to and should be
properly grounded in compliance with requirements of the current
National Electrical Code or codes administered by local authorities.
ll electrical products may present a possible shock or fire
hazard if improperly installed or used. Legrand/Wiremold electrical
products may bear the mark of a Nationally Recognized Testing
Laboratory (NRTL) and should be installed in conformance with current
local and/or the National Electrical Code.
IMPORT NT: Please read all instructions
before beginning.

Step 2

Raceway
ccess Point

Step 4

#10 Screw (Included)
#10 Wall nchor
(Included)
