Basic Optics Light Source
Included Equipment
Basic Optics Light Source
Universal AC Adapter
Spare Bulb (stored under access cover) 526-044

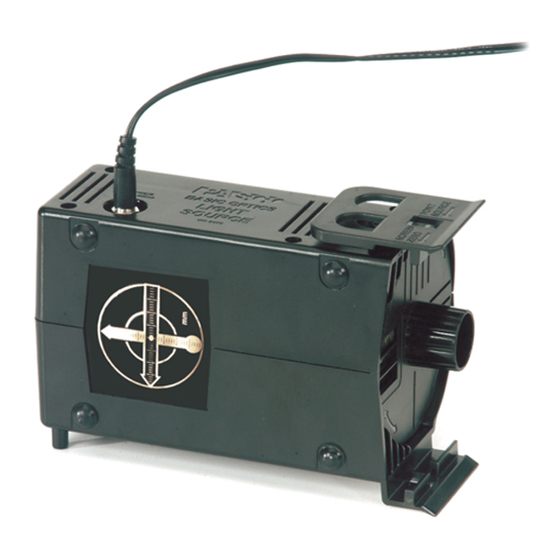

Introduction
The OS-8470 Basic Optics Light Source is suitable for a vari-
ety of experiments and demonstrations. You can place it in
three different orientations on a tabletop or mount it on a
PASCO Basic Optics Bench or Dynamics Optics Carriage. It
functions as a bright point source, an illuminated
crossed-arrow object, a primary-color source, and a ray box
with up to five parallel rays.
Equipment Setup
Power
Connect the included universal AC adapter to the light
source's power port. Plug the adapter into a power outlet (100
to 240 VAC).
800-772-8700
OS-8470
Optics Bench or Carriage Mounting
Part Number
OS-8470
540-072

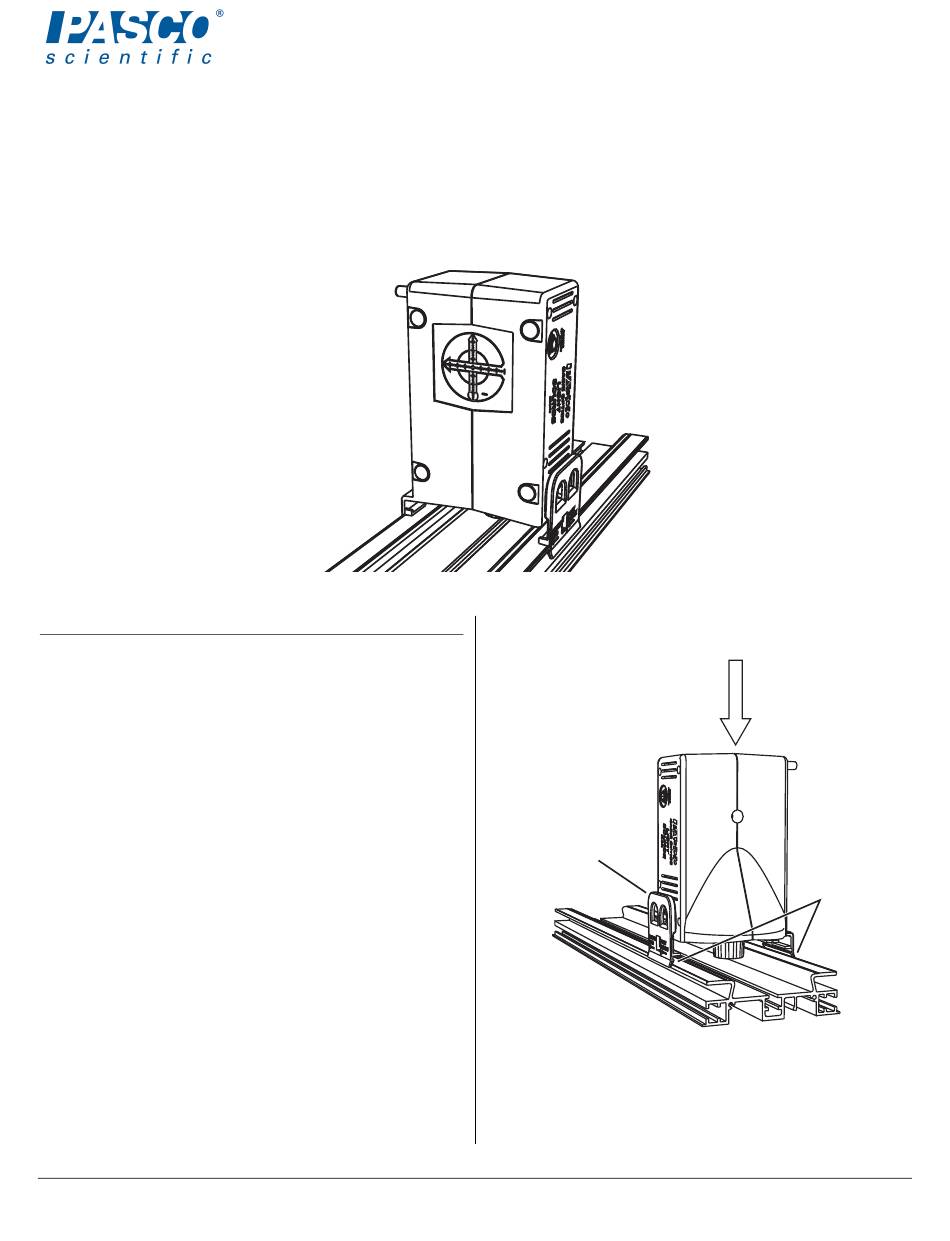

To mount the light source on a Basic Optics Bench, place it
vertically on the bench and press down; the outer tabs of the
light source snap into the side slots of the bench. (Attach the
light source to a Dynamics Optics Carriage in the same way.)
Marks on the tabs indicate the horizontal positions of the point
Instruction Sheet
Release lever
012-09517C
Press down
Tabs
www.pasco.com
Advertisement
Related Manuals for PASCO OS-8470
Summary of Contents for PASCO OS-8470
- Page 1 Press down Spare Bulb (stored under access cover) 526-044 Introduction The OS-8470 Basic Optics Light Source is suitable for a vari- Release lever ety of experiments and demonstrations. You can place it in three different orientations on a tabletop or mount it on a Tabs PASCO Basic Optics Bench or Dynamics Optics Carriage.
- Page 2 M o d e l N o . O S - 8 4 7 0 E q u i p m e n t S e t u p source and object screen. To detach the light source, squeeze Illuminated Object the release lever and pull up.
- Page 3 M o d e l N o . O S - 8 4 7 0 B u l b R e p l a c e m e n t Primary Colors Bulb Alignment To produce parallel rays, the filament of the bulb must be located on the imaginary line running through the center of the round opening and the center of the crossed-arrow object screen.
- Page 4 Trademarks PASCO and PASCO scientific are trademarks or registered trademarks of PASCO scientific, in the United States and/or in other countries. All other brands, products, or service names are or may be trademarks or service marks of, and are used to identify, products or services of, their respective owners.
