CYBEX Eagle Incline Pull Owner's Manual page 10

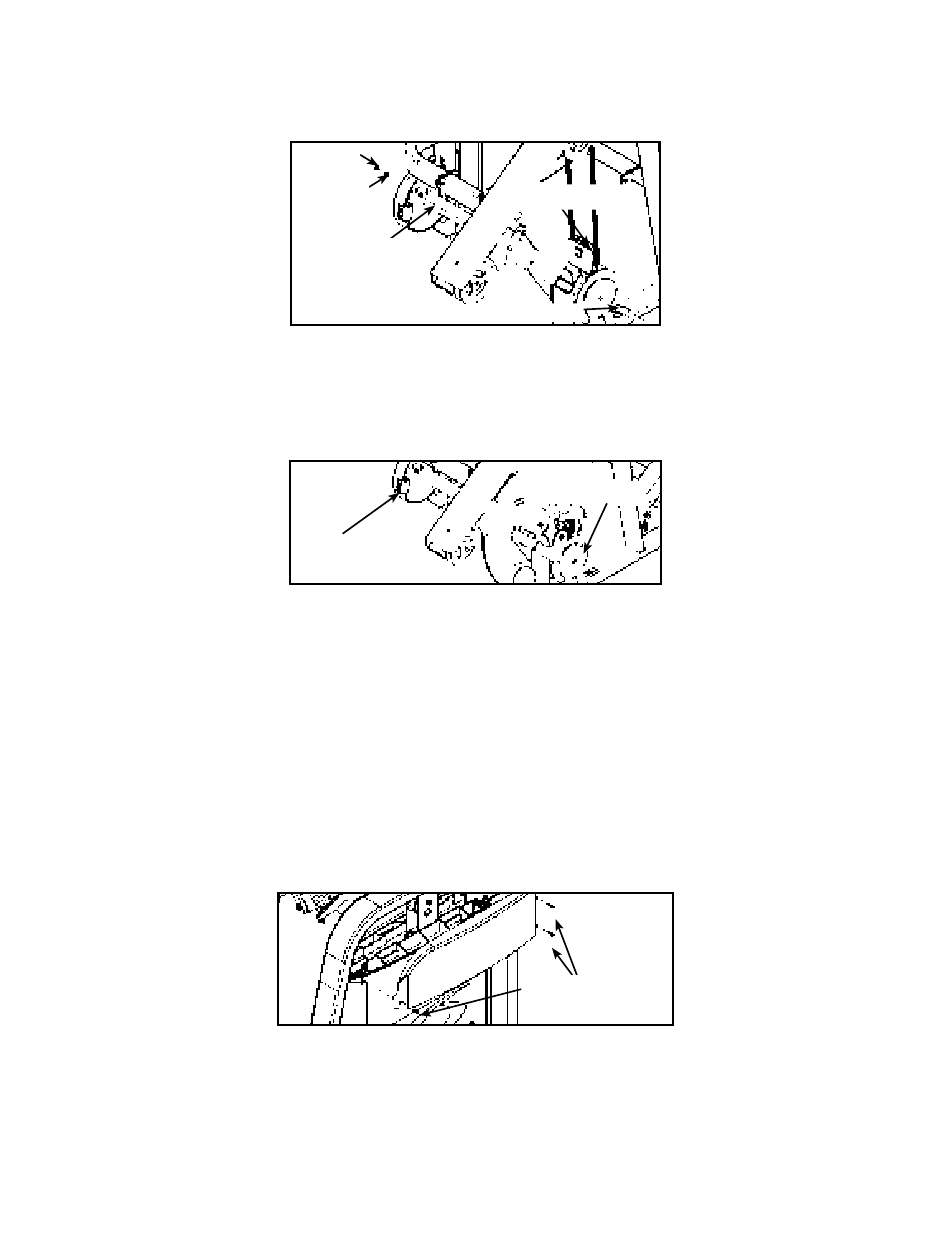

14. Attach pulley shaft using the pivot shaft and BHSCS.
15. Reconnect pulley/cable to pulley bracket.
16. Verify both cables are routed properly.
17. Connect the weight stack belt to the belt clamp of cam.
Install rubber feet
1. Remove each (standard) cone-shaped shipping support using a 3/4" socket or wrench.
2. Cut shipping tie securing top weight.
3. Place rubber feet (supplied with machine) on each foot of the frame.
4. Lift top weight and turn the Increment Weight Adjusting Knob to select 15 lbs (three
increment weights each side.)
5. Remove the three Phillips head screws securing the top (back) shroud and carefully remove
the shroud.
Cybex Owner's Manual
BHSCS
Washer
Pulley Shaft
Set
Screws
10
Pulley/Cable
Pivot Shaft
Cam
Phillips Head
Screw (3)
