Summary of Contents for Cleanmate TRANSFORMERS Series

  • Page 2: Table Of Contents

    Table of Contents Introduction Safety Introductions Production Features Main Unit and Accessories Battery Connection Battery Charging Method Unit Operations and panel Display 7、8、9 Remote Control Portable Cleaner Operations 10、11 Installing Accessories Dust-bin Cleaning 12、13 Useful Tips 14、15 Specification...
  • Page 3: Introduction

    After each use, empty dust bin, clean filter and brushes to keep it at top performance. If you do not plan to use it for a long period of time, fully charge the battery and then remove the battery from CleanMate unit and store it in a dry, cool environment.
  • Page 4: Production Features

    Product Features There are 2 unique features of this portable portable vacuum cleaner installed in main unit. It can operate automatic or manually handheld. Top Cover LED Panel Dust Bin Portable vacuum Power switch Remote control Charging Socket holder. Working time setting Main power switch High performance &...
  • Page 5: Main Unit And Accessories

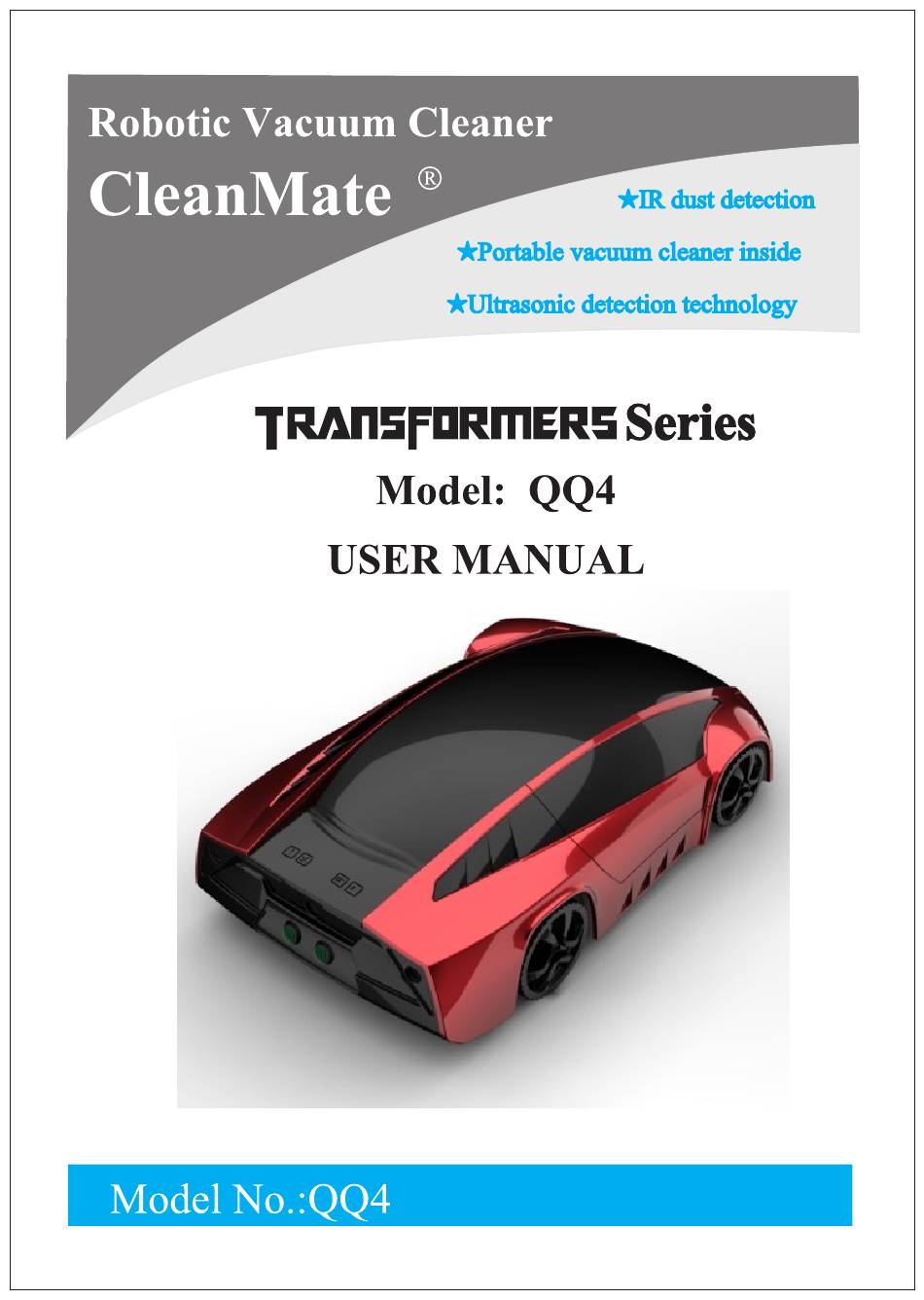

    (inside) Filter and HEPA (HEPA+1) Rechargeable battery x2(inside) Charger Suction nozzle x1(inside) User manual 特性介绍 Side Brush x2 (Spare+1) Robotic Vacuum Cleaner CleanMate ★IR dust detection ★Portable vacuum cleaner inside ★Ultrasonic detection technology Series Model: QQ4 USER MANUAL Model No.:QQ4...
  • Page 6: Battery Connection

    Battery connection Please connect batteries of portable cleaner and main unit before first use. Portable cleaner battery connection Fig 1.Take off the Fig 2.Take out the handy cleaner top cover Attention to the direction of the connector. Fig3 Depress and slide Fig 4.Connect battery and cover it backwards, take off the battery cover...
  • Page 8: Unit Operations And Panel Display 7、8、9

    Unit Operations and Panel Display Button Main Power Switch: Press this power switch button once to power on the QQ4, and press it again will start operation. Operation timer: User can use timer to set up the maximum running time of QQ4 when you power on the QQ4.
  • Page 9 Dust sensoring Dust sensoring Force spot spiral cleaning 3. Error Code: When the cleanmate QQ4 encountered an abnormal problem, it shows one of the following error codes (1-8) on the multi-function LED display. The red Error light will also be on.
  • Page 10 Unit Operations and Panel Display 1.Vacuum Fan indicator: When the Cleanmate QQ4 is powered on, vacuum fan is on and the corresponding Green indicator light is on. User can use rem ote control to turn off the vacuum fan, and this Green indicator will be off.
  • Page 11: Remote Control

    Remote control Set cleaning time from 10 min to 80 min (in 10 min Timer: increment).Actual Cleanmate QQ4 running time varies depending on battery power left. LEFT/RIGHT/REVERSE: Direction keys. If any direction key is pressed and hold down, QQ4 will keep moving toward that direction.
  • Page 12 Portable cleaner operation Turn on the power switch. Please see Fig3. Fig3 Use the Suction nozzle to clean corner or hair. please see Fig4、5、6. Press hook to take nozzle Fig5 Fig6 Fig4...
  • Page 13: Installing Accessories

    Installing Accessories Side Brush Installation and Removal Fig1 Fig2 To remove the side To install the side brush, brush, firmly hold its push it down to mounting base and pull the brush hole until it clicks. out. Fragrance Installation and Removal The QQ4 has a compartment built into it for adding fragrance to the air as the unit cleans.
  • Page 14 Dust-bin cleaning the debris please see Fig2、3. Dump Fig2 Fig3 Clean Filter and HEPA. Please see Fig. 4、5、6. (Use the small brush of nozzle, Fig6) Fig4 Fig5 Fig6 、8、9. Wash the dust-bin, HEPA and filter. Please see Fig7 Fig7 Fig8 Fig9...
  • Page 15: Useful Tips

    Useful Tips Tip#1: Prepare the cleaning area and remove large debris, loose cables, wires, and items that can be easily tangles with brush or knocked over. Remove small items that might Remove vases, glasses, or small obstruct QQ4 operation for faster lamps, etc.
  • Page 16: Useful Tips

    Useful Tips Tip# 4: Fixing jams: If some object gets caught with side brush, turn the QQ4’s power off immediately. Remove anything that caused the jam before using the cleaner again Take out portable cleaner Clean the vacuum QQ4 will make a entry beeping sound when jammed.
  • Page 17: Specification

    主体及附件 Specification Item Spec. NiMH 12.0V Rechargeable, 1200mAh, 2Pcs, Battery Type 2.5hours ofcharging time Adapter/charger Input:100-24Vac,50-60Hz,Max.0.4A Output:20Vdc,1000mA Obstacle avoidance Ultrasonic sensor Capacity of dust bin 0.35L Moving speed 23-27cm/sec.(9-11 in/sec.) Remote control IR Type, Reception 5-7m(16-23 FT) Types of movement Random,Along wall,S-Shape, Auto, Spot-sprial Dimension...
  • Page 18 150804...
