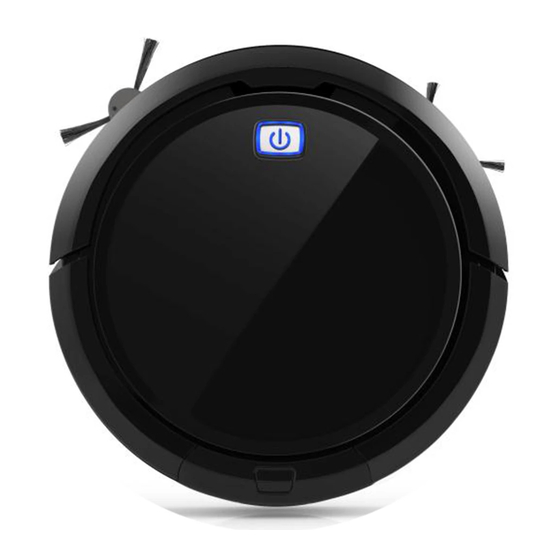

- Page 1 ROBOTIC V ACUUM C LEANER USER MANUAL...
-
Page 2: Table Of Contents
Table of Content Welcome --------------------------------------------------- 01 Important Safety Instructions ----------------------- 02 Product and Accessories ----------------------------- 03 About the Robot ----------------------------------------- 04 Function Smart System --------------------------------------------- 05 Cleaning System ----------------------------------------- 07 Get Started Remove the Protective Packaging ------------------ 08 Install the Battery ----------------------------------------- 08 Install the Recharging Base --------------------------- 09... -
Page 3: Welcome
Welcome Dear Valued Customers: Thank you for choosing CleanMate and our new generation robotic vacuum cleaner. As smart home appliances have entered millions of homes in the world, it is wise to choose the best smart home appliances to enjoy the comfort and ease of our lives. For the best performance of this product, please kindly read through this manual carefully before use this product . -
Page 4: Important Safety Instructions
Important Safety Instructions Please read the following safety and operation instructions thoroughly before using this robot. Warranty service is not available for improper usage. Please keep this manual for future reference. To avoid electric shock, do not expose the electronics of your robot, and use indoors in dry location only. 01. -
Page 5: Product And Accessories
Product and Accessories The Robot Recharging Base Rechargeable Battery Remote Control Adaptor Side Brush AAA Battery (X2) HEPA Filter Optional AA Battery (X2) Mop Module Sonic Wall C L E A N M A T E... -
Page 6: About The Robot
About the Robot Upper Cover Dustbin Button The Panel Power Button ( LED display ) Signal LED Display Extendable Side Brush Bottom Caster Wheel Dustbin Roller Brush Wheel Cliff Detect Sensor DC Inlet Sonic Sensors 3-in-1 Kit Remote Control Recharging Base Light Wireless Recharging Base DC Inlet Sonic Wall... -
Page 7: Smart System
Smart System CleanMate App Control the Robot Look up the Cleaning Map Check the Suppliers Status Schedule Cleaning NaviMap® Technology Combine our advanced navigation software with a full suite of Smart Sensors, the robot can map out your home and perform thorough cleaning in less time. - Page 8 Dirt Detect Robot will automatically apply extra cleaning on concentrated areas of dirt, such as high-traffic zones of your home. Dustbin Full Detect Dirt Detect Anti-falling There are Cliff Detect Sensors on the bottom of the robot to prevent the robot from falling down stairs. It's highly suggested to place two obstacles on the place if used on a high floor area.
-
Page 9: Cleaning System
Cleaning System Cleaning Modes Spiral Mode : Best for the concentrated area of dust and debris, the robot will clean in a spiral pattern up to 2 min. Wall-following Mode: Clean along the wall or obstacles for a round to ensure deep cleaning on edges and corners. -
Page 10: Remove The Protective Packaging
Remove the Protective Packaging To best use the robot, remember to remove the protective material. Install the Battery 1. Push the dustbin release button and pull out the dustbin. 2. Flip the robot over, and push the battery into the slot. Push the battery until the hook is completely locked. -
Page 11: Install The Recharging Base
Install the Recharging Base 1. Connect the DC Plug into the recharging base. 2. Place the Recharging Base in an open, uncluttered area against of the wall. Position it at a proper location with at least 60cm on each side and 120cm in front of the recharging base. -
Page 12: Install The Sonic Wall
Install the Sonic Wall Ultrasonic Power Switch LED Light Sonic Wall Guide 1. Turn on the power switch. 2. The sonic wall will turn on/off automatically when the robot is nearby/away from the sonic wall. 3. The effective range of the sonic wall is up to 2.5 meters (8 ft.). -
Page 13: Set Up The App
Set up the App Install Smartphone APP and Connect with Wi-Fi 1.Connect your phone with a Wi-Fi network. 2.Scan the QR code below, or download CleanMate APP in your APP store. Download and Add your robot Follow the instructions, install the app... -
Page 14: The Robot
The Robot LED Light Power Button Bumper Light Power Button Slow-blinking Standby Mode Power Off Working Mode DO NOT TOUCH the robot while it's calibrating when just activating. The blue LED light will blink rapidly then start cleaning. Pause the Robot Use the app or remote to stop cleaning or lift the robot up for 3 sec that it will stop automatically. -
Page 15: Remote Control
Remote Control The remote control already installed with two AAA batteries. If the remote doesn't work, try to install again or replace the batteries. Remote Control Connection Bring the remote control close to the robot within the range of 1 meters. Press both for 3 seconds. - Page 16 Setting time and Cleaning Schedule ScheduleCleaning Local Time Days Time Local Time Setting 1. As illustration, press to activate local time setting. The hour figure blinks in default. 2. Use to switch between hour, minute and weekday. 3. Use to increase or decrease the figures. Speed setting is available by pressing it for 2 seconds.
-
Page 17: Recharging
Recharging Wireless/Wired Charging Wireless/Wired Charging can both work automatically. Wireless Charging Wired Charging Direct Charging 1. When the robot is not at working mode, connect the AC adaptor to the robot directly. 2. Plug the AC power cord and start recharging. DCInlet Remote control is not functional while direct charging. -
Page 18: Mop Module
Mop Module Mop Module Features 1. Separate Design of Wet and Dry Mop-Mop first with wet mop, then clean with dry mop. 2. Adjustable Water Volume-The water supply will stop when power off. 3. Large Water Tank-Supply 200mL water for 60-90min. Add Water to the Tank Tilt the water tank so that the water can flow into the front left corner. -
Page 19: Robot Maintenance
Robot Maintenance 1. Dustbin and Filter It is highly suggested to clean up the Dustbin and the filter after each cleaning cycle. The detailed cleaning process is illustrated as below. 1. Put the robot on top of waste paper, and press the Dustbin button, remove the Dustbin. 2. - Page 20 3 Cleaning the Roller Brush When the roller brush is dirty or tangled with hair, please follow the below instructions to clean it. 1. Turn off the robot. 2. Take out the roller brush. 3. Use the Cleaning Tool to cut tangled hair and remove other debris. 4.
- Page 21 5. Recommended Robot Care Replacement Care Frequency Robot Part Frequency Dustbin After each use Once per week(twice a week in home Every 3 months HEPA Filter with pets) Once per week(twice a week in home Side Brush Every 3 months with pets) Floating Roller Once per week(twice a week in home...
- Page 22 7. Pairing Settings * The robot already pair with the recharging base which can be used immediately. * If there is a replacement/maintenance/new-adding of the robot and accessories, it will need to pair up again. * Robot can pair up to two recharging bases and three sonic walls. Only purchase the accessories from the authorized dealer.
-
Page 23: Troubleshooting
Troubleshooting Notification Front Cliff Front Wheel Bumper Sensor Left Wheel Right Wheel Side Brush Sensor Warning Senor Warning Warning Overloaded Overloaded Overloaded Roller Brush Charging Returning Soft Touch Stop Start Overloaded Malfunction Home Battery Battery Soft Touch Battery Charging Charged Errors Left Wheel Overload Check and clean the left wheel from hair or debris. - Page 24 Status Indication Status Normal Battery Low Dustbin Full Robot - Power Button Blue(Slow-blinking) Red(Slow-blinking) Display Bumper Light Blue(Slow-blinking) Blue(Slow-blinking) Blue(Blinking) Status Normal Battery Low Dustbin Full Detect Dust Working Power Button Solid Blue Red(Blinking) Solid Blue Solid Blue Mode - - Bumper Light Blue(Blink for 3sec)
- Page 25 Problem Solutions Robot cannot be 1. Check if battery is installed properly. activated 2. Charge the robot with Recharging Base or direct charging. Direct charging 1. Check if battery is installed properly. does not work 2. Clean the charging contacts on the battery with a dry cloth. Recharging Base 1.
-
Page 26: Specification
Specification Recharging Battery Li-Ion Battery 14.8V 2600mAh/ 3350mAh/ 6700mAh Recharging Time about 2.5/3.5/7 hours Input: AC100V-240V 50/60Hz Output: DC 20V 1000mA Input/Output about 80/100/200 minutes Working Time Moving Speed 24 cm/sec Suction Power 800 pa Noise < 62 dB 330 ( Diameter ) X 80 ( Height ) mm Dimension about 3.4 kg Weight... -
Page 27: Warranty Card
Terms & Conditions 1) All Cleanmate Vacuum Cleaner are covered against all manufacturer defects form the date of purchase for the period of one year. 2) This warranty becomes void when any unauthorized repairs are carried out or when the product is tempered with. - Page 28 For FAQs and more information, please visit: www.cleanmateusa.com...
