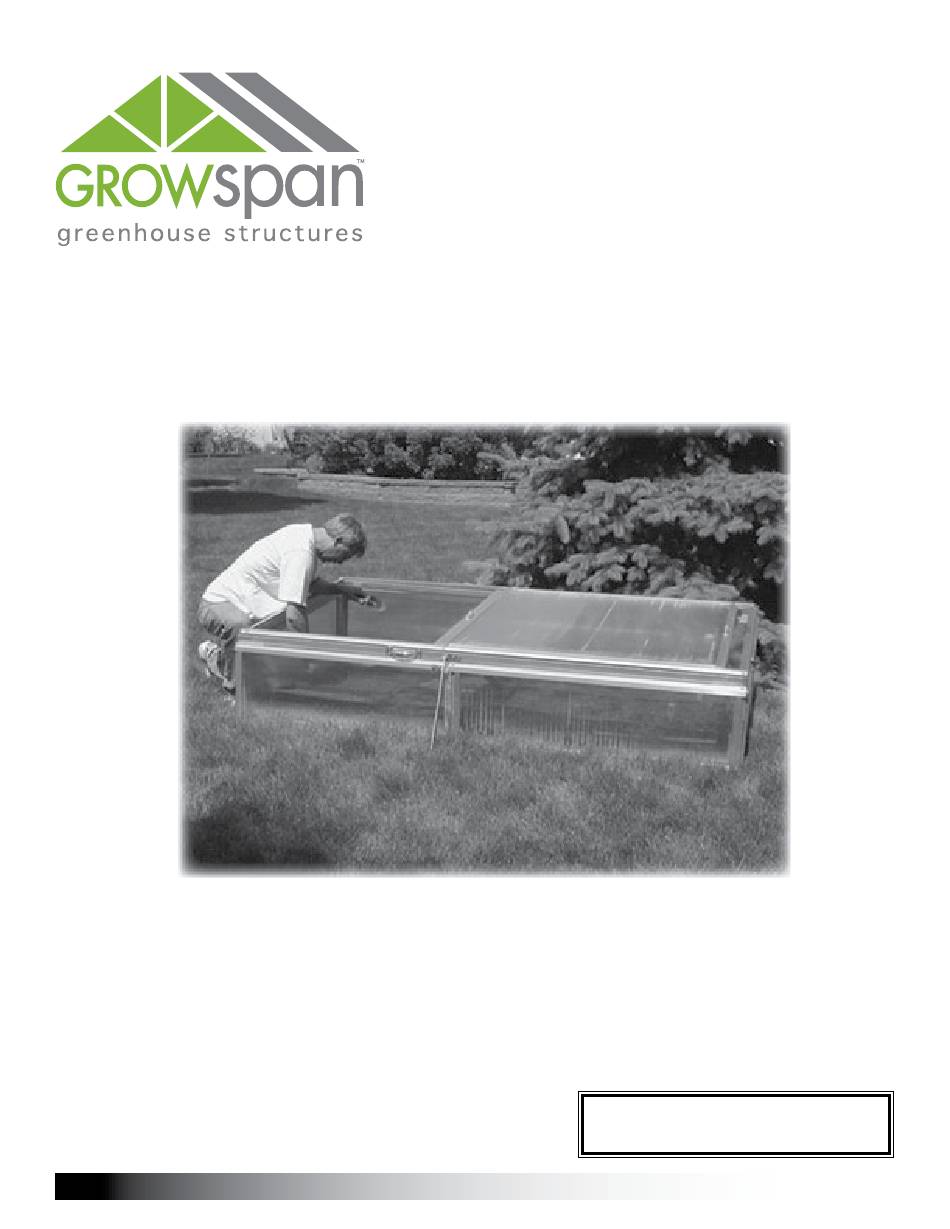

- Page 1 COLD FRAMES & GREENHOUSES ™ GrowSpan Heavy-Duty ™ Commercial Cold Frame Photo may show a different but similar model. STK# DIMENSIONS ©2018 GrowSpan 106363 4' W x 23" H x 7'-9" L All Rights Reserved. Reproduction is prohibited without permission. Revision date: 05.08.18...
-
Page 2: Safety Precautions
GROWSPAN COLD FRAMES & GREENHOUSES ™ LOCATION Choosing the proper location is an important step before you begin to assemble the cold frame. The following suggestions and precautions will help you determine whether your selected location is the best location. -
Page 3: Assembly Procedure
GROWSPAN COLD FRAMES & GREENHOUSES ™ ASSEMBLY PROCEDURE UNPACK AND IDENTIFY PARTS Following the instructions as presented will help ensure the The following steps will ensure that you have all the proper assembly of your cold frame. Failing to follow these necessary parts before you begin to assemble the cold frame. - Page 4 GROWSPAN COLD FRAMES & GREENHOUSES ™ ASSEMBLY NOTE: Install Tek screws using a clutched drill driver running approximately 750 RPM while applying approximately 50 lbs of force. Do not use an impact driver to install Tek screws! The following graphics and photos will help you identify the different parts and show you how they are used.
- Page 5 GROWSPAN COLD FRAMES & GREENHOUSES ™ H-CHANNEL INSTALLATION INSTRUCTIONS The new H-channel design requires installation of the flat side facing out with channel side toward the building. Some diagrams and photos in this document show installation of original H-channel with channel side facing out.
- Page 6 GROWSPAN COLD FRAMES & GREENHOUSES ™ ASSEMBLY NOTE: Install Tek screws using a clutched drill driver running approximately 750 RPM while applying approximately 50 lbs of force. Do not use an impact driver to install Tek screws! GrowSpan Heavy-Duty OVERVIEW ™...
- Page 7 GROWSPAN COLD FRAMES & GREENHOUSES ™ FRAME ASSEMBLY INSTRUCTIONS 3. After all four corner tubes are in place, slide the four (4) 2-Way fittings (#104625) onto the corner frame tubes After all parts are identified, assemble the frame. as shown and secure with Tek screws.
- Page 8 GROWSPAN COLD FRAMES & GREENHOUSES ™ FRAME ASSEMBLY INSTRUCTIONS (CONTINUED) NOTE: The upper sidewall tube is flush with the top of the longer front and back frame tubes. See dashed line 5. With the ends of the tubes flush to the outside of each in previous diagram.
- Page 9 GROWSPAN COLD FRAMES & GREENHOUSES ™ FRAME ASSEMBLY INSTRUCTIONS (CONTINUED) 16. Once the lower frame is secured to the stakes (if used), set and center the remaining frame (#102923) on top of 11. Repeat the steps to drive the remaining corner stakes the assembled cold frame.
- Page 10 GROWSPAN COLD FRAMES & GREENHOUSES ™ ANCHOR THE FRAME CUT AND ASSEMBLE THE POLYCARBONATE PANELS FOR THE COLD FRAME: OVERVIEW The following anchoring methods are recommended to properly anchor the assembled frame. Each polycarbonate panel is cut from the large sheets of polycarbonate shipped with the cold frame.
- Page 11 GROWSPAN COLD FRAMES & GREENHOUSES ™ CUT AND ASSEMBLE THE POLYCARBONATE PANELS NOTE: The profile (#104548) that runs at the tops and (CONTINUED) bottoms of Panels 1-Front and 2-Front and 1-Back and 2-Back spans the vertical joint between the two panels.
- Page 12 GROWSPAN COLD FRAMES & GREENHOUSES ™ CUT AND ASSEMBLE THE POLYCARBONATE PANELS ASSEMBLE THE TWO (2) SLIDING PANELS FOR THE (CONTINUED) COVER Panel A and Panel B are assembled differently. Consult NOTE: The vertical profile where it meets the horizontal...
- Page 13 GROWSPAN COLD FRAMES & GREENHOUSES ™ ASSEMBLE THE TWO (2) SLIDING PANELS FOR THE 7. Carefully rotate the panel and repeat the steps to apply COVER (CONTINUED) silicone and to install the next section of profile for the panel. 4. After the silicone has set, measure from the inside...
- Page 14 GROWSPAN COLD FRAMES & GREENHOUSES ™ ASSEMBLE THE TWO (2) SLIDING PANELS FOR THE INSTALL THE SLIDING PANELS FOR THE COVER COVER (CONTINUED) For clarity, the diagrams and photos in the following 2. Take the two remaining lengths of profile for Panel B...
- Page 15 GROWSPAN COLD FRAMES & GREENHOUSES ™ INSTALL THE SLIDING PANELS FOR THE COVER 7. With the two (2) long sections of profile attached to the (CONTINUED) cover frame, cut a section of felt tape and attach it to the center cross brace of the cover frame.
- Page 16 GROWSPAN COLD FRAMES & GREENHOUSES ™ INSTALL THE SLIDING PANELS FOR THE COVER Complete the following steps to install the cover support (CONTINUED) arm. 1. Locate the center of the cover frame and main cover 9. Once Panel A is in place, cut two (2) 2" sections of felt and mark the location.
- Page 17 GROWSPAN COLD FRAMES & GREENHOUSES ™ INSTALL COVER SUPPORT ARM, BRACKETS AND SAFETY STRAP INSTALLATION SAFETY STRAPS (CONTINUED) The safety straps are designed to prevent the cover from opening too far and causing injury and damage. Safety 4. Flip the support arm up and install and tighten the 1/4"...
-
Page 18: Safety Information
GROWSPAN COLD FRAMES & GREENHOUSES ™ SAFETY STRAP INSTALLATION (CONTINUED) SAFETY INFORMATION The cover of your cold frame is heavy. Use caution when Allow a little slack to remain in the strap so you can opening and closing the cold frame cover. - Page 19 If the cold frame is moved, inspect all parts and connections after moving and before use. • For replacement or missing parts, call 1-800-245-9881 for assistance. NOTE: With the exception of Truss Arch buildings, GrowSpan™ shelters and greenhouses do not have any tested loading criteria. Revision date: 05.08.18...
- Page 20 GROWSPAN COLD FRAMES & GREENHOUSES ™ ASSEMBLY NOTE: Install Tek screws using a clutched drill driver running approximately 750 RPM while applying approximately 50 lbs of force. Do not use an impact driver to install Tek screws! QUICK START GUIDE Commercial Cold Frame with Sliding Cover Panels Revision date: 05.08.18...
- Page 21 GROWSPAN COLD FRAMES & GREENHOUSES ™ PANEL A DIAGRAMS Edge of Panel Center handle and secure with Tek Screw (#FA4472B) 44-3/4" Felt Tape UV-Protected surface is always installed toward the sun. Edge of Panel Top View of the Panel A...
- Page 22 GROWSPAN COLD FRAMES & GREENHOUSES ™ PANEL B DIAGRAMS Edge of Panel Install felt tape on the underside of this length of profile. Center handle and secure with Tek Screw (#FA4472B) 44-3/4" UV-Protected surface is always installed toward the sun.
- Page 23 GROWSPAN COLD FRAMES & GREENHOUSES ™ PANEL LOCATION DIAGRAM: TOP, FRONT AND RIGHT SIDE Dashed line shows the edge of Panel A under Panel B. 1-Front 2-Front #113236Z096 View shows the cold NOTE: Position the H-Channel frame from the front.
- Page 24 GROWSPAN COLD FRAMES & GREENHOUSES ™ PANEL LOCATION DIAGRAM: BACK AND REMAINING SIDE 2-Back 1-Back #113236Z096 View shows the cold frame from the back. NOTE: Position the H-Channel between each long horizontal profile section. Install with flat side out. Use two (2) FA4474B Tek screws.
- Page 25 GROWSPAN COLD FRAMES & GREENHOUSES ™ CUT SHEETS: FRONT PANELS, "A" AND "B" PANELS 40" 48" 13-1/2" 2-Front 1-Front Read the instructions and use the diagrams before cutting and installing the panels. REMOVE THE PROTECTIVE FILM. DO NOT ALLOW THE PANELS TO REMAIN IN...
- Page 26 GROWSPAN COLD FRAMES & GREENHOUSES ™ CUT SHEETS: BACK PANELS, "C" AND "D" PANELS ATTENTION: Install all UV-Protected surfaces to the outside of the cold frame. See previous page to determine which panels to cut from each 4' x 8' polycarbonate panel.
- Page 27 GROWSPAN COLD FRAMES & GREENHOUSES ™ Solar-Powered Opener* (*Not included. Must be purchased separately.) If the solar-powered opener was purchased for your commercial cold frame, use the installation instructions included with the opener and the photos below to install the opener. Contact customer service at 1.800.245.9881 for additional information, or to purchase the opener.
