GrowSpan™
Canopy-Top Cold Frame

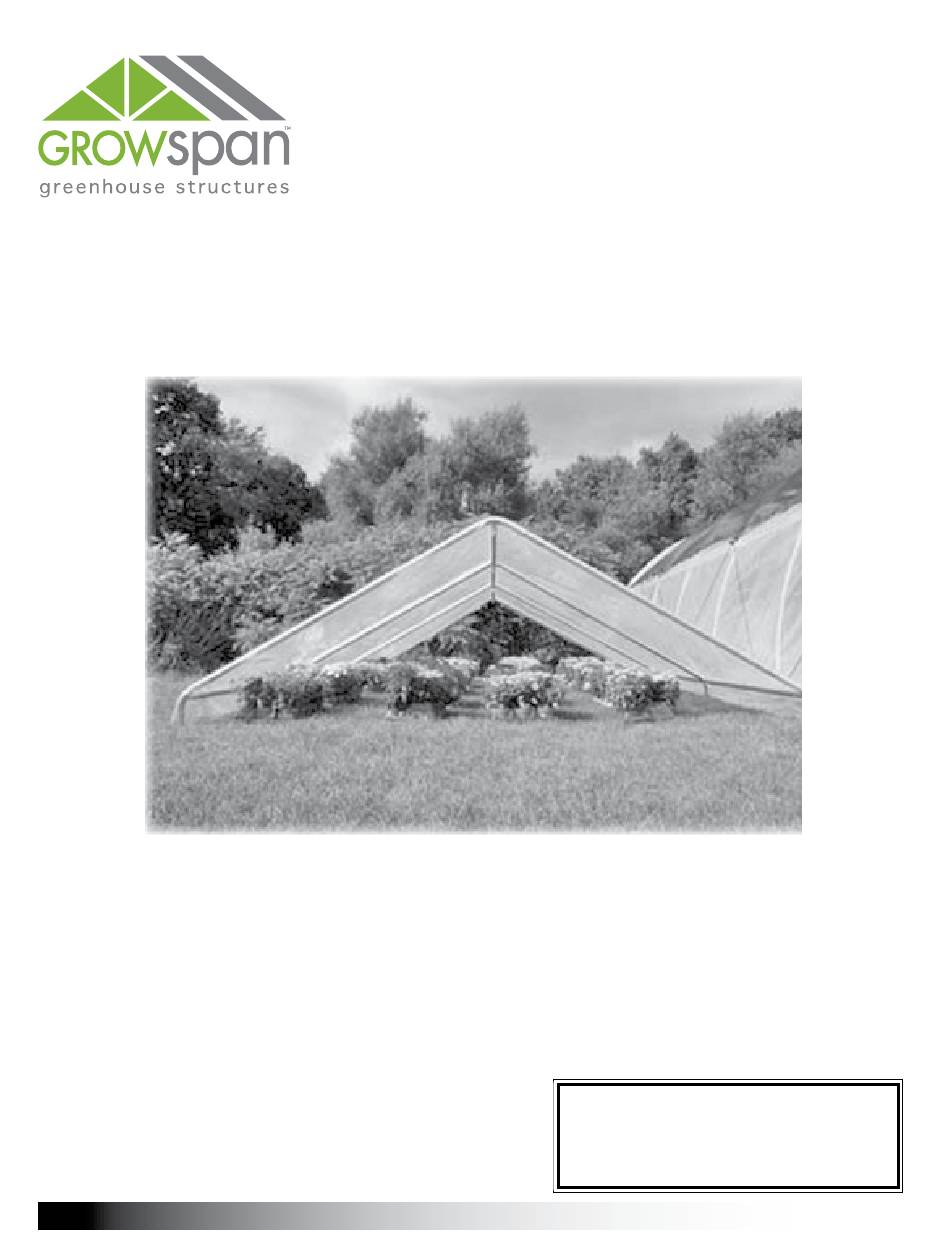

Photo may show a different but similar model.
GROWSPAN™ CANOPY-TOP COLD FRAME
STK#
DIMENSIONS
106018
14' W x 4'-8" H x 20' L
106019
14' W x 4'-8" H x 30' L
106020
14' W x 4'-8" H x 40' L
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GrowSpan Canopy-Top Cold Frame Series
Summary of Contents for GrowSpan Canopy-Top Cold Frame Series
- Page 1 GROWSPAN™ CANOPY-TOP COLD FRAME GrowSpan™ Canopy-Top Cold Frame Photo may show a different but similar model. STK# DIMENSIONS 106018 14’ W x 4'-8" H x 20’ L ©2018 GrowSpan™ 106019 14’ W x 4'-8" H x 30’ L All Rights Reserved. Reproduction 106020 14’...
-
Page 2: Safety Precautions
• Location should be away from shelters that could Thank you for purchasing this GrowSpan™ shelter. When cause snow to drift on or around the frame. properly assembled and maintained, this product will provide years of reliable service. These instructions include •... -
Page 3: Assembly Procedure
These words and phrases are common to most straight ends of other pipes. GrowSpan™ shelters and identify the different parts of • Tek Screw: A self-tapping fastener used to secure pipe the shelter. -
Page 4: Required Tools
GROWSPAN™ CANOPY-TOP COLD FRAME REQUIRED TOOLS The following list identifies the main tools needed for Space below is reserved for customer notes. assembly. Additional tools and supports may be needed depending on shelter, location, and application. • Tape measure or measuring device •... - Page 5 GROWSPAN™ CANOPY-TOP COLD FRAME The following graphics and photos will help identify the different parts. Some parts are not shown. FA4470B 102192 102191 4-Way Coupler #12 x 3/4" Tek Screw 3-Way Coupler ADDITIONAL PARTS IDENTIFICATION NOTES In some instances, there can be differences between parts shown and referenced in the instructions and parts that ship with the shelter.
-
Page 6: Frame Diagram
GROWSPAN™ CANOPY-TOP COLD FRAME GrowSpan™ Canopy-Top Cold Frame End Rafter Interior Rafter Locking Screws FRAME DIAGRAM NOTE: Diagram above may show a shelter that differs in length or width from the actual frame. Frame above is used for illustration purposes. -
Page 7: Rafter Assembly
GROWSPAN™ CANOPY-TOP COLD FRAME RAFTER ASSEMBLY Assemble end rafters using these parts: Assemble interior rafters using these parts: • Rafter pipe assemblies remaining from previous • Rafter pipes (#131S075) 75" procedure • Rafter pipes (#131P021) 21" • 3-way couplers •... -
Page 8: Frame Assembly
GROWSPAN™ CANOPY-TOP COLD FRAME FRAME ASSEMBLY 5. Insert three (3) purlin pipes into the 4-way couplers on the interior rafter and tighten the locking screws. Gather the parts: 6. Add another interior rafter and repeat the previous • Assembled rafters steps until all interior rafters are used. - Page 9 • For replacement or missing parts, call 1-800-245-9881 Rafter for assistance. Attach fabric clips NOTE: With the exception of Truss Arch buildings, along end rafter GrowSpan™ shelters and greenhouses do not have any tested loading criteria. Revision date: 02.08.18...
- Page 10 GROWSPAN™ CANOPY-TOP COLD FRAME QUICK START GUIDE 14' Wide Canopy-Top Cold Frame 106019 14' W x 30' L 106018 14' W x 20' L 106020 14' W x 40' L Revision date: 02.08.18...
- Page 11 GROWSPAN™ CANOPY-TOP COLD FRAME Revision date: 02.08.18...
- Page 12 GROWSPAN™ CANOPY-TOP COLD FRAME Revision date: 02.08.18...
- Page 13 GROWSPAN™ CANOPY-TOP COLD FRAME Revision date: 02.08.18...
