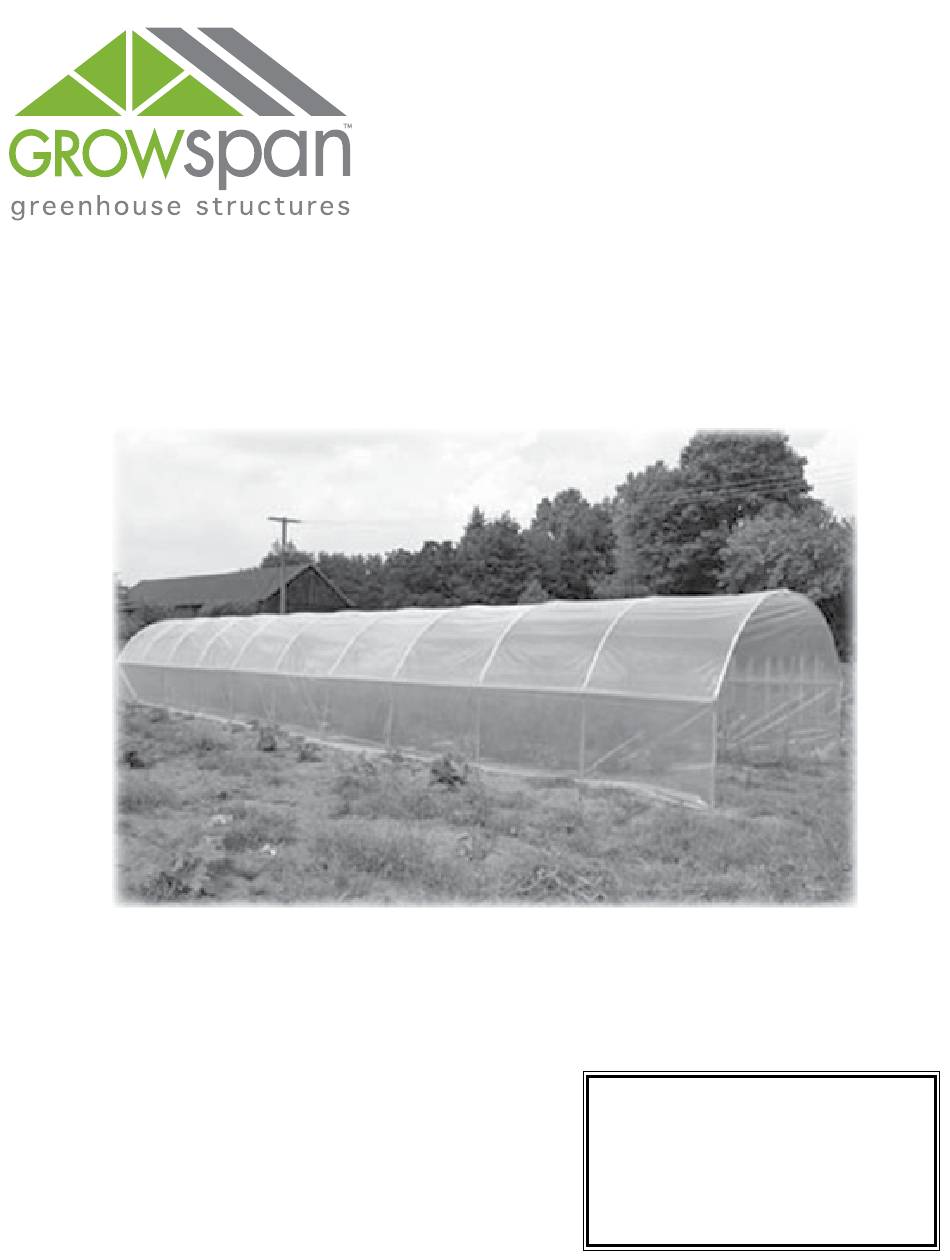

Economy Cold Frames
Photo may show a different but similar model. Frame is shown with optional cover.
GrowSpan
™
STK#
DIMENSIONS
105175F
12' W x 7' H x 10' L
105176F
12' W x 7' H x 20' L
105177F
12' W x 7' H x 30' L
105178F
12' W x 7' H x 40' L
105179F
12' W x 7' H x 50' L
