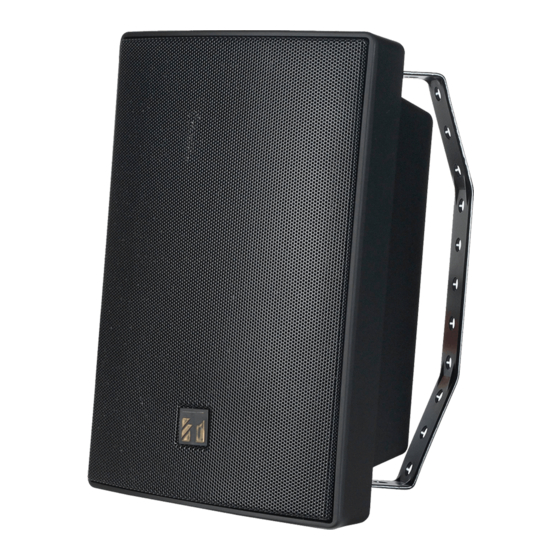

Toa BS-1015BSB Instruction Manual

COMPACT SPEAKERS
Thank you for purchasing TOA's Compact Speaker.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS ........................... 1
2. GENERAL DESCRIPTION
AND FEATURES ......................................... 2
3. IMPEDANCE CHANGE .............................. 2
4. WIRING ....................................................... 3
5. SPEAKER INSTALLATION ........................ 4

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
WARNING
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
When Installing the Unit
• Refer all installation work to the dealer from whom
the speaker was purchased. Installation work
requires extensive technical knowledge and
experience. The speaker may fall off if incorrectly
installed, resulting in possible personal injury.
• Install the speaker only in a location that can
structurally support the full weight of the unit and
mounting bracket. Doing otherwise may result in
Traceability Information for Europe (EMC directive 2004/108/EC)
Manufacturer:
TOA Corporation
7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo,
Japan
INSTRUCTION MANUAL
BS-1015BSB
BS-1015BSW
6. INSTALLATION PRECAUTIONS ............... 4
7. WIRING DIAGRAM ..................................... 4
8. FREQUENCY RESPONSE (1 W, 4 m) ....... 4
9. DIMENSIONAL DIAGRAM ......................... 5
10. SPECIFICATIONS ...................................... 5
the speaker falling down and causing personal
injury and/or property damage.
• Since the unit is designed for in-door use, do not
install it outdoors. If installed outdoors, the aging of
parts causes the unit to fall off, resulting in personal
injury. Also, when it gets wet with rain, there is a
danger of electric shock.
• Do not use other methods than specified to install
the speaker. Extreme force is applied to the
speaker and the speaker could fall off, possibly
resulting in personal injuries.
• Use screws that are appropriate for the ceiling's or
wall's material and structure. Failure to do so may
cause the speaker to fall, resulting in material
damage and possible personal injury.
• Ensure that all screws are securely tightened. If
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,
Germany
