Installation Instructions
VAP
VAP CHAIN MOUNT BRACKET (CMB) INSTALLATION
1. If field installing chain hanger, remove diffuser, lamps and
channel cover. Using a 7/8" hole saw drill out desired en-
trance hole in the fixture housing for electrical connection (end
or top of fixture). Remove KO from channel.

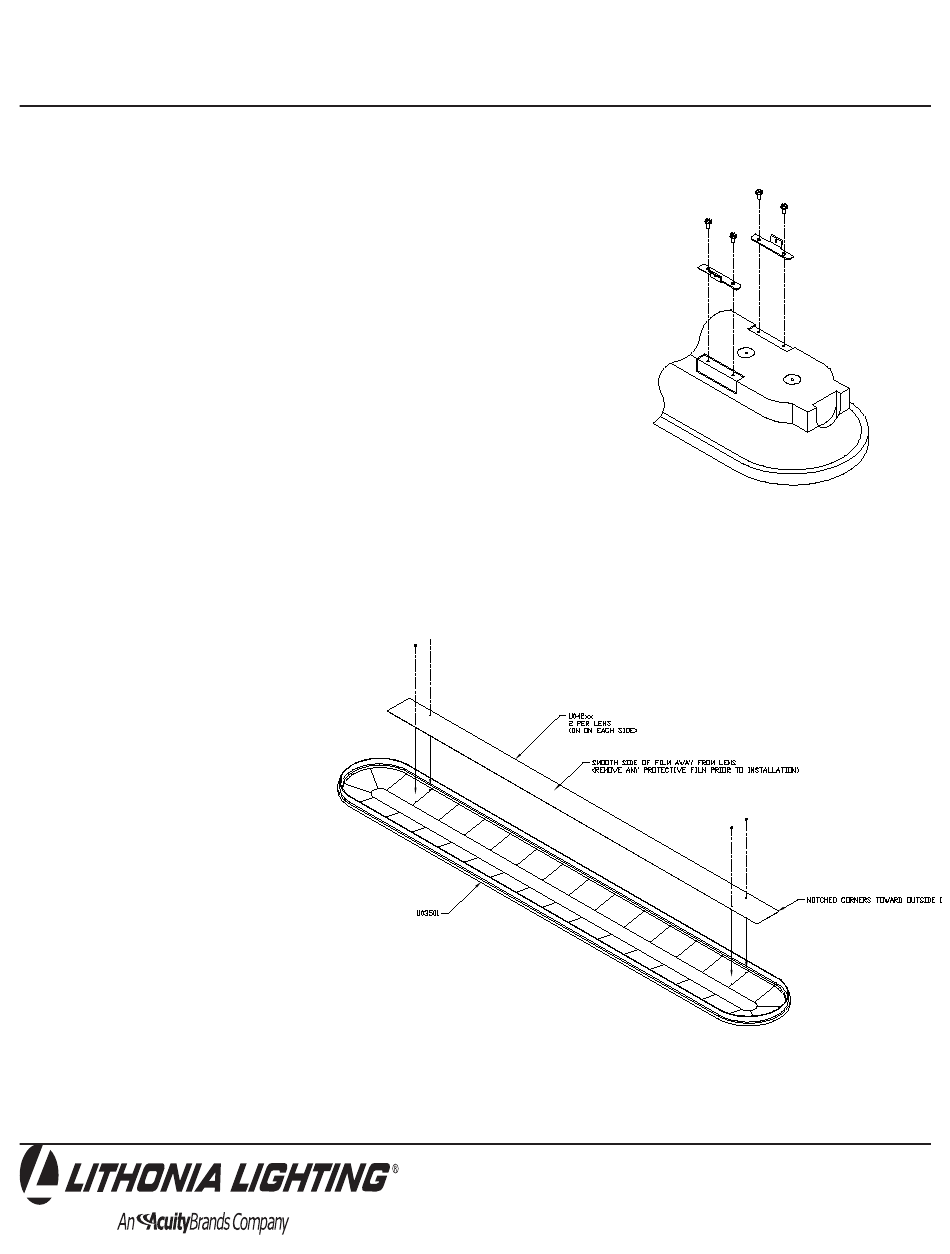

2. Install brackets on each end of the fixture as shown in Fig 4
(maximum 25 inch-pounds torque on screws).
3. Attach HC36 to bracket on fixture and secure other end of
chain to the building structure (provided by others)
4 Make wiring connections in accordance with local codes.
5. Reinstall channel cover, lamps and diffuser as necessary.
VAP LIGHT CONTROL FILM (LCF) INSTALLATION
1. If field installing the light control film,
remove any protective film from lens.
2. Remove diffuser and attach LCF to
tabs on inside of lens (one on each
side). Secure film with (4) washers
provided. Ensure that the smooth side
of the film is away from the lens and the
notched corner is towards the outside
of the lens (Fig 5).
3. Reinstall lens on the fixture.
INSTRUCTIONS
INSTRUCTIONS
Lithonia Lighting
INDUSTRIAL VALUE STREAM
One Lithonia Way, Conyers, GA 30012
Phone: 800-315-4963 Fax: 770-981-8141
www.lithonia.com
Fig 4
Fig 5
Part Number: U21316
Revision Date: 03/2010
