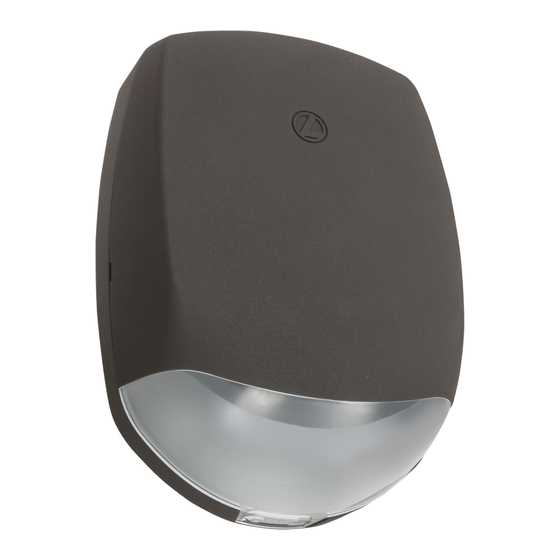

AFB OELR LED Remote Light
Installation and wiring....................................................................................................Page 2-3
Maintenance ...............................................................................................................Page 4
Wiring diagram.............................................................................................................Page 5
!
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
WARNING:
FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS MAY RESULT IN DEATH, SERIOUS INJURY OR
SIGNIFICANT PROPERTY DAMAGE - For your protection, read and follow these warnings and instructions carefully before installing or
maintaining this equipment. These instructions do not attempt to cover all installation and maintenance situations. If you do not
!
understand these instructions or additional information is required, contact Lithonia Lighting or your local Lithonia Lighting distributor.
!
WARNING:
RISK OF ELECTRIC SHOCK – NEVER CONNECT TO, DISCONNECT FROM OR SERVICE WHILE EQUIPMENT IS ENERGIZED.
WARNING:
DO NOT USE ABRASIVE MATERIALS OR SOLVENTS. USE OF THESE SUBSTANCES MAY DAMAGE FIXTURE, WHICH MAY RESULT IN
PERSONAL INJURY.
!
WARNING
RISK OF PERSONAL INJURY – This product may have sharp edges. Wear gloves to prevent cuts or abrasions when
:
removing from carton, handling, installing and maintaining this product.
!
WARNING:
Do not exceed fixtures ambient temperature -40°F-122°F (-40°C-50°C). Use of unauthorized input voltage voids warranty and
UL listing of this product and may present a risk of fire or explosion.
All servicing should be performed by qualified personnel.
Consult your local building code for approved wiring and installation.
For use Outdoors. Failure to ensure conduit connections are properly protected against water ingress during installation may void
Do not mount near gas or electric heater.
Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
Do not use this equipment for other than intended use.
AND DELIVER TO OWNER AFTER INSTALLATION
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions
should always be followed, including the following:
SAVE THESE INSTRUCTIONS
AFFINITY
®
warranty.
