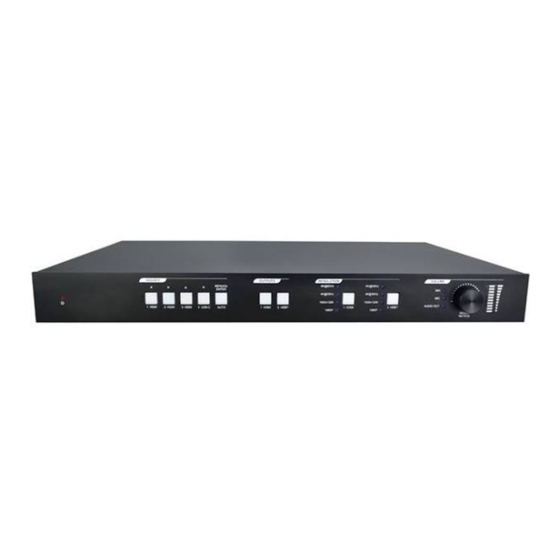

KanexPro SW-HDSC42D4K User Manual

4x2 hdmi 2.0 seamless matrix switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4x2 HDMI 2.0 Seamless Matrix Switcher
All Rights Reserved
MPN: Version 2019V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW-HDSC42D4K and is the answer not in the manual?

Questions and answers

Related Manuals for KanexPro SW-HDSC42D4K

Summary of Contents for KanexPro SW-HDSC42D4K

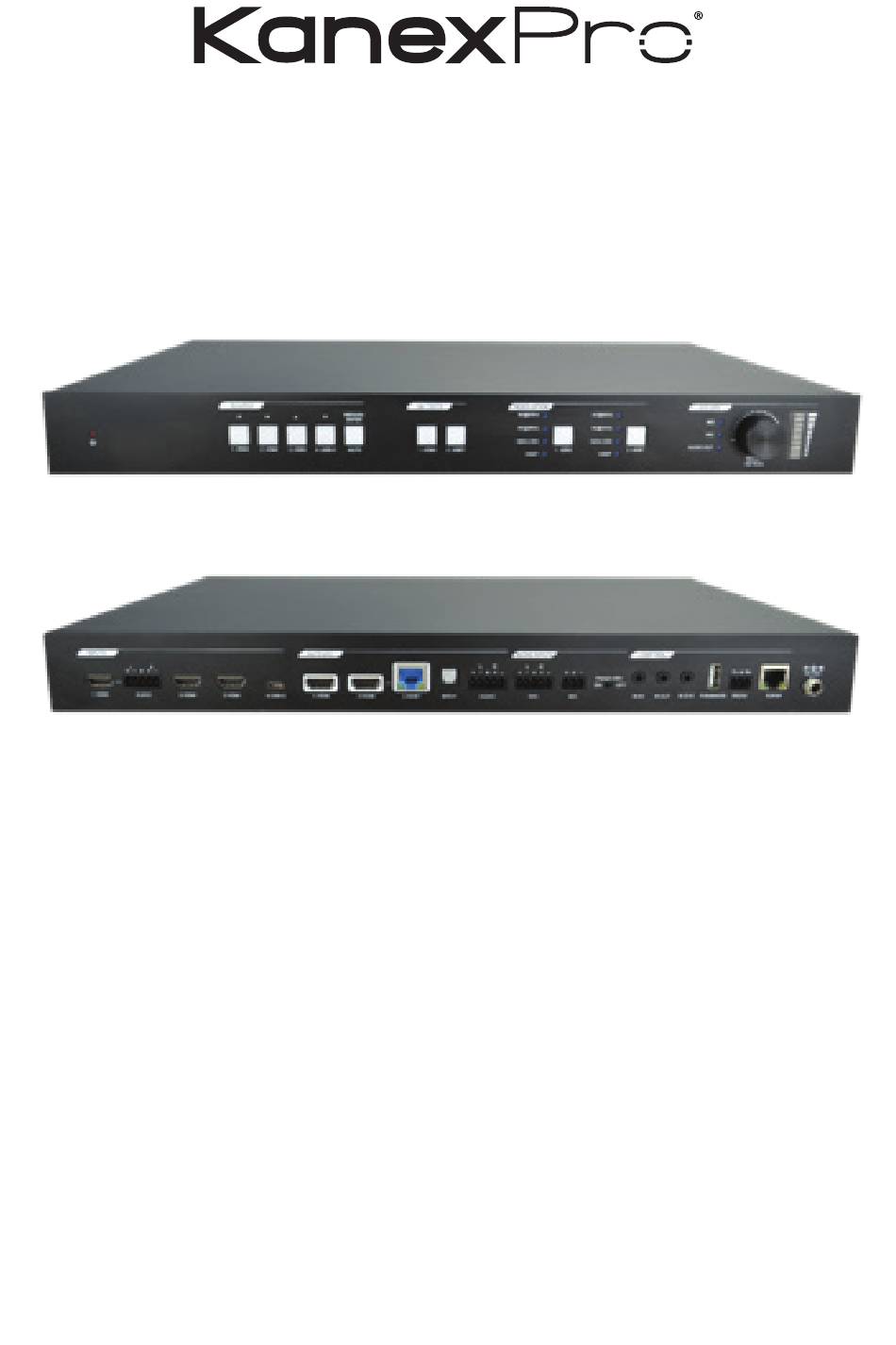

  • Page 1 4x2 HDMI 2.0 Seamless Matrix Switcher All Rights Reserved MPN: Version 2019V1.0...
  • Page 2 4x2 HDMI 2.0 Seamless Matrix Switcher Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
  • Page 3 4x2 HDMI 2.0 Seamless Matrix Switcher SAFETY PRECAUTIONS • To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. • Unpack the equipment carefully and save the original box and packing material for possible future shipment.

  • Page 4: Table Of Contents

    4x2 HDMI 2.0 Seamless Matrix Switcher Contents Product Introduction ....................... 1 1.1 Features ........................1 1.2 Package List ......................2 Specification ........................3 2.1 Matrix Switcher ....................3 2.2 HDBaseT Receiver .................... 5 Panel Description ......................7 3.1 Matrix Switcher Front Panel ................7 3.2 Matrix Switcher Rear Panel ................
  • Page 5 4x2 HDMI 2.0 Seamless Matrix Switcher 8.2.6 EDID Management ..................39 8.2.7 CEC Control ....................40 8.2.8 Third-party Device Control ..............42 OSD Control ........................46 10. Panel Drawing ........................ 49 11. Troubleshooting and Maintenance ................. 50 12. Customer Service ......................51...

  • Page 6: Product Introduction

    4x2 HDMI 2.0 Seamless Matrix Switcher 1. Product Introduction Thanks for choosing the SCU42TS 4x2 multi-format seamless presentation matrix switcher with one TPUH610SR receiver! The matrix switcher simplifies meeting room and presentation space system integration by providing three HDMI inputs, one USB-C input, one HDMI output and one HDBaseT output with one HDMI loop output.

  • Page 7: Package List

    4x2 HDMI 2.0 Seamless Matrix Switcher • MIX, MIC and output audio volume control. • Supports ARC. • Independent audio adjustment. • Smart EDID management. • Controllable via front panel buttons, RS232 local and pass-through, IR local and pass-through, TCP/IP, CEC and on OSD. 1.2 Package List Matrix Switcher •...
  • Page 8 4x2 HDMI 2.0 Seamless Matrix Switcher 2. Specification 2.1 SW-HDSC42D4K Matrix Switcher Video Input Video Input (3) HDMI, (1) USB-C Video Input Connector (3) Type-A female HDMI, (1) Type-C USB 3.0 Video Input Video Resolution HDMI: Up to 4Kx2K@60Hz 4:4:4 8bit...
  • Page 9 4x2 HDMI 2.0 Seamless Matrix Switcher 20Hz-20KHz, ±1dB Frequency Response SPDIF: ±0.05dBFS Max Output Level L+R: 2.0Vrms ± 0.5dB. 2V = 16dB headroom above - 10dBV (316mV) nominal consumer line level signal. THD+N <0.05% (-80dB), 20Hz - 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level) SPDIF: >...
  • Page 10 4x2 HDMI 2.0 Seamless Matrix Switcher 2.2 Extender Receiver Video Input (1) HDBT Input Connector (1) RJ45 Input Resolution Up to 4Kx2K@60Hz 4:2:0 Output (1) HDMI Output Connector (1) Type-A female HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDR10 Audio Input (1) ARC Audio In...
  • Page 11 4x2 HDMI 2.0 Seamless Matrix Switcher HDCP Version 2.2, 1.4 compliant Pass-through Bidirectional PoC Supported HDMI 2.0 Cable Length 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080P ≤ 20m Transmission Standard Extender Transmission Distance 1080P@60Hz ≤ 230 feet (70 meters), 4K@60Hz ≤...

  • Page 12: Panel Description

    4x2 HDMI 2.0 Seamless Matrix Switcher 3. Panel Description 3.1 Matrix Switcher Front Panel 1. HDMI 2. HDMI 3. HDMI Power LED: The LED illuminates red when the device is powered on. SOURCE: Total five buttons with blue backlight. • 1.

  • Page 13: Matrix Switcher Rear Panel

    4x2 HDMI 2.0 Seamless Matrix Switcher 3.2 Matrix Switcher Rear Panel OUTPUTS AUDIO INPUTS CONTROL DC 24V Phantom (48V) 1.HDMI AUDIO 2.HDMI 3.HDMI 4.USB-C 1.HDMI 2.HDMI 2.HDBT SPDIF AUDIO IR IN IR OUT IR EYE FIRMWARE RS232 INPUTS: Total four video inputs and one audio input. •...
  • Page 14 4x2 HDMI 2.0 Seamless Matrix Switcher 4. CONTROL: • IR IN: 3.5mm jack to connect the IR receiver for IR pass-through. • IR OUT: 3.5mm jack to connect the IR emitter for IR pass-through. • IR EYE: 3.5mm jack to connect IR receiver to control the switcher by the IR remote.

  • Page 15: Receiver Front And Rear Panel

    4x2 HDMI 2.0 Seamless Matrix Switcher 3.3 Extender Receiver Front and Rear Panel Power LED: The LED illuminates red when power is applied. ARC Mode: Press the button with a paper clip or other sharp tool to enable ARC mode, then the left LED will illuminate blue. Press it again to exit ARC mode and the LED will turn off.

  • Page 16: System Connection

    4x2 HDMI 2.0 Seamless Matrix Switcher 4. System Connection 4.1 Usage Precautions • Make sure all components and accessories are included before installation. • The system should be installed in a clean environment with proper temperature and humidity. • All of the power switches, plugs, sockets, and power cords should be insulated and safe.

  • Page 17: Ir Connection

    4x2 HDMI 2.0 Seamless Matrix Switcher commands, a local third-party device which is connected to the switcher’s RS232 port. Connect a third-party device to the switcher’s RS232. The third-party device can be controlled by sending RS232 commands via the GUI’s RS232 Control tab.

  • Page 18: Switching Status Query

    4x2 HDMI 2.0 Seamless Matrix Switcher it will automatically confirm after three seconds. Repeat the preceding three steps to exit auto mode. The input source will remain the current setting. Note: The AUTO button LED illuminates blue when the 1.HDMI output is in auto mode or the 2.HDBT output in auto mode.

  • Page 19: Ir Remote Control

    4x2 HDMI 2.0 Seamless Matrix Switcher • Press and hold the volume knob at least three seconds to mute the selected audio. Rotate the volume knob to unmute the selected audio. 6. IR Remote Control Connect the IR receiver to the IR EYE port. Use the IR remote as described below to control the switcher.

  • Page 20: Gui Control

    4x2 HDMI 2.0 Seamless Matrix Switcher 7. GUI Control A GUI allows the switcher to be controlled via TCP/IP. The default IP settings are: IP Address: 192.168.0.178 Subnet Mask: 255.255.255.0 Type 192.168.0.178 in an internet browser to display the following log-in webpage: Username: admin Password: admin Type the username and password, then click Login to display the video...

  • Page 21: Video Switching Tab

    4x2 HDMI 2.0 Seamless Matrix Switcher 7.1 Video Switching Tab • HDMI OUTPUT: Switch the selected input source to HDMI output. Click AUTO to enable/disable auto switching mode. • HDBT OUTPUT: Switch the selected input source to HDBT output. Click AUTO to enable/disable auto switching mode. •...

  • Page 22: Resolution Selection Tab

    4x2 HDMI 2.0 Seamless Matrix Switcher 7.2 Resolution Selection Tab • HDMI OUTPUT: Select the HDMI output video resolution. • HDBT OUTPUT: Select the HDBT output video resolution. • Confirm: Click Confirm to save your selected HDMI OUTPUT and HDBT OUTPUT settings.

  • Page 23: Audio Control Tab

    4x2 HDMI 2.0 Seamless Matrix Switcher 7.3 Audio Control Tab 7.3.1 Audio Input • HDMI IN: Source: Select the HDMI audio stream of the source device for the 1.HDMI input. Embedded: Select the external balanced audio (5-pin) to be embedded in the 1.HDMI input. •...

  • Page 24: Audio Output

    4x2 HDMI 2.0 Seamless Matrix Switcher 7.3.2 Audio Output • HDMI Output: Select the MIX or MIC input audio to mix with the HDMI output audio, then use the volume bar and buttons to control the audio output. • HDBT Output: Select the MIX or MIC input audio to mix with the HDBT output audio, then use the volume bar and buttons to control the audio output.

  • Page 25: Poc Setting

    4x2 HDMI 2.0 Seamless Matrix Switcher 7.4 Configuration 7.4.1 PoC Setting • Turn on or turn off PoC for the HDBT Output port.
  • Page 26 4x2 HDMI 2.0 Seamless Matrix Switcher 7.3.2 Audio Output • Select the compatible built-in EDID for the selected input source. • To upload user-define EDID, follow these steps: Step 1: Prepare the EDID file (.bin) on the control PC. Step 2: Select User-defined. Step 3: Click the box, then select the EDID file (.bin) to upload.

  • Page 27: Cec Control Tab

    4x2 HDMI 2.0 Seamless Matrix Switcher 7.5 CEC Control Tab If the input source devices and display devices support CEC, they can be controlled by the following control buttons. Source Control • Select the input source which needs to be controlled, then press the desired function buttons.
  • Page 28 4x2 HDMI 2.0 Seamless Matrix Switcher Display Control • Select the output display which needs to be controlled, then press the desired function buttons.
  • Page 29 4x2 HDMI 2.0 Seamless Matrix Switcher User-defined CEC Functions The switcher supports user-define CEC functions. A CEC command can be edited and saved in each Trigger box. • Select the input source, then type a CEC command in the Trigger 1 or Trigger 2 box to control the selected source.

  • Page 30: Tags Setting Tab

    4x2 HDMI 2.0 Seamless Matrix Switcher 7.6 Tags Setting Tab • INPUTS: You can modify the label for each input source. • Preset: You can modify the label for each preset.

  • Page 31: Rs232 Control Tab

    4x2 HDMI 2.0 Seamless Matrix Switcher 7.7 RS232 Control Tab • Select Local or HDBT Out control mode. • Local: Send RS232 commands to control the local third-party device that is connected to the RS232 port of the switcher. • HDBT Out: Send RS232 commands to control the far-end third-party device (e.g., projector) that is connected to the RS232 port of the Extender Receiver.

  • Page 32: Network Setting Tab

    4x2 HDMI 2.0 Seamless Matrix Switcher 7.8 Network Setting Tab • Select DHCP (Dynamic Host Configuration Protocol) or Static IP. • When Static IP is selected, you can modify the static IP Address, Subnet Mask, and Gateway.

  • Page 33: Security Setting Tab

    4x2 HDMI 2.0 Seamless Matrix Switcher 7.9 Security Setting Tab • Credentials: Use the Password box to modify the login password. Click Confirm to change the password. • Front Panel Lock: Select ON or OFF to lock or unlock the front panel buttons.

  • Page 34: Gui Upgrade

    4x2 HDMI 2.0 Seamless Matrix Switcher 7.10 GUI Upgrade Visit http://192.168.0.178:100 to upgrade the GUI. Type the username and password (the same as the GUI log-in setting; if you modified the password, it will be active only after rebooting) to login to the configuration interface.

  • Page 35: Rs232 Control

    4x2 HDMI 2.0 Seamless Matrix Switcher 8. RS232 Control Use an RS232 cable to connect the RS232 port to a control device (e.g., PC). The switcher can be controlled by sending RS232 commands. 8.1 RS232 Control Software • Installation: Copy the control software file to the control PC. •...
  • Page 36 4x2 HDMI 2.0 Seamless Matrix Switcher The CommWatch.exe main view is shown below: Set the appropriate parameters for the COM number, bound rate, data bit, stop bit, and parity bit. Next, use the command sending area to send commands via RS232.

  • Page 37: System Control

    4x2 HDMI 2.0 Seamless Matrix Switcher 8.2 RS232 Commands Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Note: • In the commands, “[”and “]” surround user-selected portions of a command. Do not type these brackets during actual operation. •...

  • Page 38: Video Switching

    4x2 HDMI 2.0 Seamless Matrix Switcher #SET_PORT_RELAY 01 Turn on PoC for the HDBT @PORT_RELAY 01 output port. This causes the receiver to be powered by the switcher via PoC. #SET_PORT_RELAY 01 Turn off PoC for the HDBT @PORT_RELAY 01 output port.

  • Page 39: Preset Setting

    4x2 HDMI 2.0 Seamless Matrix Switcher Command Description Command Example and Feedback #SET_AUTO_SWITCH Disable the auto switching #SET_AUTO_SWITCH 01 [PARAM] OFF mode for the HDMI or HDBT output. @AUTOSWITCH 01 OFF [PARAM] = 01 (HDMI)/02 (HDBT) #GET_AUTO_SWITCH Get the auto switching @AUTOSWITCH 01 ON mode of the HDMI and @AUTOSWITCH 02 OFF...

  • Page 40: Audio Control

    4x2 HDMI 2.0 Seamless Matrix Switcher 8.2.3 Preset Settings Command Description Command Example and Feedback #SAVE_PRESET_MODE Store the current switching #SAVE_PRESET_MODE 01 [PARAM] status in preset [PARAM]. @SAVE_PRESET_MODE 01 [PARAM]=01~ 10. #RECALL_PRESET_MODE Recall preset [PARAM]. #RECALL_PRESET_MODE [PARAM] [PARAM]=01~ 10. @RECALL_PRESET_ MODE 04 @Video&Audio OUT 01 02...
  • Page 41 4x2 HDMI 2.0 Seamless Matrix Switcher Command Description Command Example and Feedback #SET_AUDIO_ARC ON Enable ARC mode for the @SET_AUDIO_ARC ON TPUH610S receiver. #SET_AUDIO_ARC OFF Disable ARC mode for the @SET_AUDIO_ARC OFF TPUH610S receiver. #SET_AV_MUTE [PARAM] Mute the audio [PARAM]. #SET_AUDIO_MUTE 01 [PARAM]=01~05, ALL 01=HDMI output audio...
  • Page 42 4x2 HDMI 2.0 Seamless Matrix Switcher #GET_VOL [PARAM] Get the audio volume of #GET_VOL HDMI output [PARAM]. #GET_VOL ALL [PARAM]= HDMI, HDBT, @VOL HDMI 60 ALL. @VOL HDBT 60 @VOL MIX 60 @VOL MIC 30 @VOL L+R 30 #SET_AUDIO_EMBEDDED Select the external @AUDIO_EMBEDDED ON balanced audio (5-pin) to be embedded in the...

  • Page 43: Output Resolution Setting

    4x2 HDMI 2.0 Seamless Matrix Switcher 8.2.5 Output Resolution Settings Command Description Command Exam- ple and Feedback #SET_OUTPUT_RES Set the output resolution #SET_OUTPUT_ [PARAM1] TO [PARAM2] of output [PARAM2] to RES 01 TO 01 [PARAM1]. @OUTPUT_RES • [PARAM2]=01~02 4k@60 TO 01 [PARAM2] Output HDMI...

  • Page 44: Edid Management

    4x2 HDMI 2.0 Seamless Matrix Switcher 8.2.6 EDID Management Command Description Command Example and Feedback #SET_EDID_MODE The HDMI input [PARAM2] #SET_EDID_MODE CAL:[PARAM1] TO invokes built-in EDID [PARAM1]. CAL:01 TO 02 [PARAM2] [PARAM1]=01~03 (EDID) @EDID_MODE [PARAM2]=01~03 (1.HDMI IN~3. CAL:01 TO 02 HDMI IN) [PARAM1] EDID...

  • Page 45: Cec Control

    4x2 HDMI 2.0 Seamless Matrix Switcher 8.2.7 CEC Control If the input source devices and display devices support CEC, they can be controlled by sending CEC commands. Use the following command format to send specific command to control the input source or display devices. #SEND_CECCMD [port]:[command] The [port] represents the port number.
  • Page 46 4x2 HDMI 2.0 Seamless Matrix Switcher Command Description Command Example and Feedback #SEND_CECCMD Exit #SEND_CECCMD 03:0D [port]:0D [CEC]: blue ray Exit. #SEND_CECCMD [port]:41 Volume Up #SEND_CECCMD 03:41 #SEND_CECCMD 03:42 Volume Down #SEND_CECCMD 03:42 #SEND_CECCMD [CEC]: blue ray Volume Down [port]:42 #SEND_CECCMD Play #SEND_CECCMD 03:44...
  • Page 47 4x2 HDMI 2.0 Seamless Matrix Switcher Command Description Command Example and Feedback #SEND_CECCMD [port]:41 Volume Up #SEND_CECCMD 04:41 [CEC]: TV VOL + #SEND_CECCMD Volume Down #SEND_CECCMD 04:42 [port]:42 [CEC]: TV VOL - #SEND_CECCMD Mute #SEND_CECCMD 04:43 [port]:43 [CEC]: TV VOL Mute #SEND_CECCMD Power Off #SEND_CECCMD 04:36...

  • Page 48: Third-Party Device Control

    4x2 HDMI 2.0 Seamless Matrix Switcher 8.2.8 Third Party Device Control The switcher supports RS232 pass-through control. A third-party device can be controlled by RS232 commands using the command format shown below: Command Function Command Example #SEND_[PARAM1]_ Send an ASCII or HEX command #SEND_A_01_05:123456789 [PARAM2]_ to control a third-party device.
  • Page 49 4x2 HDMI 2.0 Seamless Matrix Switcher Command Function Command Example #SET_ON_ When the system is powered on, #SET_ [PARAM1]_ automatically send an ASCII or ON_A_01_03:123456789 [PARAM2]_ HEX command to a third-party [PARAM3]:XXXX device. Explanation: Automatical- • [PARAM1]=A/H: Represents ly send the ASCII com- the command format.
  • Page 50 4x2 HDMI 2.0 Seamless Matrix Switcher Command Function Command Example #GET_ON_ Get the command that will be #GET_ON_02_03 [PARAM1]_ sent to a third-party device [PARAM2] when the system is powered on. Explanation: Gets the command that will be sent • [PARAM1]=01~02: to a third-party device Represents the RS232 port.
  • Page 51 4x2 HDMI 2.0 Seamless Matrix Switcher #SET_OF_ When the system is powered off #SET_ [PARAM1]_ or the system enters standby OF_A_01_03:123456789 [PARAM2]_ mode, automatically send an [PARAM3]:XXXX ASCII or HEX command to a Explanation: Automatically third-party device. send the ASCII command “123456789”...
  • Page 52 4x2 HDMI 2.0 Seamless Matrix Switcher Command Function Command Example #GET_OF_ Get the command that will be #GET_OF_1_03 [PARAM1]_ sent to a third-party device [PARAM2] when the system is powered off Explanation: Gets the or enters standby mode. command that will be sent to a third-party device •...

  • Page 53: Osd Control

    4x2 HDMI 2.0 Seamless Matrix Switcher 9. OSD Control The SW-HDSC42D4K provides a powerful OSD (On Screen Display) operation menu that contains three parts: optional settings, image settings, and system settings. There are two ways to enter the OSD menu: Press and hold the front panel’s MENU/2s button...
  • Page 54 4x2 HDMI 2.0 Seamless Matrix Switcher SOUND MENU OPTION MENU...
  • Page 55 4x2 HDMI 2.0 Seamless Matrix Switcher SYSTEM MENU INFO MENU...

  • Page 56: Panel Drawing

    1. HDMI 2. HDMI 3. HDMI 436.4 mm OUTPUTS AUDIO INPUTS CONTROL DC 24V Phantom (48V) 1.HDMI AUDIO 2.HDMI 3.HDMI 4.USB-C 1.HDMI 2.HDMI 2.HDBT SPDIF AUDIO IR IN IR OUT IR EYE FIRMWARE RS232 SW-HDSC42D4K Matrix Switcher 140 mm Extender Receiver...

  • Page 57: Troubleshooting And Maintenance

    4x2 HDMI 2.0 Seamless Matrix Switcher 11. Troubleshooting and Maintenance Problems Potential Causes Solutions Output image contains Bad quality connecting Try another high-quality white noise cable cable. Failed or loose connection Make sure the connection is good. No output image when No signal at the input / Use an oscilloscope or switching...

  • Page 58: Customer Service

    4x2 HDMI 2.0 Seamless Matrix Switcher 12. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. Warranty The limited warranty period of the product is three years. Scope These terms and conditions of Customer Service apply to the customer service provided for the products or any other items sold only by an...
