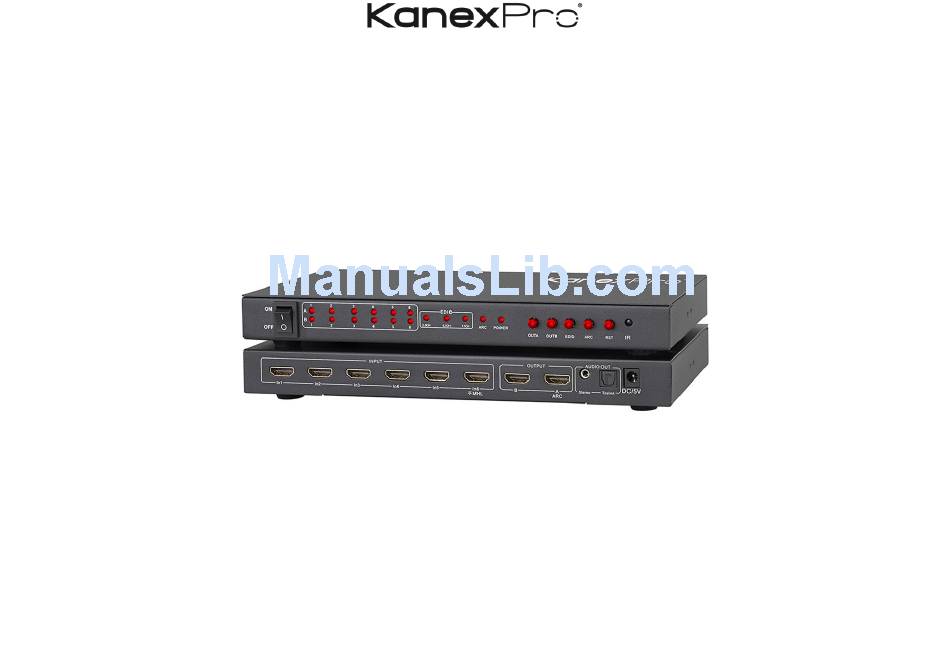

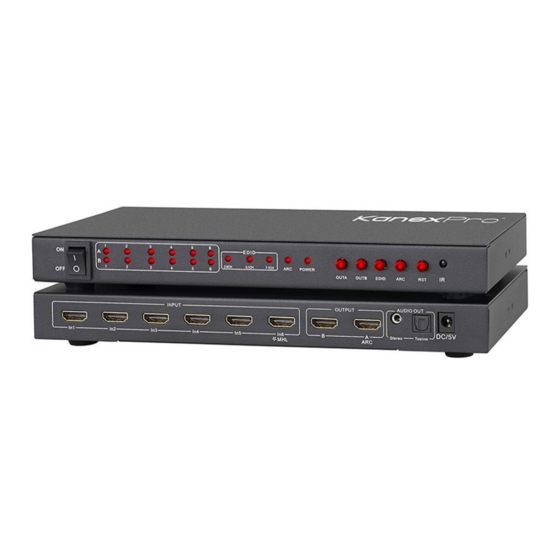

- Page 1 SW-HD4X24K Matrix Switcher HDMI® 6x2 Matrix Switcher with PIP, Audio De-embedder & 4K UltraHD User manual – Version 2.2...
- Page 2 Introduction The KanexPro SW-6X2HD4K is a high-performance 6-input; 2-output matrix switcher supporting audio de-embedding via two separate S/PDIF outputs. The output A also supports ARC (Audio Return Channel) crafted to deliver 4K resolutions from your HDMI sources to dual displays and discrete digital audio. This HDCP 2.2 compliant matrix provides built-in EDID management that learns display parameters and properly outputs to right resolutions up to 4K UHD.
- Page 3 9. ARC KEY：Press this button to open or close the ARC function. 10. RST KEY: Press this button the matrix will reset to factory state (INPUT1, 2.0CH AUDIO MODE, ARC function closed) 11. IR: Remote control signal receive. SW-HD4X24K Matrix Switcher...
- Page 4 OUTA: Press these buttons will fast switch to select input source to HDMI OUTA. And the LED will indicate the corresponding input source. OUTB: Press these buttons will fast switch to select input source to HDMI OUTB. And the LED will indicate the corresponding input source. SW-HD4X24K Matrix Switcher...
- Page 5 ※ARC function: If you need to use ARC, your HDTV must support this function, when you open the ARC function, the Toslink of the Matrix will output the HDTV current display content audio. Otherwise it will output the Matrix input source audio. SW-HD4X24K Matrix Switcher...
- Page 6 KanexPro entire liability and Customer’s exclusive remedy shall be, at KanexPro option, either return of the price paid for the product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
- Page 7 KanexPro Technical and Customer support inquiries can be sent electronically via the following avenues: Tech Support Inquiry: http://www.kanexpro.com/support/ Email: support@kanexpro.com KanexPro Customer support can be reached via phone at (888) 975-1368 (International Calls: 1-714-332-1682) during the following times: Monday – Friday: 6:00 am – 5:00 pm PST SW-HD4X24K Matrix Switcher...
