Insertion and installation of the board

3.2 Connecting the accessories

3.2.1 Cable and screw terminal panel

The relay contacts of the board APCIe-040 are connected to the peripherals via the cable ST370-16
and the screw terminal panel PX8001 (see figure below). The digital inputs are also led out over the
50-pin D-Sub male connector of the board.
In terms of electromagnetic compatibility (EMC), the cable ST370-16 has the following properties:
•
Metallised connector housing
•
Shielded cable
•
Cable shield folded back over insulation and firmly screwed on both sides to the connector
housing.

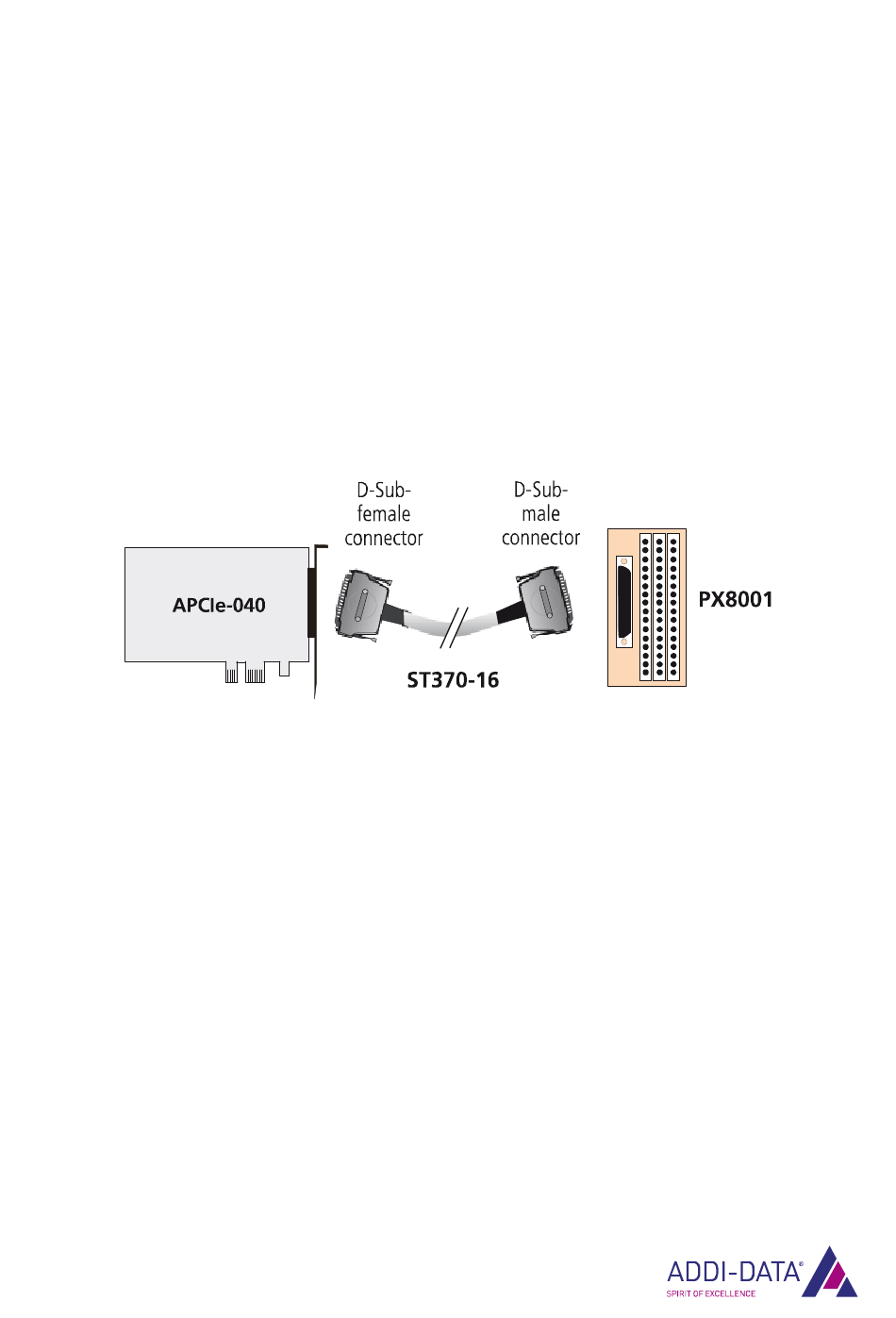

Fig. 3-4: APCIe-040: Connection to screw terminal panel PX8001
