TREASURE
detectors with a pulse
P R O D U C T S
TM

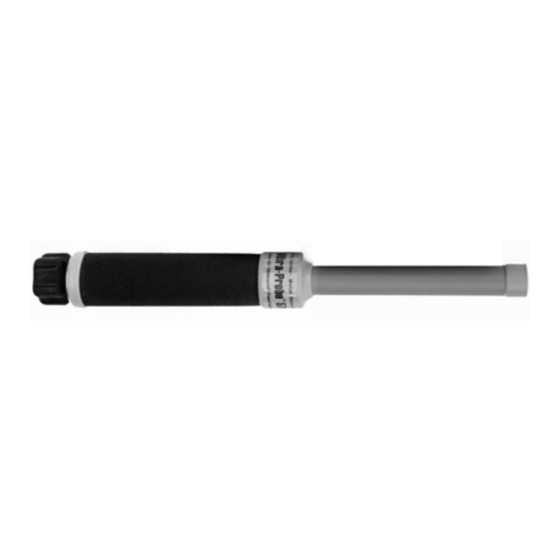

Vibra-Probe 570
Pinpointer Metal Detector
Thank you for choosing the Vibra-Probe 570 Pinpointer
metal detector made by Treasure Products.
The Vibra-Probe 570 Pinpointer metal detector is a minia-
ture version of your primary detector. The modern elec-
tronics and simple to use design makes locating elusive
targets easy in any environment including grass, mud, dirt,
sand, black sand, or even in fresh or salt water.
PRODUCT FEATURES
• Communicates with vibration - The Vibra-Probe sig-
nals with pulses of vibration when a target is located.
• Pulse Induction Technology (PI) - Allows hunting in
salt water or in any type of soil, including black sand.
• Detection depth stability - New advanced circuitry main-
tains detection distance throughout the life of the battery.
• True target direction - The Vibra-Probe detects at the
tip only, not along the shaft, enabling precision target pin-
pointing.
• Target distancing - The pulses of vibration will con-
tinue to increase in quantity as the probe tip gets closer
to the target.
• Automatic tuning - The state of the art microproces-
sor controlled design requires no adjustments of any kind.
• Automatic On/Off - Unit automatically turns on when
pointed upward and automatically turns off one minute
after last pulse.
• Waterproof - Sealed design allows hunting in the rain
or even under water to a depth of 30 feet.
Treasure Products, Inc.
1464 Madera Rd. #N195, Simi Valley, CA 93065
Visit us online at www.treasureproducts.com
Uses one standard 9v battery. To install rotate the rear
knob counter-clockwise a few turns and remove the battery
compartment compression seal.
TM
Connect the battery to the battery clip. Insert the battery
into the detector, clip side first.
Replace seal and hand tighten turning clockwise until snug
to secure in place and assure a watertight seal.
Turn on: Point the tip upward for at least one second.
Two short pulses of vibration indicates the probe is on.
Turn off: Automatically occurs one minute after last pulse.
Turn off is indicated by two long pulses of vibration.
Low battery turn off: When the battery is low the unit will
shut down automatically indicated by four long pulses.
Operation: The Vibra-Probe 570 communicates through
pulses of vibration. These pulses of vibrations increase in
quantity the closer the probes tip is to the target.
The quantity of pulses is proportional to the targets size
and distance. The bigger the size of the target, or the closer
the probes tip is to the target, the higher the pulse count.
The Vibra-Probe 570 detects targets at the tip only, not
along the shaft. This allows you to precisely locate the
target.
Probe the soil forward and back in different locations until
you detect the target. A pulse of vibration signals a target
detection. As you get closer to the target the number of
pulses increases.
Vibra-Phone
Hearing impaired?
Don't like headphones?
Replace sound with vibration.
BATTERY INSTALLATION
Always use high quality batteries
such as alkaline or nickel metal
hydride (NiMH) in this detector.
OPERATING INSTRUCTIONS
Other fine products from Treasure Products, Inc.
280
TM
Vibra-Tector
Pulse Induction Metal Detector
• Signals with vibration and light
• Waterproof - Submersible
• Great for divers!
IMPORTANT NOTES
The probe communicates its proximity to the target only
one time per detection. Move the probe tip slightly away
and then re-approach the target to get the next detection.
As with any new detector you should practice with known
targets to develop your technique.
The Vibra-Probe is a robust unit that allows you to probe
the soil; however, it should not be used as a pry-bar or
digging tool.
False pulses of vibration may occur if the head of your
primary detector is to close to the area you are probing.
HELPFUL HINTS
If your primary detector signals the target is near the sur-
face, probe the surface area before digging. To locate
deeper targets loosen the ground with a suitable digging
tool before using the probe.
When hunting in a lawn, rather then digging a large hole,
insert a screwdriver or similar tool into the ground from
several angles to push the grass and roots aside to form
a slot large enough to insert the probe. Then probe the
sides of the slot to locate the target.
CARE AND MAINTANANCE
Your Vibra-Probe is a sensitive electronic instrument. Al-
though it is built to be rugged, care in transporting and
handling will extend its life and result in optimum operat-
ing performance.
When the Vibra-Probe is in the off position there is no
drain on the battery. However, for very long periods of
storage, we recommend you remove the battery from the
battery compartment to prevent damage to the detector
due to potential battery leak.
Before submerging the Vibra-Probe
make sure the battery compartment
seal is snug and secured in place.
730
TM
E-Z Swing
Arms and shoulders tired from
swinging that heavy detector?
That's why we created the
EZ-SWING Harness.
• Fully adjustable
TM
