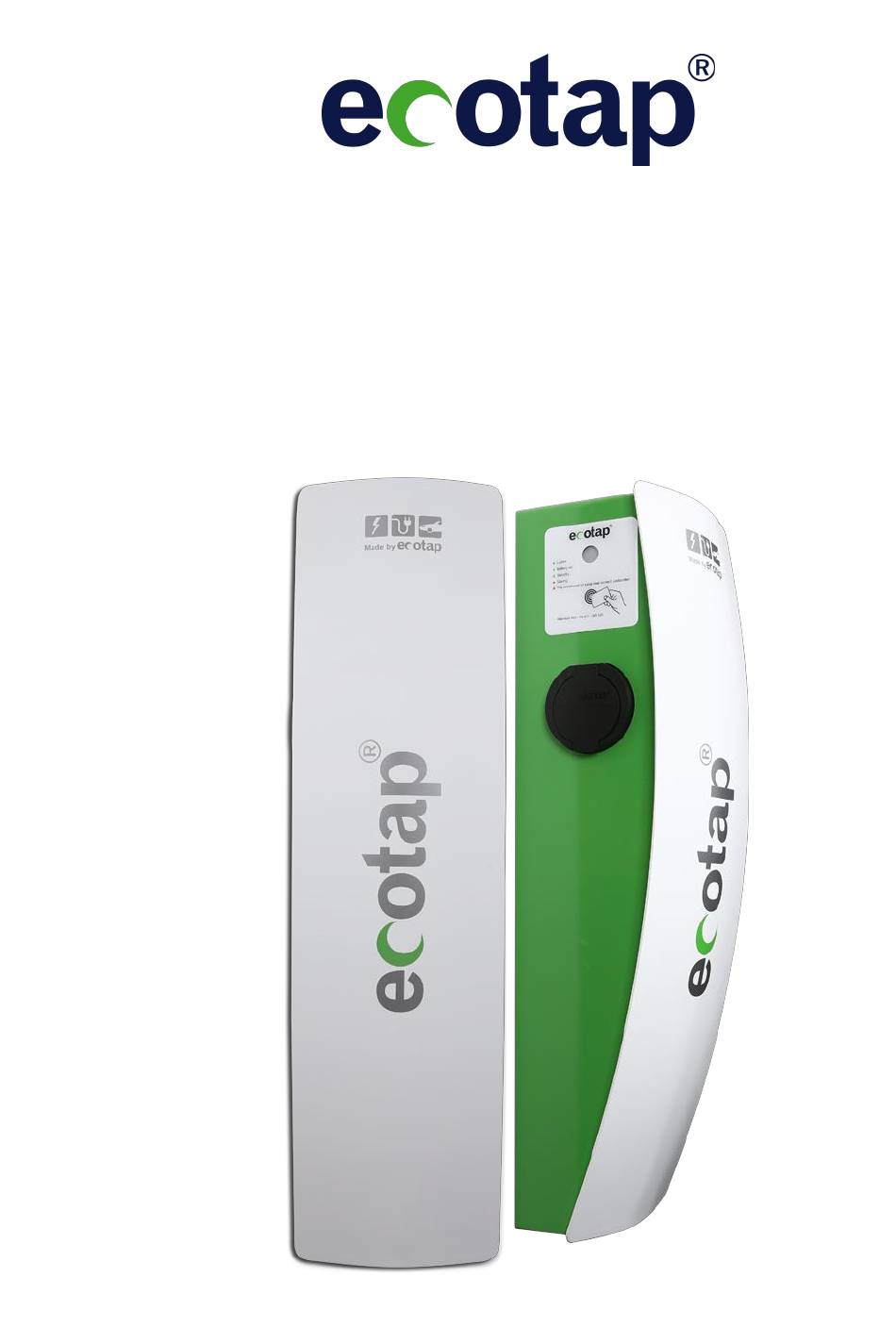

Double Wall Charging Station
Model: WG2
For charging e-vehicles

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WG2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ecotap WG2

  • Page 1 Double Wall Charging Station Model: WG2 For charging e-vehicles...
  • Page 2: Table Of Contents

    MANUAL © 2016 Ecotap® B.V Version 1.02 Table of Contents Introduction ................... 3 General ..................4 2.1 Warranty ....................4 2.2 Symbols in this manual ................4 Description of the device ..............5 3.1 Application ..................... 5 3.2 Accessories ................... 5 3.3 Safety provisions ...................
  • Page 3: Introduction

    Introduction ® Thank you very much for selecting the Ecotap wall-mounted charging station. This manual describes the Wall Charging Station equipped with two type 2 sockets of 22kW each. This manual contains important information for the proper and safe installation and use of this charging station.
  • Page 4: General

    General Warranty ® The Ecotap B.V. General Delivery Conditions apply. ® Ecotap B.V. cannot be held responsible for injury or damages as a result of the charging station being changed, damaged, converted, or expanded with other components, or if it is not being used in accordance with the specified instructions and conditions.
  • Page 5: Description Of The Device

    Description of the device Application The WG2 has been specially designed for wall-mounting. Accessories The following accessories are not included in the scope of delivery: Tools Safety provisions Fuse holder 12 Volt control voltage Components at least IP2 Strain relief...
  • Page 6: Safety

    Safety Read the following safety regulations carefully before installing and using the charging station. Safety regulations Before mounting the charging station, ensure the location is safe for bystanders. NEVER allow children in or near your work area. Please ensure that NO ONE is allowed access to the work area unless they assist in the installation.
  • Page 7: Mandatory Checks Before Use

    Mandatory checks before use The following checks are required to be performed before the charging station is installed and/or used. NEVER use the charging station if, during one or more of these checks, the power supply or stability of the charging station does not comply with safety regulations.
  • Page 8: User Manual / Installation Manual

    Cabling will have to be implemented in accordance with current standards, such as NEN1010. Exceptions to the NEN1010 standard are: Cable thickness deviates* Grounding spread resistor < 30 Ohm. Installation resistor < 1 Ohm. Voltage drop max. 2%. * Please contact Ecotap® B.V. for recommendations concerning cable thickness.
  • Page 9: Wall Installation

    Wall installation We recommend mounting the charging station to the wall at a height of +/- 85 centimetres, measured from the bottom of the charging station. When mounting the charging station, you should take into account the strength of the wall. The wall should be completely closed, without any holes or openings.
  • Page 10 (Drilling template: see image 1.1) Image 1.1...
  • Page 11: Maintenance

    Malfunction explanation If the charging station is not functioning properly, please immediately contact the ® Ecotap helpdesk, available 24/7 at telephone no. 0031 (0) 411 745 020 or contact another certified mechanic with the right measuring and testing equipment with car...
  • Page 12: Operation And Functioning Of The Charging Station

    The charging card/charging key needs to be registered before use. This registration can only be completed during business hours by telephone with ® Ecotap , telephone no. 0031 (0) 411 210 210 As soon as registration has been completed, the charging station can be used with any type of electronic transport charging card (EV charging card/charging key) or another suitable fuel card (other options available).
  • Page 13: Technical Details

    IP 54 Type type 2 in accordance with EN 60529:1992/A1:2000 regulations Ecotap® B.V. reserves the right to change the above technical details as a result of continuing, innovative development of the machine without prior notice. Technical details may differ from one country to another.
  • Page 14: Eg-Declaration Of Conformity

    Station below is in conformity with the requirements for charging systems for electronical transportation and other directives and Standards mentioned hereafter. ® Type: Ecotap Charging Station DUO WG2 Year manufactured: 2016 Applied CE Directives: Low voltage directive 2014/35/EU EMCX directive 2014/30/EU Standards used for reference: •...
