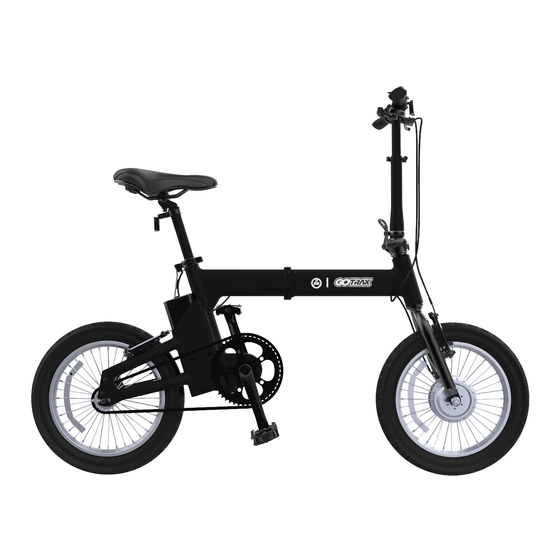

SHIFT S1 E-BIKE
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHIFT S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gotrax SHIFT S1

Summary of Contents for Gotrax SHIFT S1

  • Page 1 SHIFT S1 E-BIKE USER MANUAL...
  • Page 2 CONGRATULATIONS ON YOUR PURCHASE! This user manual will help you assemble and operate your new Shift S1 Electric Bike. Be sure to read ALL OF THE INFORMATION in this manual before riding. NOTE TO ALL RIDERS UNDER 18 YEARS OF AGE: It’s very important that you...
  • Page 3 DON’T RIDE UNTIL YOU READ THIS: ALWAYS wear a helmet when riding your S1 Electric Bike. Make sure your e-bike has a full battery before taking it out to ride. Always be aware of local road laws, and follow them. Do not ride the e-bike under the influence of drugs or alcohol.

  • Page 4: Warning Message

    2. Abuse - We do not cover physical damage due to negligent care and extreme riding. 3. Whenever you ride the Gotrax SHIFT S1 Electric Bike , you risk severe injury or even death from loss of control, collisions, and falls. Use caution and ride at your own risk.
  • Page 5 UNPACK each of these items in your S1 E-Bike box : 1. S1 E-Bike 2. S1 Approved Power Adapter / Charging Unit 3. 1 - 5mm Allen Wrench 4. 1 - 2.5mm Allen Wrench 5. S1 Battery 2 - Pedals 1 - wrench Remove all packing material, then inspect each item for any accidental damage that may have occurred during shipping.
  • Page 6 GET TO KNOW YOUR ELECTRIC BIKE Top Speed: 20 mph Battery Charger: DC 42V 1.5A Distance per Charge: 18 Miles Charge Time: about 5.5 hours Weight Range Up To: 264lbs Motor Power: 250W Battery Type: 36V 7.8AH Power Requirements: AC 100-240V ~ 50/60Hz...
  • Page 7 ASSEMBLE YOUR ELECTRIC BIKE 1. Hold the bike and unfold the front frame. ( insert figure) 2. You will hear a click once the frame is unfolded. Lock the clamp and turn the clamp to the left to tighten. ( insert figure)
  • Page 8 Install the Handlebars Hold the tiller fliplock to the Adjust the brake position upright position to ensure and accelerator position to the tiller is locked into fix them firmly. position.
  • Page 9 Adjust the pedal Flip the pedal 90 degrees parallel to the floor Adjust the Tiller Height Use the 5mm Allen Wrench to loosen the screws and the fixed cover.
  • Page 10 Adjust the Seat Height Loosen the seat post clamp, adjust the seat properly, lock the clamp to tighten the seat in place. Lock the password and remove the battery Take the battery: Loose code lock line: Enter the default password 0000, Enter the default password of 0000, Press the switch button, Press the switch button.
  • Page 11 Install Pedals Use the 15mm spanner to mount the pedals. Notice: Turn the left pedal counterclockwise to tighten; Turn the right pedal clockwise to tighten.
  • Page 12 CHARGE YOUR ELECTRIC BIKE Before using the E-Bike, you must fully charge the battery. Charging port...
  • Page 13 1. Check Battery Level : Press the power display button quickly, The charge position is on the back side of the bike as shown in the picture. 2. Plug the charging cable into the charging hole(make sure the connection is dry). Insert the charging plug into the port. 3.
  • Page 14 HOW TO USE THE BATTERY SAFETY LOCK Step 1- How to reset the anti-theft combination lock 1. Unlock the anti-theft device with default code 0000. 2. Slide the reset button to the above(Set mode). 3. Set a new code by turning the dials (Please shoot a photo to remember the password).
  • Page 15 SCOOTER CONSOLE FUNCTIONS • Main display contents of the instrument: Gear, charge, 3.7Miles boost. • Button function: Power key (S key), shift down key...
  • Page 16 • The function of the - & + buttons • The Shift S1 e-bike has 5gears. Press the s button to go up in gear. Press the - button to go down in gear.

  • Page 17: Riding Tips

    RIDING TIPS 1. You will want to start riding your S1 with one foot on the pedal and one foot on the ground. Use your foot on the ground to push off and at the same time, press the throttle button to begin movement. 2.
  • Page 18 PUTTING YOUR E-BIKE AWAY / FOLDING Before folding the e-bike, make sure that the scooter is powered off. Unfold the clamp on the body of the e-bike and fold the bike in half. Turn the clamp on the tiller of the e-bike upwards and fold the tiller and handlebars down.

  • Page 19: Maintenance And Repair

    Shift S1 Electric Bike, contact our customer service team and we will adjust and repair your e-bike. Do not repair your Shift S1 yourself, this can void your warranty and you risk damaging the e-bike.
  • Page 20 DO NOT use alcohol, gasoline, kerosene, or other corrosive chemical solvents to clean the E-Bike. It can severely damage the appearance and structure of the E-Bike. Please do not use a pressure washer as it may also cause damage to the electronics. Storage: When you’re not using your E-Bike store in a dry and cool location.

  • Page 21: Battery Information

    BATTERY INFORMATION Only use the approved Gotrax power adapter to charge your Shift S1 Electric Bike, others may cause risk of fire & equipment may be damaged. Improper disposal of used batteries may seriously pollute the environment. Please comply with local disposal regulations.

  • Page 22: Troubleshooting

    TROUBLESHOOTING We frequently update our user manuals at GOTRAX.COM , and reserve the rights to update and change manuals online. Please contact our customer service team if you are experiencing problems or need more detailed information. They can be reached at gotrax.com...
  • Page 23 WWW.GOTRAX.COM #RIDEGOTRAX...
  • Page 24 GOLABS, INC GOTRAX.com 2201 Luna Rd. Carrollton, TX 75006...
