1.0 INTRODUCTION Contd...

1.3 G8 module connections

®
The Geosense G8 Module is at the heart of the G8 PLUS, controlling and storing data
from the Data Logging System.
1
4
8

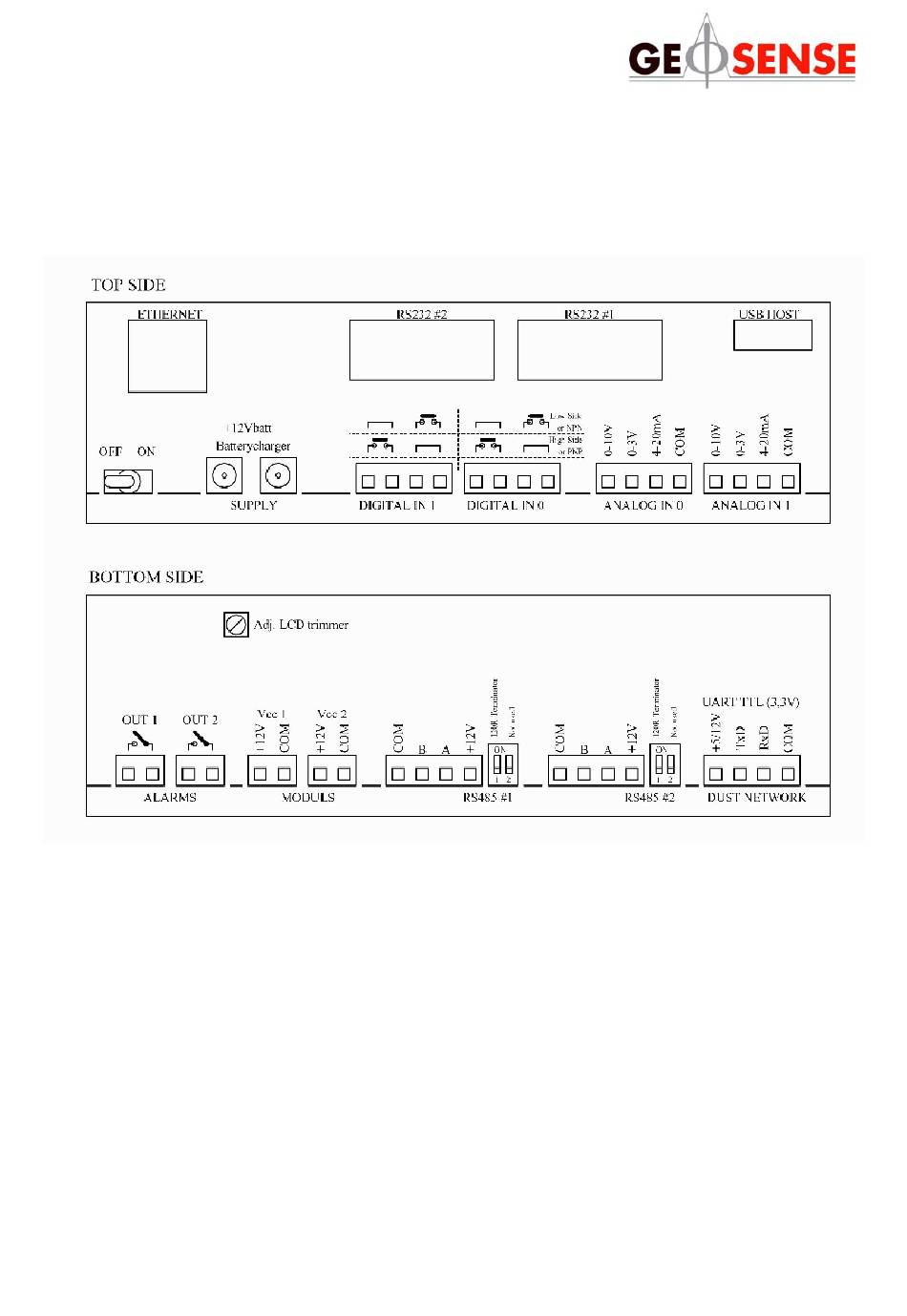

1.3.1 G8 Module
1. Ethernet/LAN connection
2. RS232
3. USB (Data Download & Back Up)
4. ON/OFF
5. 12V Bat Supply & Charger Input
6. Digital Input
7. Analogue Input
5
6
9
8.
9.
10. RS485
11. 120Ω Resistor (On/Off)
12. DUST Network (Radio Module)
3
2
11
10
Alarm (Max 24VAC/DC 3A)
Static Switch (12V 0.3A)
3
7
12
