  • Page 1 V1.0 GEOLOGGER GL101A - V V1.0...
  • Page 2 V1.0 V1.0...
  • Page 3: Table Of Contents

    V1.0 CONTENTS 1.0 INTRODUCTION 1.1 General Description 2.0 CONFORMITY 3.0 MARKINGS 4.0 DELIVERY 4.1 Packaging 4.2 Handling 4.3 Inspection 4.4 Storage 5.0 INSTALLATION 5.1 Connecting the sensors to side connectors 5.2 Connecting the data logger to laptop/PC 5.3 Software 5.4 Using the datalogger software 5.5 Setting up the datalogger - engineering units 5.6 Setting up the datalogger - real time graphing 5.7 Setting up the datalogger - logging without PC/laptop at-...
  • Page 4: Introduction

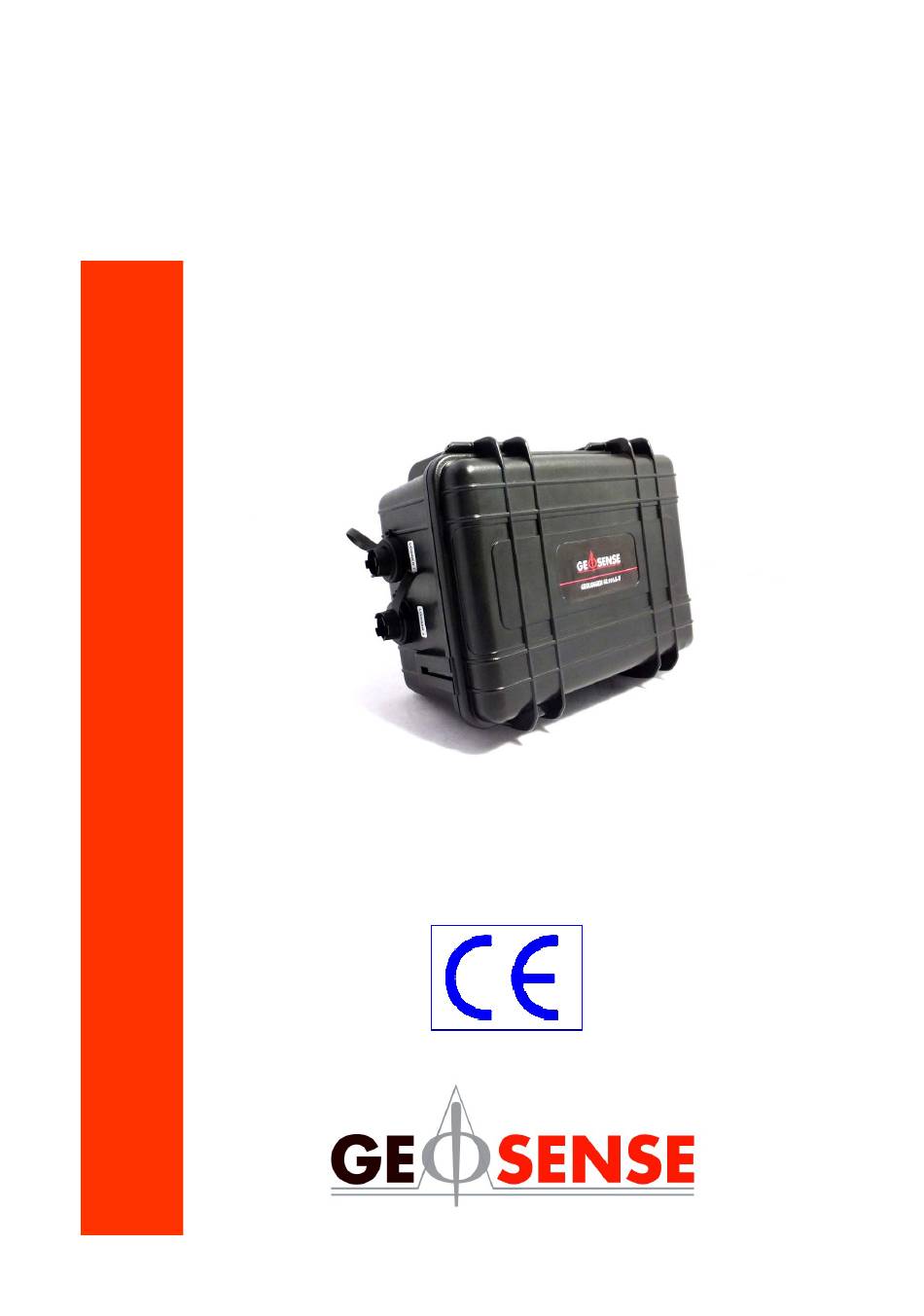

    The box comes fitted with soft foam inserts to protect and store the instruments and logging equipment. ® The Geosense Geologger GL101A-V comes with a lithium ion battery that powers the sensor. It also comes with an integrated battery within the data logger ® Each Geosense Geologger GL101A-V comes with datalogger software, with real time graphing and varying sampling times.
  • Page 5: Conformity

    United Kingdom Tel: +44 (0)1359 270457, Fax: +44 (0)1359 272860 www.geosense.co.uk EC Declaration of Conformity We Geosense Ltd at above address declare that the equipment detailed below, complies with the requirements of the following EU Directives:- • Low Voltage Directive 2006/95/EC •...
  • Page 6: Markings

    V1.0 3.0 Markings ® The Geosense Geologger GL101A-V comes with the following markings. Datalogger Side Sensor Side V1.0...
  • Page 7: Delivery

    V1.0 4.0 DELIVERY ® This section should be read by all users of the Geosense Geologger GL101A-V 4.1 Packaging ® Geosense Geologger GL101A-V are packed for transportation to their desired location. Packaging is suitably robust to allow normal handling by transportation companies.
  • Page 8: Storage

    As with any electrical component medium and long term care fall to preserving the ® electrical parts within the interface. Therefore, the interior of the Geosense Geologger GL101A-V must be protected from the elements and never left exposed to any moisture, therefore the lid must be clipped shut and connector caps screwed tight ®...
  • Page 9: Connecting The Sensors To Side Connectors

    5.3 Software ® Each Geosense Geologger GL101A-V comes with a version of datalogger software held on a memory stick Before connecting the data logger to the laptop or PC simply insert the memory stick into the USB port and install the software 5.4 Using the Data logger software...
  • Page 10: Setting Up The Datalogger - Engineering Units

    V1.0 5.5 Setting up the datalogger - Engineering units Click onto the Engineering units button on the device tab as shown Click add to add a custom unit (eg displacement) Fill in all data: Name Reference unit Destination units: set to custom Description Label Fill in equivalence data:...
  • Page 11: Setting Up The Datalogger - Real Time Graphing

    V1.0 Click on the engineering units tab on the properties window. Tick the “enable engineering units for this device & choose the units previously set up Click apply 5.6 Setting up the datalogger - real time graphing The software provided allows the user to view the data from the datalogger to be view graphically in real time.
  • Page 12 V1.0 Choose a name for each specific log then click The data will be shown graphically as shown (Please note that the data can be viewed many ways go to section X X to see how to change the viewing mode) To stop the realtime recording simply click the stop icon on the device tab 5.7 Setting up the datalogger - logging...
  • Page 13 V1.0 Click the custom start button on the device tab Fill in start and stop method (manual or specific time & date) Fill in reading interval Click start The USB cable can now be removed and the logger will continue logging for the specified time To download the data once the datalogger has finished logging simply connect to the...
  • Page 14: Viewing Data As Numbers (In Software)

    V1.0 The data will be shown graphically as shown (Please note that the data can be viewed many ways go to section X X to see how to change the viewing mode) 5.8 Viewing data as numbers (in software) Click the generate button on the report tab This will product a tab with the date,time delta and unit readings Please note each tab can be saved as a file to...
  • Page 15: Maintenance

    The only maintenance needed is the replacement of the interior batteries. Geosense Geologger GL101A-V has ultra long life lithium batteries these will run out over time if the unit is being used to log real time for extended periods of time. Therefore, if you are experiencing anomalous readings or no readings at all, Geosense should be contacted for a replacement battery.
  • Page 16: Specification

    V1.0 8.0 SPECIFICATION Sensor Battery 3.6V Lithium Ion 13000 mAh Datalogger Battery 3.6V Lithium Ion 750mAh Voltage range -8 - +24V Voltage Resolution 0.5mV Calibrated Accuracy ± 0.05% FSR at 25° C Reading rate 4 readings every second to 1 every 24hrs Memory 1,000,000 readings;...
  • Page 17: Return Of Goods

    In order to make a warranty claim, contact Geosense and request a Returned Equip- ment Report Form QF034. Tick the warranty claim box and return the form with the goods as above.
  • Page 18: Limited Warranty

    Purchaser by the Manufacturer. The Purchaser assumes all risks and liability whatsoever in connection with the ® Geosense Geologger GL101A-V equipment from the time of delivery to Purchaser. V1.0...
  • Page 19 V1.0 NOTES V1.0...
  • Page 20 V1.0 Geosense Ltd Nova House . Rougham Industrial Estate . Rougham . Bury St Edmunds . Suffolk . IP30 9ND . England . Tel: +44 (0) 1359 270457 . Fax: +44 (0) 1359 272860 . email: info@geosense.co.uk . www.geosense.co.uk V1.0...
